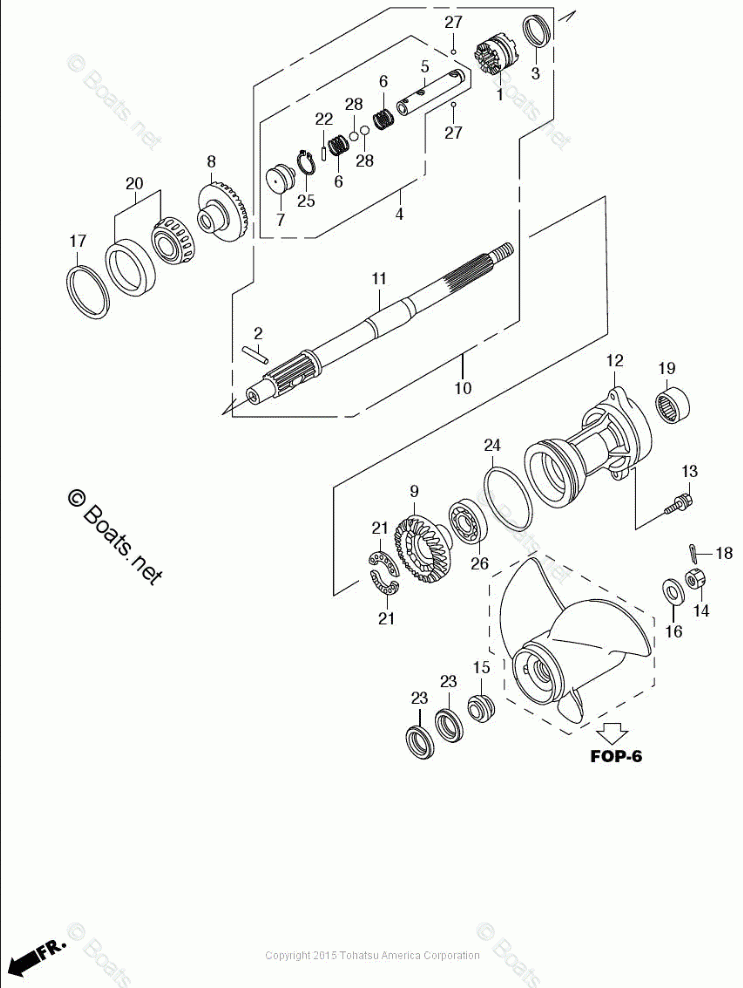

PROPELLER SHAFT (W60A-POWER THRUST MODEL)

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-5-1-25
HCO9451014000
CIRCLIP, EX 14
F-5-1-22
HZW191101003
ROLLER, 3X12.8
F-5-1-11
HZZ341161E00
SHAFT, PROPELLER, BFTW60A
F-5-1-10
HZZ341160E00
SHAFT ASSY, PROPELLER
F-5-1-9
HZZ341151E00
BEVEL GEAR, REVERSE (28T) PWR THRST
F-5-1-8
HZZ341140E00
BEVEL GEAR, FORWARD (28T) PWR THRST
F-5-1-6
HZZ324123E00
SPRING, SHIFT (POWER THRUST)
F-5-1-5
HZZ324122E00
SLIDER, SHIFT (POWER THRUST)
F-5-1-4
HZZ324113E00
SLIDER ASSY, SHIFT
F-5-1-1
HZZ324101E00
SHIFTER, CLUTCH BFW60A
F-5-1-15
HZZ090506C00
WASHER, PROPELLER THRUST
F-5-1-7
HZZ024124000
PLATE, SHIFT
F-5-1-13
HZY690123000
BOLT W/WASHER 10 X 40
F-5-1-21
HZW591054003
BEARING, BALL 28X38X3
F-5-1-24
HZW191351B02
O-RING, 94X4.1
F-5-1-20
HZW191051B02
BEARING, TAPERED ROLLER
F-5-1-26
HCO961006208000
BEARING, RADIAL BALL 6208
F-5-1-18
HZW190758B00
PIN, SPLIT 4.0
F-5-1-17
HZW190531B00
SHIM D, BEVEL FR. (0.50)
F-5-1-17
HZW190530B00
SHIM C, BEVEL FR. (0.30)
F-5-1-17
HZW190529B00
SHIM B, BEVEL FR. (0.15)
F-5-1-17
HZW190528B00
SHIM A, BEVEL FR. (0.10)
F-5-1-16
HZW190508B00
WASHER, PLAIN 18.5MM
F-5-1-14
HZW190301B00
NUT, CASTLE 18MM
F-5-1-12
HZW141201B02ZD
HOUSING, PROP SHAFT (BFTW60/75/90)
F-5-1-3
HZW124103B00
RING, CROSS PIN
F-5-1-2
HZW124102B00
PIN, SHIFTER, 8X47
F-5-1-19
HMY591005601
BEARING, NEEDLE 30X37X26
F-5-1-28
HCO9621111000
BALL, STEEL 11
F-5-1-27
HCO9621107000
BALL, STEEL 7
F-5-1-23
HZZ391252003
SEAL, PROPELLER SHAFT
