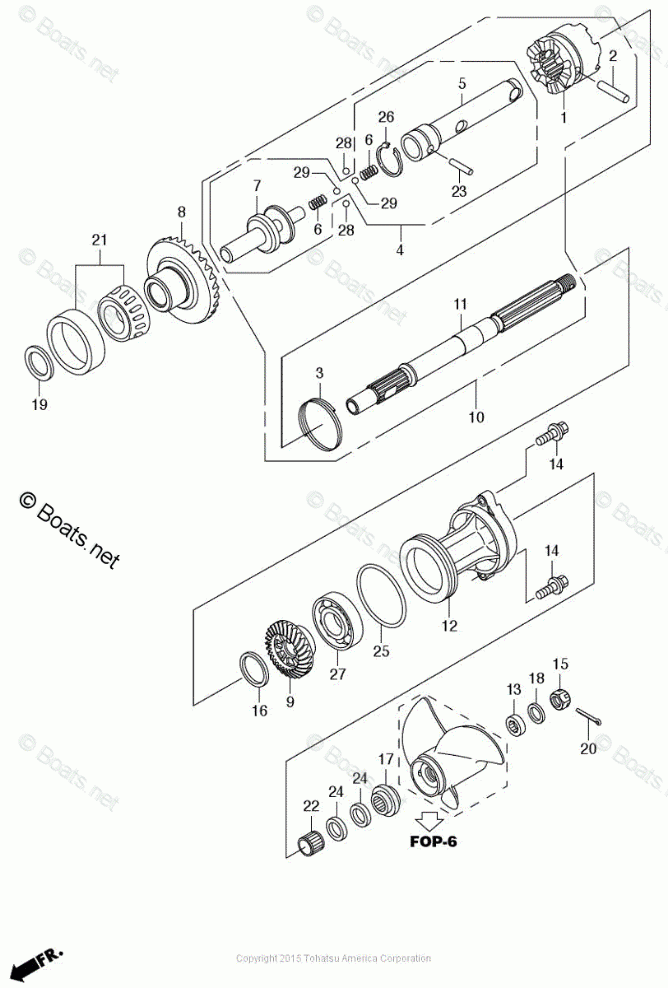

  6. PROPELLER SHAFT (60A-STD. MODEL)

PROPELLER SHAFT (60A-STD. MODEL)

Tohatsu BFTW60A (Power Thrust)
Tohatsu
#oem кодцена
F-5-27
HCO961006007000
BEARING, RADIAL BALL 6007
F-5-24
HZW491252003
SEAL, WATER 22X35X7
F-5-26
HZZ391451000
CIRCLIP, 14MM
F-5-25
HZZ391352000
O-RING, 76.5X3
F-5-12
HZZ341201000ZD
HOUSING, PROP SHAFT (BFT60)
F-5-11
HZZ341161000
SHAFT, PROPELLER, BFT60A (13-SPLINE)
F-5-10
HZZ341160000
SHAFT ASSY, PROPELLER, BFT60A
F-5-9
HZZ341151000
BEVEL GEAR, REVERSE (29T)
F-5-8
HZZ341140000
BEVEL GEAR, FORWARD (29T)
F-5-7
HZZ324124000
PLATE, SHIFT
F-5-6
HZZ324123000
SPRING, SHIFT
F-5-5
HZZ324122000
SLIDER, SHIFT
F-5-4
HZZ324113000
SLIDER ASSY, SHIFT
F-5-1
HZZ324101000
SHIFTER, CLUTCH BFT60A
F-5-14
HZY690105000
BOLT-WASHER, 8X30
F-5-23
HZW191101003
ROLLER, 3X12.8
F-5-28
HCO9621106000
BALL, STEEL 6
F-5-22
HZV591053003
BEARING, NEEDLE 22X28X20
F-5-20
HZV590758000
SPLIT PIN, 4.0
F-5-19
HZV590531000
SHIM, D (51X57X0.50)
F-5-19
HZV590530000
SHIM, C (51X57X0.30)
F-5-19
HZV590529000
SHIM, B (51X57X0.15)
F-5-19
HZV590528000
SHIM, A (51X57X0.10)
F-5-18
HZV590508000
WASHER, 17MM
F-5-17
HZV590506020
WASHER, PROP THRUST
F-5-16
HZV590503000
WASHER, 22MM
F-5-15
HZV590301000
NUT, CASTLE 16MM
F-5-13
HZV558151000
SPACER, 10MM
F-5-3
HZV524103000
RING, CROSS PIN
F-5-2
HZV524102000
PIN, SHIFTER, 6.3 X 33
F-5-29
HCO9621107000
BALL, STEEL 7
F-5-21
HZZ591051003
BEARING, 32X58X17
