Tohatsu BFTW60A (Power Thrust)

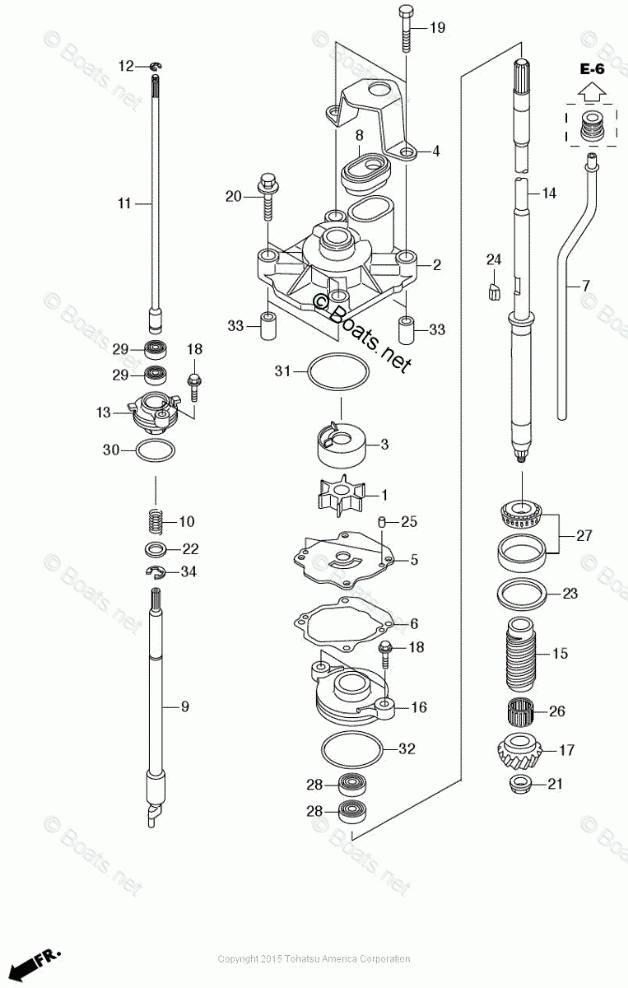

WATER PUMP (60A-STD. MODEL)

#

oem код

название

цена

F-4-22

WASHER, PLAIN 12MM

WASHER, PLAIN 12MM

F-4-33

COLLAR, DISTANCE

COLLAR, DISTANCE

F-4-30

O-RING, 33.7X3.5

O-RING, 33.7X3.5

F-4-28

SEAL, WATER 17X36X6

SEAL, WATER 17X36X6

F-4-26

BEARING, NEEDLE 7/8X1-1/8X1

BEARING, NEEDLE 7/8X1-1/8X1

F-4-17

GEAR, PINION (14T)

GEAR, PINION (14T)

F-4-16

HOUSING, WATER SEAL

HOUSING, WATER SEAL

F-4-14

DRIVE SHAFT (L)

DRIVE SHAFT (L)

F-4-8

RUBBER, WATER TUBE SEAL

RUBBER, WATER TUBE SEAL

F-4-6

GASKET, IMPELLER

GASKET, IMPELLER

F-4-5

COVER, IMPELLER

COVER, IMPELLER

F-4-3

LINER, PUMP

LINER, PUMP

F-4-2

HOUSING, IMPELLER

HOUSING, IMPELLER

F-4-29

SEAL, WATER 12X21X6

SEAL, WATER 12X21X6

F-4-19

BOLT, HEX, 8X40

BOLT, HEX, 8X40

F-4-10

SPRING, SHIFT ROD

SPRING, SHIFT ROD

F-4-18

BOLT, FLANGE, 6X20

BOLT, FLANGE, 6X20

F-4-12

RING, STOPPER

RING, STOPPER

F-4-11

ROD, SHIFT (L)

ROD, SHIFT (L)

F-4-27

BEARING, 25X47X15

BEARING, 25X47X15

F-4-25

DOWEL PIN, 6X10

DOWEL PIN, 6X10

F-4-21

NUT, SPECIAL (12MM)

NUT, SPECIAL (12MM)

F-4-15

SLINGER, OIL

SLINGER, OIL

F-4-1

IMPELLER, WATER PUMP (BFT60A/BFTW60A)

IMPELLER, WATER PUMP (BFT60A/BFTW60A)

F-4-32

O-RING 58.5X3.5

O-RING 58.5X3.5

F-4-34

E RING 10

E RING 10

F-4-31

O-RING, WATER PUMP

O-RING, WATER PUMP
