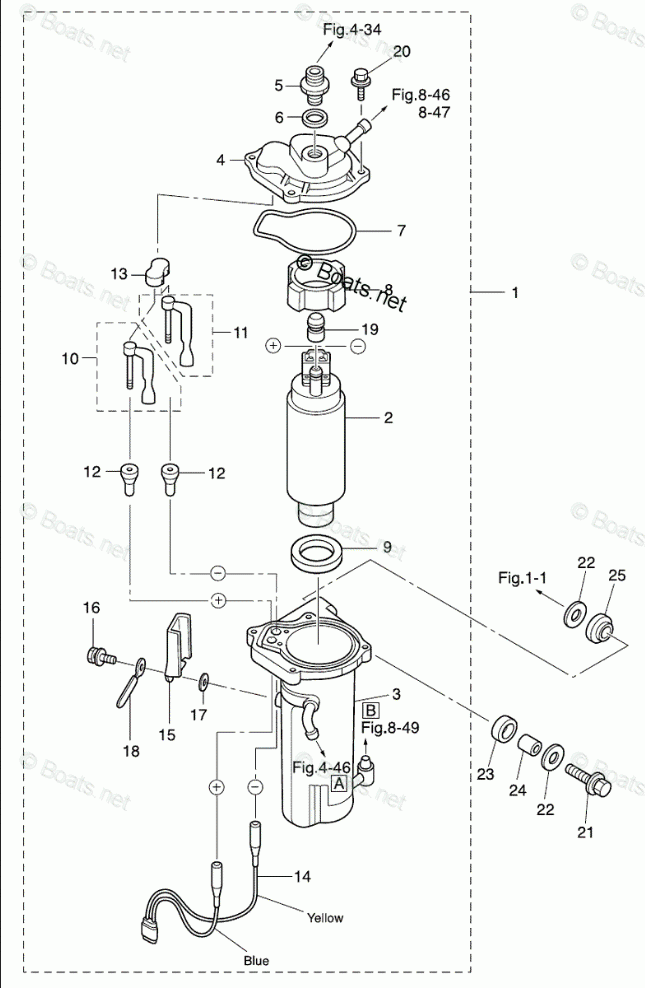

FUEL FEED PUMP

Tohatsu MD75C2

#

oem код

название

цена

1

FUEL FEED PUMP ASSY

FUEL FEED PUMP ASSY

2

FUEL FEED PUMP

FUEL FEED PUMP

3

CASE ASSY

CASE ASSY

4

FFP CASE (UPPER)

FFP CASE (UPPER)

5

HOSE JOINT ADAPTER

HOSE JOINT ADAPTER

6

METAL WASHER 10.2-17-2

METAL WASHER 10.2-17-2

7

O-RING

O-RING

8

FFP GROMMET (UPPER)

FFP GROMMET (UPPER)

9

FFP GROMMET (LOWER)

FFP GROMMET (LOWER)

10

CABLE TERMINAL (POSITIVE)

CABLE TERMINAL (POSITIVE)

11

CABLE TERMINAL (NEGATIVE)

CABLE TERMINAL (NEGATIVE)

12

CABLE TERMINAL GROMMET

CABLE TERMINAL GROMMET

13

CABLE TERMINAL GROMMET (UPPER)

CABLE TERMINAL GROMMET (UPPER)

14

FFP CORD

FFP CORD

15

FFP CORD COVER

FFP CORD COVER

16

BOLT

BOLT

17

WASHER

WASHER

18

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

19

PIPE GROMMET

PIPE GROMMET

20

BOLT

BOLT

21

BOLT

BOLT

22

WASHER 6 -16 -1.5

WASHER 6 -16 -1.5

23

RUBBER MOUNT 8.5 -12 - 2

RUBBER MOUNT 8.5 -12 - 2

24

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

25

RUBBER MOUNT 8.5-18-7

RUBBER MOUNT 8.5-18-7
