Tohatsu MD75C2

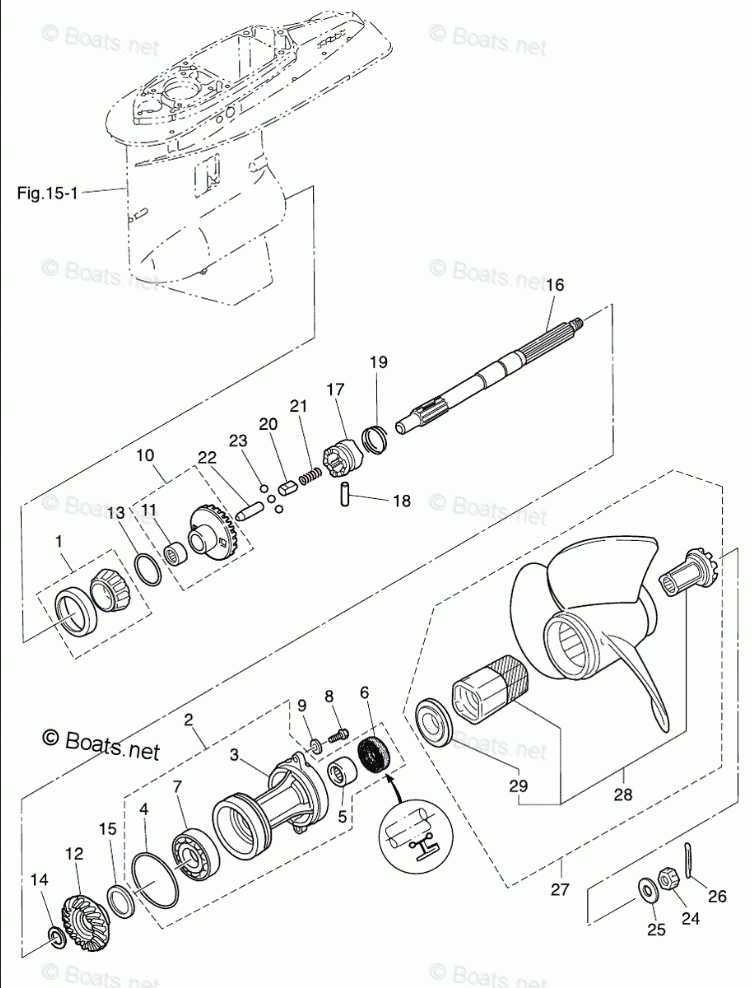

GEAR CASE (PROPELLER SHAFT)

#

oem код

название

цена

1

TAPER ROLLER BEARING 30209

TAPER ROLLER BEARING 30209

2

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

3

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

4

O-RING 3.1-94.4

O-RING 3.1-94.4

5

NEEDLE BEARING 30-40-30

NEEDLE BEARING 30-40-30

6

OIL SEAL 30-50-12

OIL SEAL 30-50-12

7

BEARING 6208

BEARING 6208

8

PRE-COATED BOLT 8-30

PRE-COATED BOLT 8-30

9

WASHER

WASHER

10

BEVEL GEAR ASSY (A)

BEVEL GEAR ASSY (A)

11

NEEDLE BEARING 25-32-26

NEEDLE BEARING 25-32-26

12

BEVEL GEAR C

BEVEL GEAR C

13

SHIM 47-57-0.15

SHIM 47-57-0.15

14

BEVEL GEAR C WASHER

BEVEL GEAR C WASHER

15

SHIM 42-50-0.15

SHIM 42-50-0.15

16

PROPELLER SHAFT

PROPELLER SHAFT

17

CLUTCH

CLUTCH

18

CLUTCH PIN

CLUTCH PIN

19

CLUTCH PIN SNAP

CLUTCH PIN SNAP

20

SPRING RETAINER L=30.5

SPRING RETAINER L=30.5

21

CLUTCH SPRING

CLUTCH SPRING

22

PUSH ROD

PUSH ROD

23

BALL

BALL

24

PROPELLER NUT

PROPELLER NUT

25

WASHER 17-32-3

WASHER 17-32-3

26

SPLIT PIN 3-25

SPLIT PIN 3-25

27

PROPELLER ASSY (11)

PROPELLER ASSY (11)

28

PROPELLER HUB KIT

PROPELLER HUB KIT

29

FORWARD THRUST WASHER

FORWARD THRUST WASHER
