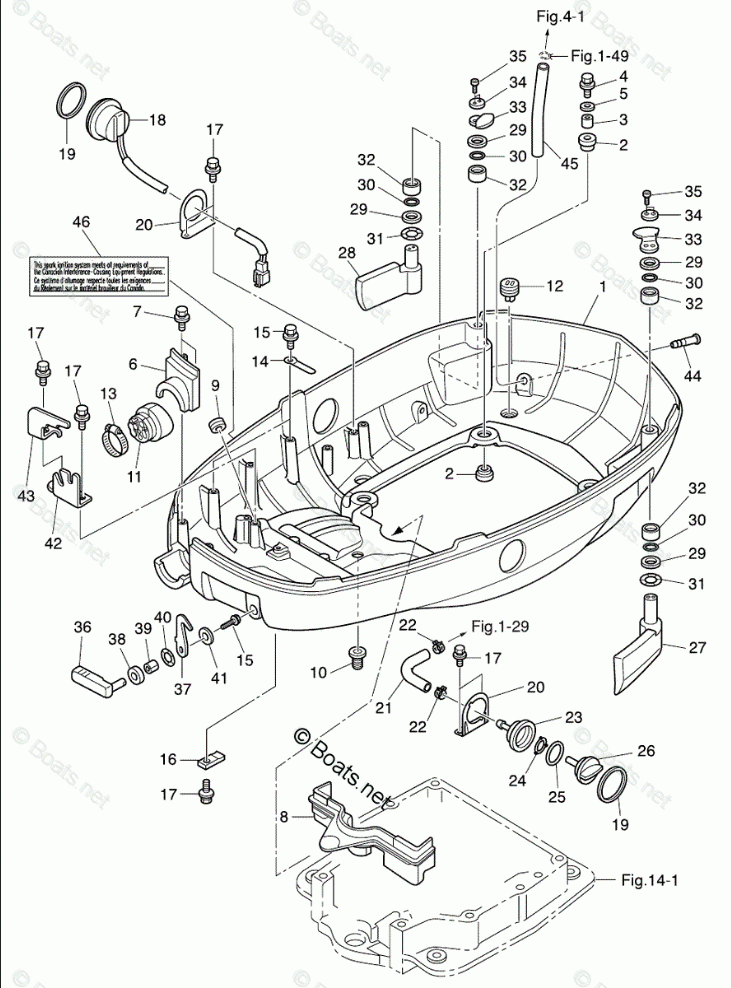

BOTTOM COWL

Tohatsu MD75C2

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

RUBBER MOUNT 12-18-2.5

RUBBER MOUNT 12-18-2.5

3

SPACER 8.4-12-17

SPACER 8.4-12-17

4

BOLT

BOLT

5

WASHER 8.5-24-1.5

WASHER 8.5-24-1.5

6

CLAMP

CLAMP

7

BOLT

BOLT

8

BOTTOM COWL GROMMET A

BOTTOM COWL GROMMET A

9

POWER TRIM & TILT CORD GROMMET

POWER TRIM & TILT CORD GROMMET

10

GROMMET 17 - 3

GROMMET 17 - 3

11

GROMMET

GROMMET

12

GROMMET

GROMMET

13

CLAMP 60

CLAMP 60

14

CLAMP 6.5-67P

CLAMP 6.5-67P

15

BOLT

BOLT

16

POWER TRIM & TILT CORD CLAMP

POWER TRIM & TILT CORD CLAMP

17

BOLT

BOLT

18

PTT SWITCH

PTT SWITCH

19

GASKET PTT SWITCH

GASKET PTT SWITCH

20

PTT SWITCH BRACKET

PTT SWITCH BRACKET

21

FLUSHING HOSE

FLUSHING HOSE

22

CLIP 17.8

CLIP 17.8

23

FLUSHING CONNECTOR

FLUSHING CONNECTOR

24

SEAL RING

SEAL RING

25

O-RING 3.1-24.4

O-RING 3.1-24.4

26

FLUSHING CONNECTOR CAP

FLUSHING CONNECTOR CAP

27

HOOK LEVER (LEFT)

HOOK LEVER (LEFT)

28

HOOK LEVER (RIGHT)

HOOK LEVER (RIGHT)

29

WASHER

WASHER

30

O-RING 4 3.5-18

O-RING 4 3.5-18

31

WAVE WASHER

WAVE WASHER

32

BUSHING 18-24-19

BUSHING 18-24-19

33

COVER HOOK

COVER HOOK

34

WASHER

WASHER

35

BOLT

BOLT

36

HOOK LEVER

HOOK LEVER

37

COVER HOOK

COVER HOOK

38

SEAL RING

SEAL RING

39

HOOK LEVER BUSHING 14-16-1.8

HOOK LEVER BUSHING 14-16-1.8

40

WAVE WASHER D=14

WAVE WASHER D=14

41

WASHER 6-16-1.5

WASHER 6-16-1.5

42

CABLE CLIP

CABLE CLIP

43

CABLE CLIP

CABLE CLIP

44

WATER NIPPLE

WATER NIPPLE

45

HOSE

HOSE

46

INTERFERENCE DECAL

INTERFERENCE DECAL
