BRACKET Каталог оригинальных запчастей для лодочных моторов Tohatsu MD75C2 (2014)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

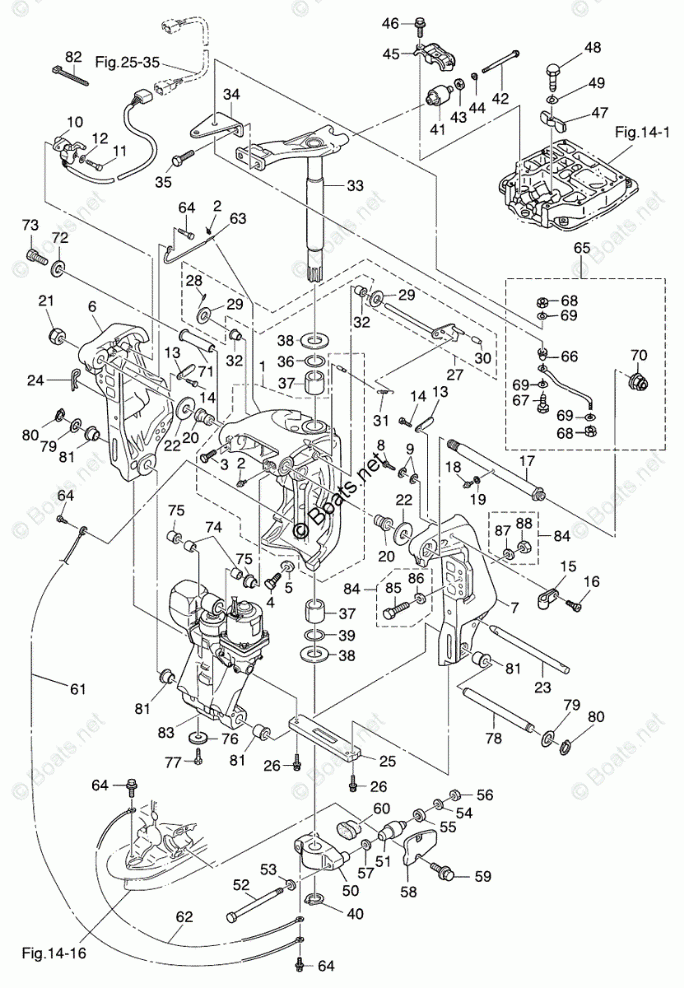

BRACKET

Tohatsu MD75C2

BRACKET

#

oem код

название

цена

1

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

2

GREASE FITTING

GREASE FITTING

3

BOLT

BOLT

4

BOLT 12-20 P-1.75

BOLT 12-20 P-1.75

5

WASHER

WASHER

6

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

7

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

8

BOLT

BOLT

9

WASHER

WASHER

10

TRIM SENSOR

TRIM SENSOR

11

BOLT

BOLT

12

WASHER 6-16-1.5

WASHER 6-16-1.5

13

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

14

BOLT

BOLT

15

CLAMP 6.5-14L

CLAMP 6.5-14L

16

SCREW

SCREW

17

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

18

GREASE FITTING

GREASE FITTING

19

WASHER

WASHER

20

BUSHING 25.6-28.6-40

BUSHING 25.6-28.6-40

21

NYLON NUT 7/8

NYLON NUT 7/8

22

WASHER 25.7-50-1

WASHER 25.7-50-1

23

THRUST ROD

THRUST ROD

24

R-PIN D=10

R-PIN D=10

25

ANODE

ANODE

26

BOLT

BOLT

27

TILT STOPPER ASSY

TILT STOPPER ASSY

28

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

29

WASHER 10.5-18-2

WASHER 10.5-18-2

30

TILT STOPPER GRIP

TILT STOPPER GRIP

31

SPRING TILT STOPPER

SPRING TILT STOPPER

32

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

33

STEERING SHAFT ASSY

STEERING SHAFT ASSY

34

STEERING HOOK PLATE

STEERING HOOK PLATE

35

BOLT

BOLT

36

STEERING SHAFT SEAL RING

STEERING SHAFT SEAL RING

37

BUSHING 32-40-45

BUSHING 32-40-45

38

THRUST PLATE (UPPER)

THRUST PLATE (UPPER)

39

O-RING 4.5-32

O-RING 4.5-32

40

C-RING D=32

C-RING D=32

41

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

42

BOLT 7/16-115

BOLT 7/16-115

43

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

44

WASHER 11.5-32-3

WASHER 11.5-32-3

45

MOUNT HOLDING PLATE (UPPER)

MOUNT HOLDING PLATE (UPPER)

46

BOLT

BOLT

47

DAMPER (UPPER)

DAMPER (UPPER)

48

BOLT (OR 910113-0625)

BOLT (OR 910113-0625)

49

WASHER 6 -16 -1.5

WASHER 6 -16 -1.5

50

MOUNT BRACKET

MOUNT BRACKET

51

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

52

RUBBER MOUNT BOLT (LOWER)

RUBBER MOUNT BOLT (LOWER)

53

WASHER 12.2-25-2

WASHER 12.2-25-2

54

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

55

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

56

NUT 12-P1.5

NUT 12-P1.5

57

WASHER

WASHER

58

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

59

BOLT 8-25

BOLT 8-25

60

RUBBER DAMPER (LOWER)

RUBBER DAMPER (LOWER)

61

GROUND CABLE

GROUND CABLE

62

GROUNG CABLE

GROUNG CABLE

63

GROUND CABLE

GROUND CABLE

64

BOLT

BOLT

65

DRAG LINK ASSY

DRAG LINK ASSY

66

SPACER

SPACER

67

BOLT 3/8 - 50

BOLT 3/8 - 50

68

NYLON NUT 3/8

NYLON NUT 3/8

69

WASHER 9.6-18-2

WASHER 9.6-18-2

70

DRAG LINK SEAL RING

DRAG LINK SEAL RING

71

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

72

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

73

BOLT

BOLT

74

BUSHING 18-24-19

BUSHING 18-24-19

75

BUSHING 18-20-20.5

BUSHING 18-20-20.5

76

ANODE

ANODE

77

BOLT

BOLT

78

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

79

WASHER 22.6-30-2

WASHER 22.6-30-2

80

C-RING D=22

C-RING D=22

81

BUSHING 22-25.4-23.5

BUSHING 22-25.4-23.5

82

LEAD WIRD BAND 104

LEAD WIRD BAND 104

83

POWER TRIM & TILT

POWER TRIM & TILT

84

RIGGING BOLT SET

RIGGING BOLT SET

85

BOLT 12P 1.25 - L105

BOLT 12P 1.25 - L105

86

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

87

WASHER

WASHER

88

NUT P1.25

NUT P1.25
