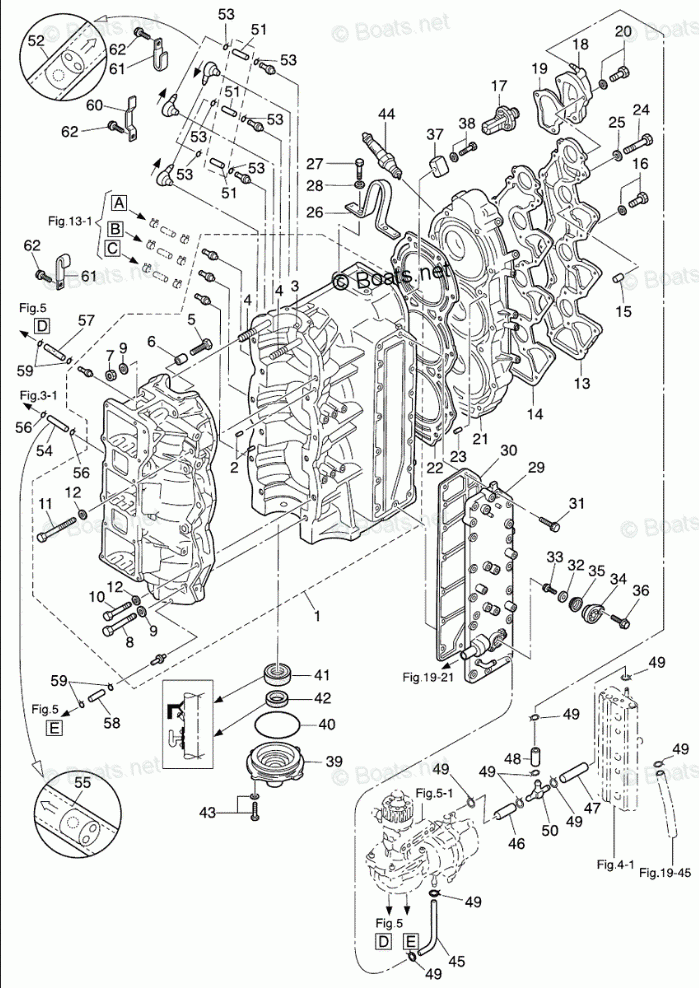

CYLINDER & CRANK CASE

Tohatsu MD75C2
Tohatsu
#oem кодцена
1
3FWB011001
CYL BLOCK & CRANKCASE ASSY
2
345011110
DOWEL PIN 6-12
3
3T9001170
MAIN BEARING DOWEL PIN
4
9153241065
STUD BOLT
5
9101030618
BOLT
6
353760790
COLLAR 6.2 - 9 - 9.3
7
9311211000
NUT 10-P 1.25
8
9161291065
BOLT
9
3B7011160
WASHER 10.5-20-3.2
10
9161240850
BOLT
11
9161240865
BOLT
12
345010150
WASHER 8.5-19.5-3.2
13
3T9B010210
CYLINDER HEAD COVER
14
3T9010240
CYLINDER HEAD COVER GASKET
15
334650120
KNOCK 4 -10
16
9101035625
BOLT
17
3C7010300
THERMOSTAT
18
3T9B010600
THERMOSTAT CAP
19
3T9010321
THERMOSTAT CAP GASKET
20
9101E35640
BOLT
21
3FWB010910
CYLINDER HEAD
22
3T9010050
CYLINDER HEAD GASKET
23
334650120
KNOCK 4 -10
24
9161290875
BOLT
25
345010150
WASHER 8.5-19.5-3.2
26
3C7015132
HANGER
27
9101140820
BOLT
28
9401030800
WASHER
29
3FWB023000
EXHAUST COVER ASSY
30
3FW023050
EXHAUST COVER GASKET
31
9101E35625
BOLT
32
369602181
ANODE
33
9101030616
BOLT
34
3FW011430
ANODE PLUG
35
3FW011460
SEAL RING
36
9101035620
BOLT
37
3B7602181
ANODE
38
9101035630
BOLT
39
3B7012912
CRANKCASE HEAD
40
171000530
O-RING 2-74.5
41
3T9001210
OIL SEAL 35-58-9
42
3C7012150
OIL SEAL 19.6-35-10
43
9101035620
BOLT
44
970111111
SPARK PLUG (IZFR6Q)
45
98AB50780
HOSE
46
98AB50065
HOSE
47
98AB50065
HOSE
48
98AB50115
HOSE
49
338022150
CLIP 10
50
3T7011750
T-NIPPLE (WITH VALVE)
51
98AL40185
HOSE
52
393011600
LINE CHECK VALVE
53
338011330
CLIP 7
54
98AL40240
HOSE
55
393011600
LINE CHECK VALVE
56
338011330
CLIP 7
57
99AA20320
PIPE
58
99AA20590
PIPE
59
3B7090520
CLIP 6.9
60
3FW069720
CLAMP
61
3FY069720
CLAMP
62
9101035612
BOLT
