PISTON & CRANK SHAFT
PISTON & CRANK SHAFT

PISTON & CRANK SHAFT

Tohatsu MD115A2

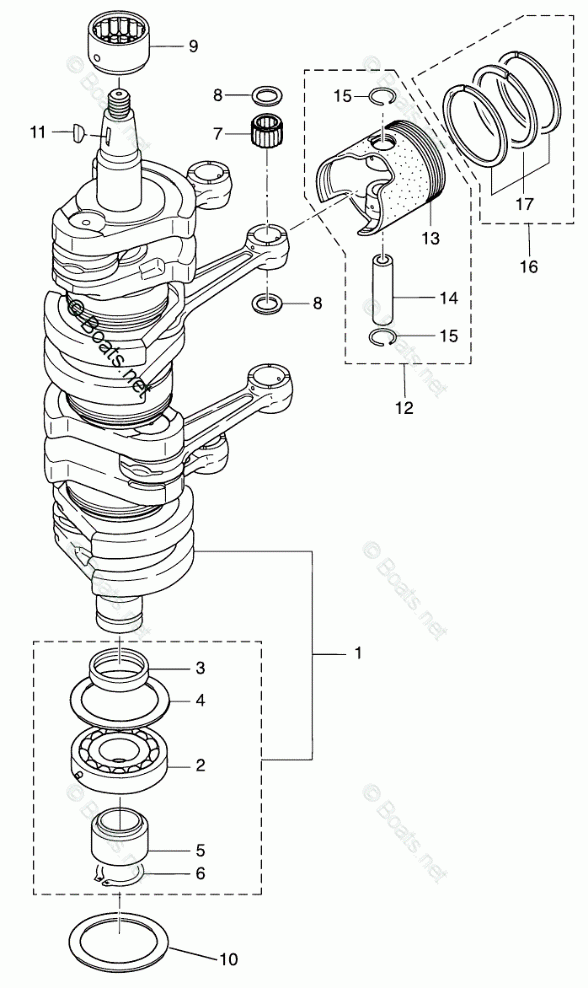

PISTON & CRANK SHAFT

#

oem код

название

цена

1

CRANK SHAFT ASSY

CRANK SHAFT ASSY

2

BALL BEARING 6208

BALL BEARING 6208

3

SPACER 40-52-7

SPACER 40-52-7

4

WASHER 66-85-2

WASHER 66-85-2

5

SPACER 35-48.6-16

SPACER 35-48.6-16

6

C-RING D=35

C-RING D=35

7

NEEDLE BEARING 23-28-28

NEEDLE BEARING 23-28-28

8

SMALL END BEARING WASHER

SMALL END BEARING WASHER

9

MAIN BEARING (UPPER)

MAIN BEARING (UPPER)

10

WASHER 66-85-2

WASHER 66-85-2

11

KEY MAGNETO

KEY MAGNETO

12

PISTON REPAIR KIT

PISTON REPAIR KIT

13

PISTON (STD)

PISTON (STD)

14

PISTON PIN 23

PISTON PIN 23

15

PISTON PIN CLIP

PISTON PIN CLIP

16

PISTON RING SET

PISTON RING SET

17

PISTON RING 1ST ( STD )

PISTON RING 1ST ( STD )
