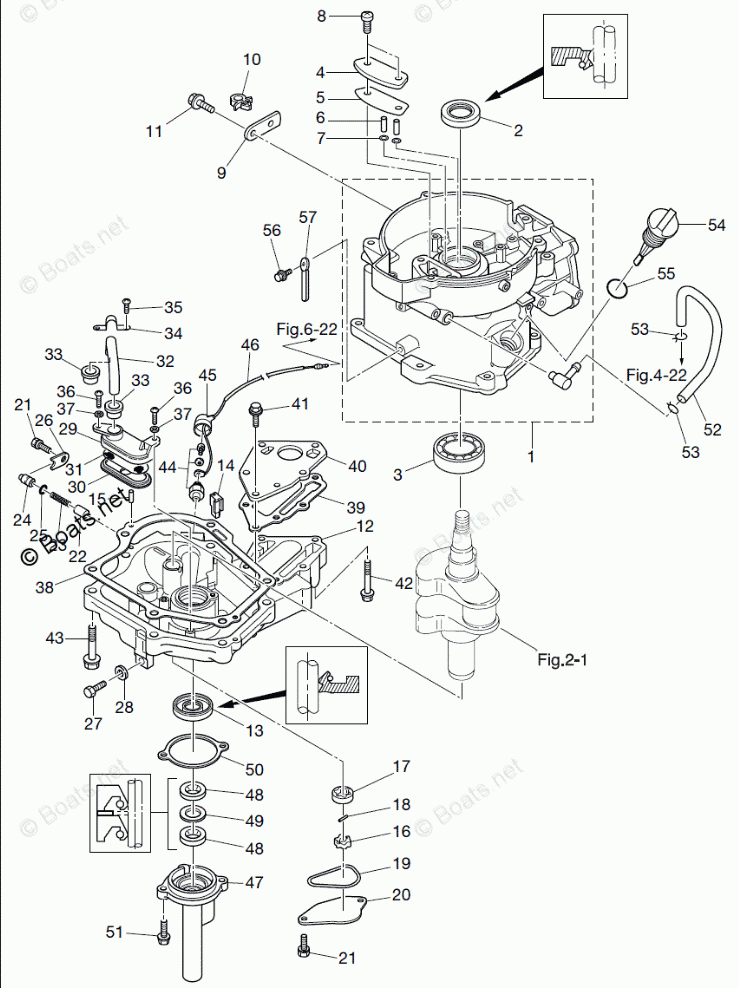

CYLINDER + OIL PAN

Tohatsu MFS5C
Tohatsu
#oem кодцена
1
3GRB011841
CYLINDER BLOCK (SERVICE)
2
101001210
OIL SEAL 20-35-7
3
960136205
BALL BEARING 6205
4
3ASB074310
BREATHER CHAMBER COVER
5
3AS074320
BREATHER CHAMBER COVER GASKET
6
3R1074390
BREATHER COLLAR
7
9414030500
WAVE WASHER D=5
8
9215216616
SCREW
9
3GR635050
CABLE HOLDER
10
3GR069730
CLAMP 6-9.5L
11
9101035612
BOLT
12
3AS077090
OILPAN SUB-ASSY
13
3GR001220
OIL SEAL 25-40-8
14
3H6074040
OIL PAN GROMMET
15
345011110
DOWEL PIN 6-12
16
3H6076010
OIL PUMP ROTOR (INNER)
17
3H6076020
OIL PUMP ROTOR (OUTER)
18
3H6076030
OIL PUMP PIN
19
3R1076050
OIL PUMP O-RING ( 3.1)
20
3H6076060
OIL PUMP COVER
21
9101216616
BOLT
22
3H6076210
PLUNGER CONTROL
23
3H6076220
PRESSURE SPRING
24
3H6076230
SPRING SEAT
25
345660210
O-RING 1.9-6.8
26
3H6671150
PLUNGER COVER
27
3H6077051
DRAIN BOLT 10-14 P1.25
28
3H6074060
WASHER 10.2-19-1
29
3H6074110
STRAINER BODY
30
3H6074120
STRAINER CAP
31
3H6074130
STRAINER MESH
32
3H6074150
STRAINER PIPE
33
3H6074160
STRAINER SEAL
34
3H6074170
STRAINER STOPPER
35
9215216512
SCREW
36
3C8024200
BOLT 5-16 PRE-COATED
37
9401210500
WASHER
38
3H6074020
OIL PAN GASKET
39
3H6023050
EXHAUST COVER GASKET (INNER)
40
3H6023021
EXHAUST COVER (INNER)
41
9101F45620
BOLT
42
9101F45640
BOLT
43
9101245840
BOLT
44
3H6076110
OIL PRESSURE SWITCH
45
3H6076120
GROMMET OIL PRESSURE SWITCH
46
3GR076130
OIL PRESSURE SWITCH LEAD WIRE L=240
47
369012104
CRANK CASE HEAD
48
3GR012150
OIL SEAL 10.1-25-7
49
369012170
SPACER 19-24.8-1
50
369012140
CRANK CASE HEAD GASKET
51
9101035620
BOLT
52
3R1074350
BREATHER HOSE
53
3C7022150
CLIP 12
54
3H6074210
OIL LEVEL GAUGE
55
3H6074220
O-RING 2.62-18.72
56
9101035612
BOLT
57
309069720
CLAMP 6.5-47.5P
