BRACKET (EP MODEL)

BRACKET (EP MODEL)

Tohatsu MFS8A3

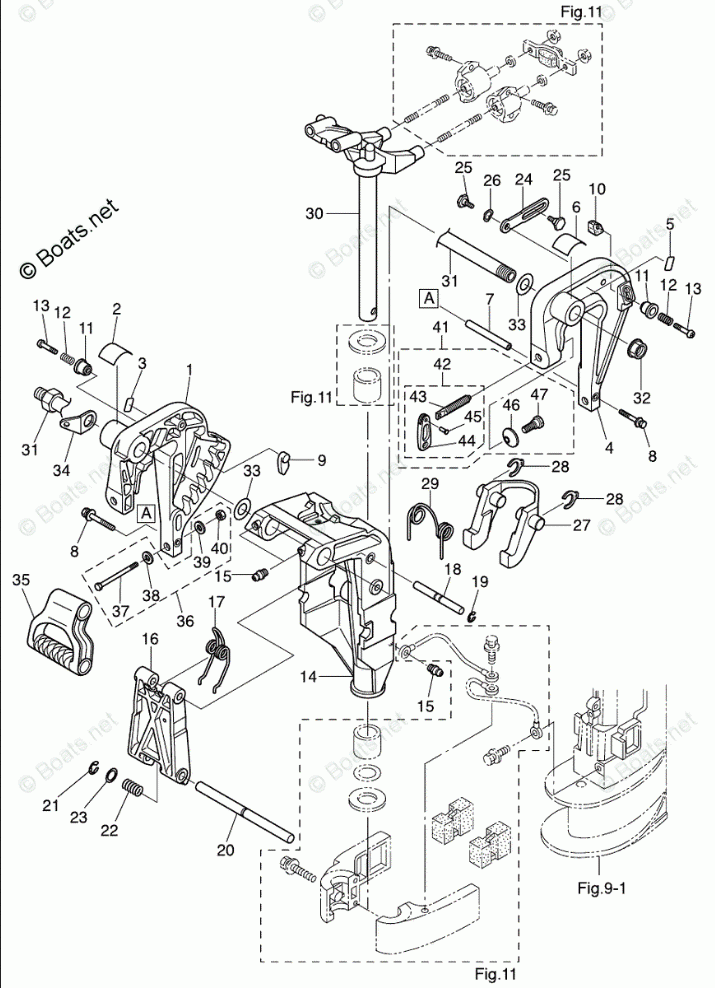

BRACKET (EP MODEL)

#

oem код

название

цена

1

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

2

TRIM POSITION DECAL

TRIM POSITION DECAL

3

LOWER TILT LIMIT DECAL

LOWER TILT LIMIT DECAL

4

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

5

TILT LOCK DECAL

TILT LOCK DECAL

6

CO-PILOT DECAL

CO-PILOT DECAL

7

DISTANCE PIECE

DISTANCE PIECE

8

BOLT

BOLT

9

TRIM SETTING PLATE

TRIM SETTING PLATE

10

TILT LOCK PIECE

TILT LOCK PIECE

11

KNOB

KNOB

12

TILT LOCK KNOB SPRING

TILT LOCK KNOB SPRING

13

SCREW

SCREW

14

SWIVEL BRACKET

SWIVEL BRACKET

15

GREASE FITTING

GREASE FITTING

16

TILT STOPPER BODY

TILT STOPPER BODY

17

SPRING

SPRING

18

TILT STOPPER SHAFT (UPPER)

TILT STOPPER SHAFT (UPPER)

19

E-RING D=6

E-RING D=6

20

TILT STOPPER SHAFT (LOWER)

TILT STOPPER SHAFT (LOWER)

21

E-RING D=9

E-RING D=9

22

SPRING

SPRING

23

WASHER 10.5-18-1.5

WASHER 10.5-18-1.5

24

TILT STOPPER

TILT STOPPER

25

BOLT

BOLT

26

WAVE WASHER D=10

WAVE WASHER D=10

27

REVERSE LOCK

REVERSE LOCK

28

REVERSE LOCK CLIP

REVERSE LOCK CLIP

29

REVERSE LOCK SPRING

REVERSE LOCK SPRING

30

STEERING SHAFT

STEERING SHAFT

31

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

32

NYLON NUT 7/8

NYLON NUT 7/8

33

WASHER 22-36-1

WASHER 22-36-1

34

PLATE

PLATE

35

CARRYING HANDLE

CARRYING HANDLE

36

RIGGING BOLT SET

RIGGING BOLT SET

37

BOLT

BOLT

38

WASHER

WASHER

39

WASHER 8.5-34-3

WASHER 8.5-34-3

40

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

41

CLAMP SCREW KIT

CLAMP SCREW KIT

42

CLAMP SCREW ASSY

CLAMP SCREW ASSY

43

CLAMP SCREW

CLAMP SCREW

44

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

45

RIVET 3-22

RIVET 3-22

46

CLAMP SCREW PAD

CLAMP SCREW PAD

47

SHOULDER BOLT

SHOULDER BOLT
