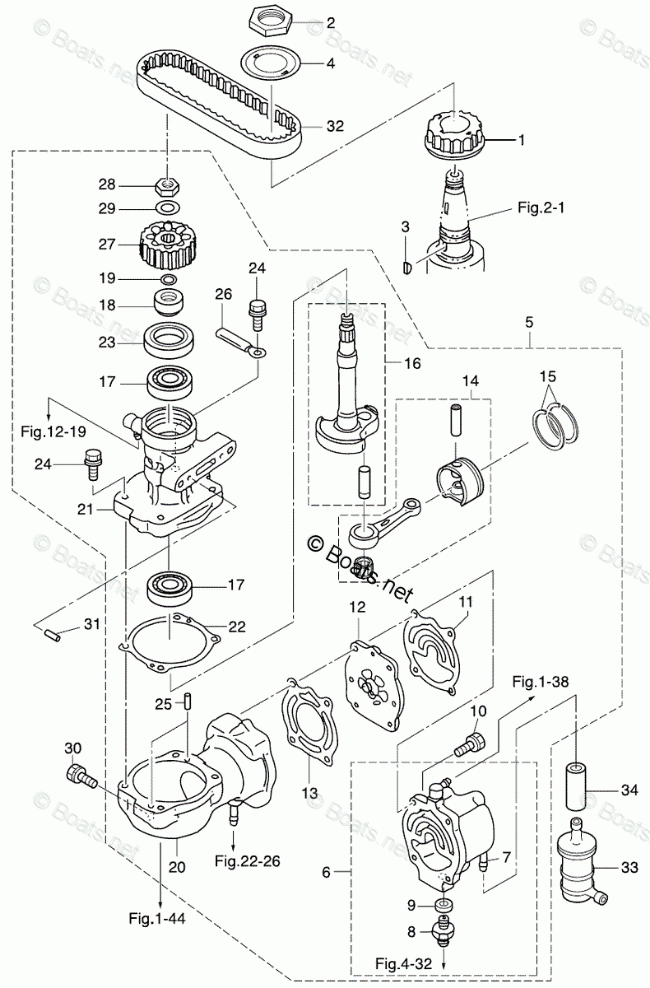

AIR COMPRESSOR

Tohatsu MD40B2

AIR COMPRESSOR

#

oem код

название

цена

1

DRIVE PULLEY

DRIVE PULLEY

2

NUT

NUT

3

KEY

KEY

4

BELT GUIDE

BELT GUIDE

5

AIR COMPRESSOR ASSY

AIR COMPRESSOR ASSY

6

COMPRESSOR HEAD ASSY

COMPRESSOR HEAD ASSY

7

NIPPLE

NIPPLE

8

HOSE JOINT ADAPTER

HOSE JOINT ADAPTER

9

METAL WASHER 10.2-17-2

METAL WASHER 10.2-17-2

10

BOLT

BOLT

11

GASKET COMPRESSOR HEAD

GASKET COMPRESSOR HEAD

12

REED VALVE ASSY

REED VALVE ASSY

13

VAVLE SEAT GASKET

VAVLE SEAT GASKET

14

PISTON & CONNECTING ROD ASSY

PISTON & CONNECTING ROD ASSY

15

PISTON RING

PISTON RING

16

COMPRESSOR CRANKSHAFT ASSY

COMPRESSOR CRANKSHAFT ASSY

17

BEARING 6203

BEARING 6203

18

COLLAR 13.5-25-13

COLLAR 13.5-25-13

19

O-RING 13-1.9

O-RING 13-1.9

20

AIR COMPRESSOR CYLINDER ASSY

AIR COMPRESSOR CYLINDER ASSY

21

COMPRESSOR HOUSING

COMPRESSOR HOUSING

22

COMPRESSOR HOUSING GASKET

COMPRESSOR HOUSING GASKET

23

OIL SEAL 25-45-7

OIL SEAL 25-45-7

24

BOLT

BOLT

25

KNOCK 4 -10

KNOCK 4 -10

26

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

27

DRIVEN PULLEY

DRIVEN PULLEY

28

MAGNETO NUT (10P-1.25)

MAGNETO NUT (10P-1.25)

29

WASHER 10.5-20-3.2

WASHER 10.5-20-3.2

30

BOLT

BOLT

31

KNOCK 4 -10

KNOCK 4 -10

32

DRIVE BELT

DRIVE BELT

33

AIR FILTER ASSY

AIR FILTER ASSY

34

HOSE

HOSE
