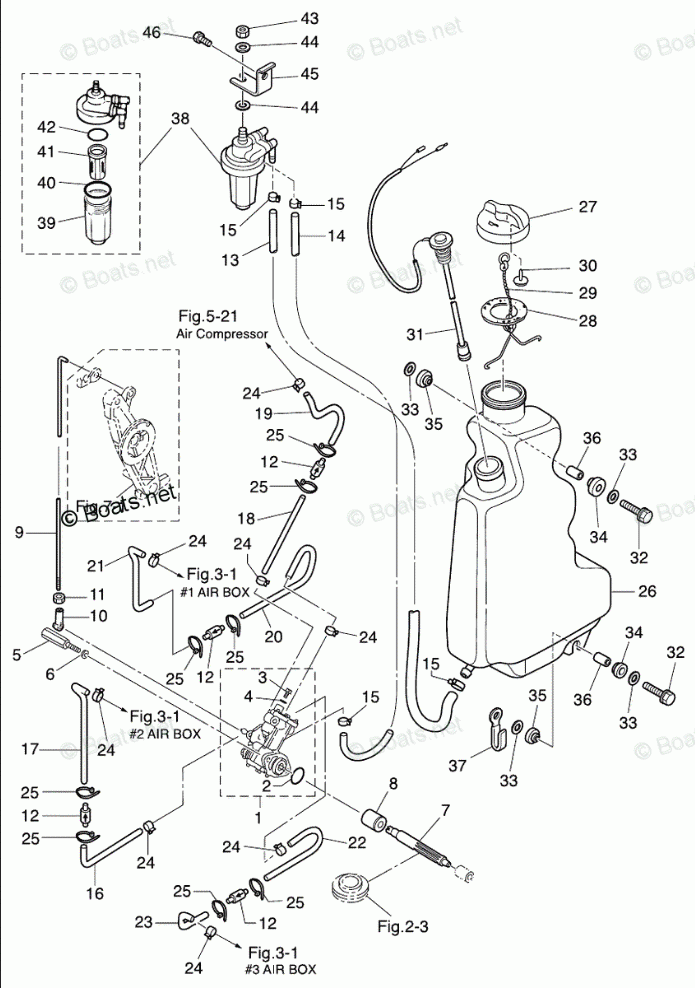

МАСЛЯНЫЙ НАСОС
МАСЛЯНЫЙ НАСОС

МАСЛЯНЫЙ НАСОС

Tohatsu MD40B2

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1

OIL PUMP

OIL PUMP

2

O-RING 1.6-19.2

O-RING 1.6-19.2

3

AIR VENT BOLT

AIR VENT BOLT

4

WASHER

WASHER

5

OIL PUMP BOLT

OIL PUMP BOLT

6

SPRING WASHER

SPRING WASHER

7

OIL PUMP DRIVEN GEAR

OIL PUMP DRIVEN GEAR

8

BUSHING 9-20-20.8

BUSHING 9-20-20.8

9

OIL PUMP ROD

OIL PUMP ROD

10

BALL JOINT CONNECTOR

BALL JOINT CONNECTOR

11

NUT

NUT

12

CHECK VALVE

CHECK VALVE

13

OIL PIPE A

OIL PIPE A

14

OIL PIPE B

OIL PIPE B

15

CLIP 9.5

CLIP 9.5

16

OIL PIPE G

OIL PIPE G

17

OIL PIPE F

OIL PIPE F

18

OIL PIPE I

OIL PIPE I

19

OIL PIPE J

OIL PIPE J

20

OIL PIPE F

OIL PIPE F

21

OIL PIPE G

OIL PIPE G

22

OIL PIPE G

OIL PIPE G

23

OIL PIPE H

OIL PIPE H

24

CLIP 6.9

CLIP 6.9

25

LEAD WIRD BAND 104

LEAD WIRD BAND 104

26

OIL TANK

OIL TANK

27

OIL TANK CAP

OIL TANK CAP

28

GASKET 36-52-2

GASKET 36-52-2

29

TANK CAP HOOK

TANK CAP HOOK

30

TANK CAP CHECK VALVE

TANK CAP CHECK VALVE

31

OIL LEVEL SENSOR

OIL LEVEL SENSOR

32

BOLT

BOLT

33

WASHER 6.5-21-1

WASHER 6.5-21-1

34

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

35

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

36

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

37

CLAMP 6.5-87P

CLAMP 6.5-87P

38

OIL FILTER

OIL FILTER

39

CUP

CUP

40

O-RING A

O-RING A

41

FILTER

FILTER

42

O-RING B

O-RING B

43

NUT

NUT

44

WASHER

WASHER

45

FILTER PLATE

FILTER PLATE

46

BOLT

BOLT
