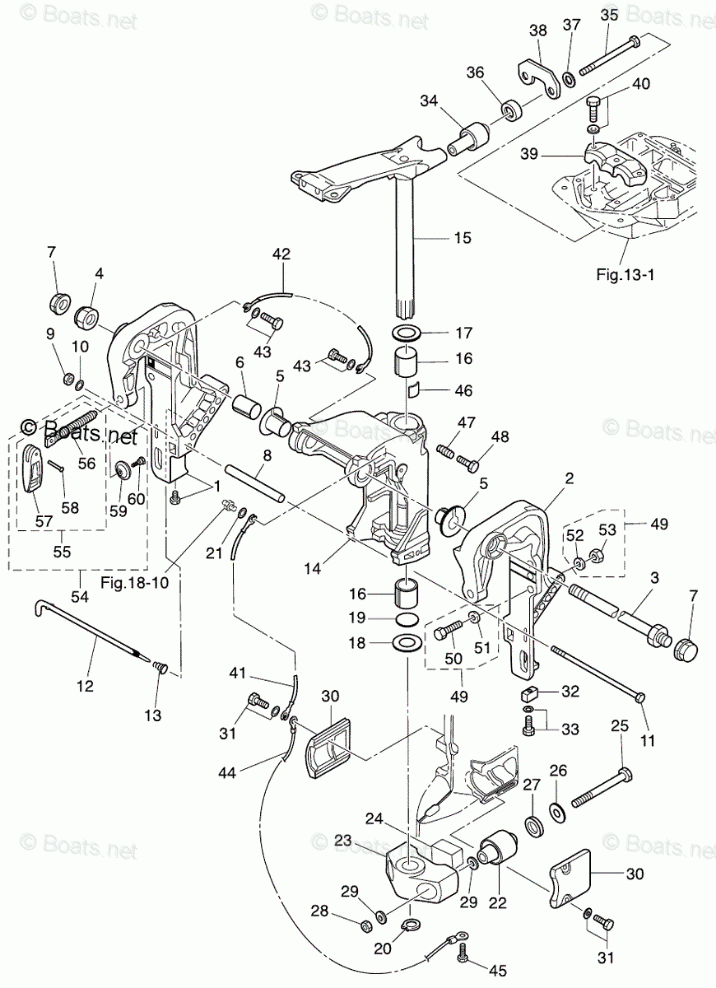

BRACKET (1) MANUAL TILT (EFO/EPO MODEL)
BRACKET (1) MANUAL TILT (EFO/EPO MODEL)

BRACKET (1) MANUAL TILT (EFO/EPO MODEL)

Tohatsu MD50B2

BRACKET (1) MANUAL TILT (EFO/EPO MODEL)

#

oem код

название

цена

1

CLAMP BRACKET (R)

CLAMP BRACKET (R)

2

CLAMP BRACKET (L)

CLAMP BRACKET (L)

3

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

4

NYLON NUT 7/8

NYLON NUT 7/8

5

BUSHING BRACKET BOLT

BUSHING BRACKET BOLT

6

BUSHING 22-25-35.5

BUSHING 22-25-35.5

7

CAP BRACKET BOLT

CAP BRACKET BOLT

8

DISTANCE PIECE

DISTANCE PIECE

9

NUT

NUT

10

WASHER

WASHER

11

BOLT 8-170

BOLT 8-170

12

THRUST ROD

THRUST ROD

13

SPRING THRUST ROD

SPRING THRUST ROD

14

SWIVEL BRACKET

SWIVEL BRACKET

15

STEERING SHAFT ASSY

STEERING SHAFT ASSY

16

BUSHING 26-32-30

BUSHING 26-32-30

17

THRUST PLATE (UPPER)

THRUST PLATE (UPPER)

18

THRUST PLATE (LOWER)

THRUST PLATE (LOWER)

19

O-RING 3.5-25.7

O-RING 3.5-25.7

20

C-RING D=25

C-RING D=25

21

WASHER

WASHER

22

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

23

MOUNT BRACKET

MOUNT BRACKET

24

DAMPER RUBBER

DAMPER RUBBER

25

RUBBER MOUNT BOLT (LOWER)

RUBBER MOUNT BOLT (LOWER)

26

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

27

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

28

NYLON NUT 12-P1.75

NYLON NUT 12-P1.75

29

WASHER

WASHER

30

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

31

BOLT

BOLT

32

ANODE

ANODE

33

BOLT

BOLT

34

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

35

BOLT

BOLT

36

DAMPER (UPPER)

DAMPER (UPPER)

37

WASHER 10-29-3

WASHER 10-29-3

38

LOCK PLATE (UPPER)

LOCK PLATE (UPPER)

39

MOUNT HOLDING PLATE (UPPER)

MOUNT HOLDING PLATE (UPPER)

40

BOLT

BOLT

41

GROUND CABLE

GROUND CABLE

42

GROUND CABLE

GROUND CABLE

43

BOLT

BOLT

44

GROUNG CABLE

GROUNG CABLE

45

BOLT

BOLT

46

FRICTION PLATE

FRICTION PLATE

47

FRICTION SPRING

FRICTION SPRING

48

BOLT

BOLT

49

RIGGING BOLT SET

RIGGING BOLT SET

50

BOLT 12P 1.25 - L105

BOLT 12P 1.25 - L105

51

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

52

WASHER

WASHER

53

NUT P1.25

NUT P1.25

54

CLAMP SCREW KIT

CLAMP SCREW KIT

55

CLAMP SCREW ASSY

CLAMP SCREW ASSY

56

CLAMP SCREW

CLAMP SCREW

57

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

58

RIVET 3-22

RIVET 3-22

59

CLAMP SCREW PAD

CLAMP SCREW PAD

60

SHOULDER BOLT

SHOULDER BOLT
