AIR RAIL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD90C2 (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

AIR RAIL

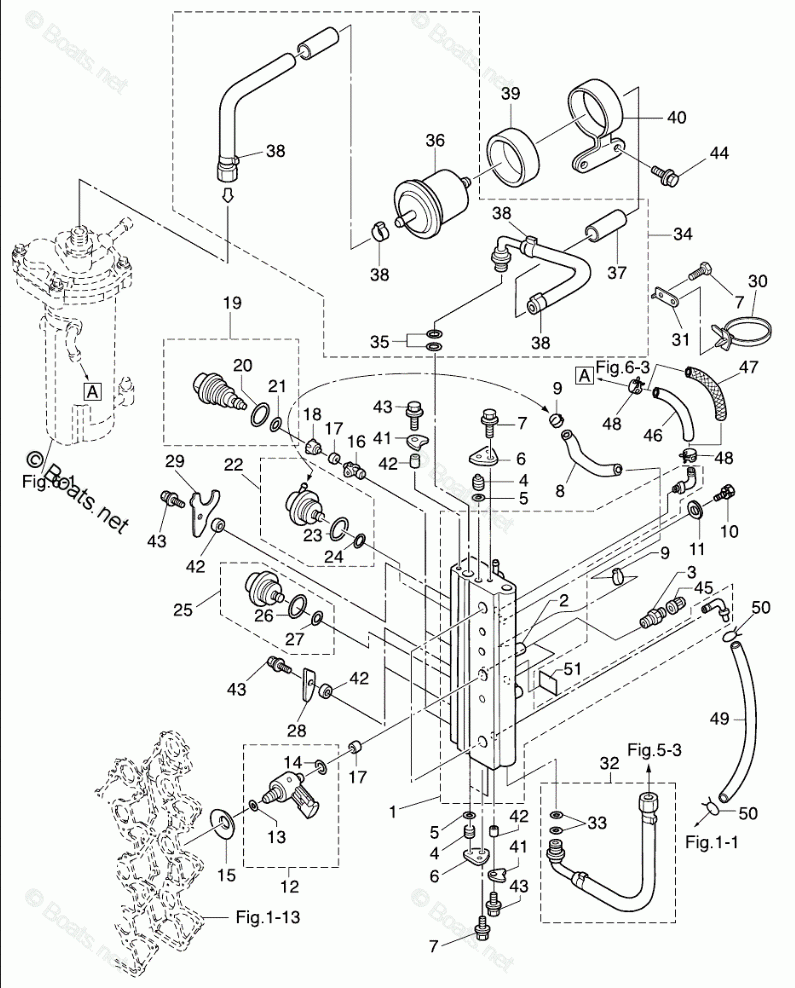

Tohatsu MD90C2

AIR RAIL

#

oem код

название

цена

1

AIR RAIL ASSY

AIR RAIL ASSY

2

L-NIPPLE

L-NIPPLE

3

VALVE

VALVE

4

PLUG 10.5

PLUG 10.5

5

O-RING 1.9-6.8

O-RING 1.9-6.8

6

PLUG STOPPER

PLUG STOPPER

7

BOLT

BOLT

8

HOSE

HOSE

9

CLAMP 29/64

CLAMP 29/64

10

BOLT

BOLT

11

WASHER

WASHER

12

AIR INJECTOR COMPLETE

AIR INJECTOR COMPLETE

13

O-RING 5-52 ( 1-10)

O-RING 5-52 ( 1-10)

14

O-RING 2.4-9.6

O-RING 2.4-9.6

15

AIR INJECTOR DISC SPRING

AIR INJECTOR DISC SPRING

16

FUEL INJECTOR INSERT

FUEL INJECTOR INSERT

17

COMPRESSION SEAL

COMPRESSION SEAL

18

FUEL INJECTOR ADAPTER

FUEL INJECTOR ADAPTER

19

FUEL INJECTOR

FUEL INJECTOR

20

O-RING 2.8-20.2

O-RING 2.8-20.2

21

O-RING 3.5-7.5

O-RING 3.5-7.5

22

FUEL REGULATOR

FUEL REGULATOR

23

O-RING 2.5-20

O-RING 2.5-20

24

O-RING 2.5-5

O-RING 2.5-5

25

AIR REGULATOR ASSY

AIR REGULATOR ASSY

26

O-RING 2.5-20

O-RING 2.5-20

27

O-RING 2.5-5

O-RING 2.5-5

28

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

29

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

30

LEAD WIRE BAND 170

LEAD WIRE BAND 170

31

LEAD WIRE BAND STAY

LEAD WIRE BAND STAY

32

AIR HOSE ASSY L=300

AIR HOSE ASSY L=300

33

O-RING 1.9-9.8

O-RING 1.9-9.8

34

FUEL HOSE ASSY L=543

FUEL HOSE ASSY L=543

35

O-RING 1.9-9.8

O-RING 1.9-9.8

36

FUEL FILTER

FUEL FILTER

37

PROTECTOR L=210

PROTECTOR L=210

38

CLAMP 21/32

CLAMP 21/32

39

FUEL FILTER RUBBER MOUNT

FUEL FILTER RUBBER MOUNT

40

FUEL FILTER BAND

FUEL FILTER BAND

41

NIPPLE HOLDING PLATE

NIPPLE HOLDING PLATE

42

COLLAR 6.7-12.7-3

COLLAR 6.7-12.7-3

43

BOLT

BOLT

44

BOLT

BOLT

45

VALVE CAP

VALVE CAP

46

HOSE

HOSE

47

FUEL HOSE W/PROTECTOR L=770

FUEL HOSE W/PROTECTOR L=770

48

CLIP 9.5

CLIP 9.5

49

AIR PIPE

AIR PIPE

50

CLIP 10

CLIP 10

51

AIR RAIL DECAL

AIR RAIL DECAL
