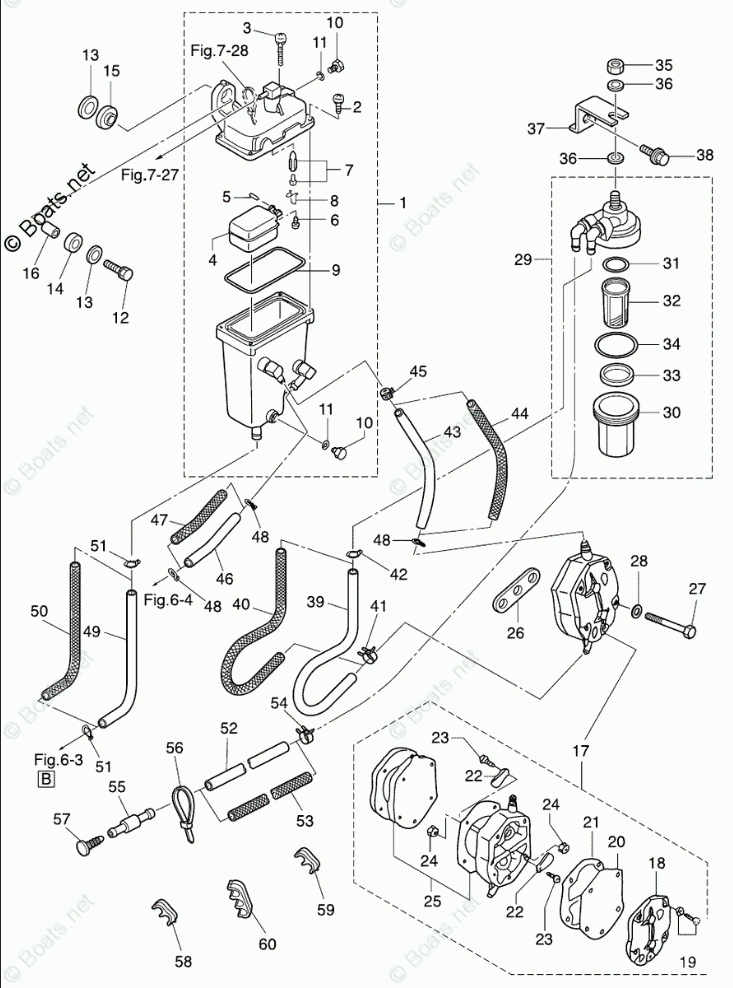

VAPOR SEPARATOR & FUEL LINE

Tohatsu MD90C2
Tohatsu
#oem кодцена
1
3T5101501
VAPOR SEPARATOR ASSY
2
9225316414
SCREW
3
9215036430
SCREW
4
3T5032300
FLOAT
5
3F3032320
ARM PIN FLOAT
6
9215030408
SCREW
7
3R3032390
FLOAT VALVE
8
344032440
CLIP
9
3T5032350
O-RING
10
345032920
DRAIN SCREW
11
336032930
O-RING
12
9101030630
BOLT
13
346671150
WASHER 6.5-21-1
14
346671130
RUBBER MOUNT 8.5-14-2.5
15
3B7069200
RUBBER MOUNT 8.5-14-2.5
16
346671141
SPACER 6.2-9-15.7
17
356040001
FUEL PUMP
18
334040040
PUMP COVER
19
9225F26528
SCREW
20
334040050
PUMP DIAPHRAGM
21
334040070
DIAPHRAGM GASKET B
22
356040440
CHECK VALVE
23
9217220306
SCREW
24
9302220300
NUT
25
356040300
DIAPHRAGM GASKET SET
26
346049012
GASKET
27
9101030640
BOLT
28
9402030600
WASHER
29
3T1022300
FUEL FILTER
30
3B7022370
CUP
31
3B7022350
O-RING A
32
3B7022340
FILTER
33
3T5022290
FLOAT
34
3B7022360
O-RING B
35
9301030800
NUT
36
9401030800
WASHER
37
3T5022390
FILTER PLATE
38
9101035616
BOLT
39
3FW022110
FUEL HOSE L=280
40
3FW021650
FUEL HOSE W/PROTECTOR L=280
41
345701141
CLIP 11.3
42
338022150
CLIP 10
43
98AB50210
FUEL PIPE B
44
3GB021650
FUEL HOSE W/PROTECTOR L=210
45
3AB351430
CLIP 9.5
46
98AB50075
HOSE
47
3GA021650
FUEL HOSE W/PROTECTOR L=75
48
338022150
CLIP 10
49
98AB70145
HOSE
50
3FW021700
FUEL HOSE W/PROTECTOR L=145
51
3C7022150
CLIP 12
52
98AB701200
HOSE
53
3KD021701
FUEL HOSE W/PROTECTOR L=1200
54
345701141
CLIP 11.3
55
3T1600180
FUEL HOSE NIPPLE
56
3T5843980
LEAD WIRD BAND 104
57
3T1038130
FUEL HOSE NIPPLE PLUG
58
3T1069170
CLAMP 10
59
3T1069150
HOSE CLAMP
60
3U1069150
HOSE CLAMP
