Tohatsu MD115A2

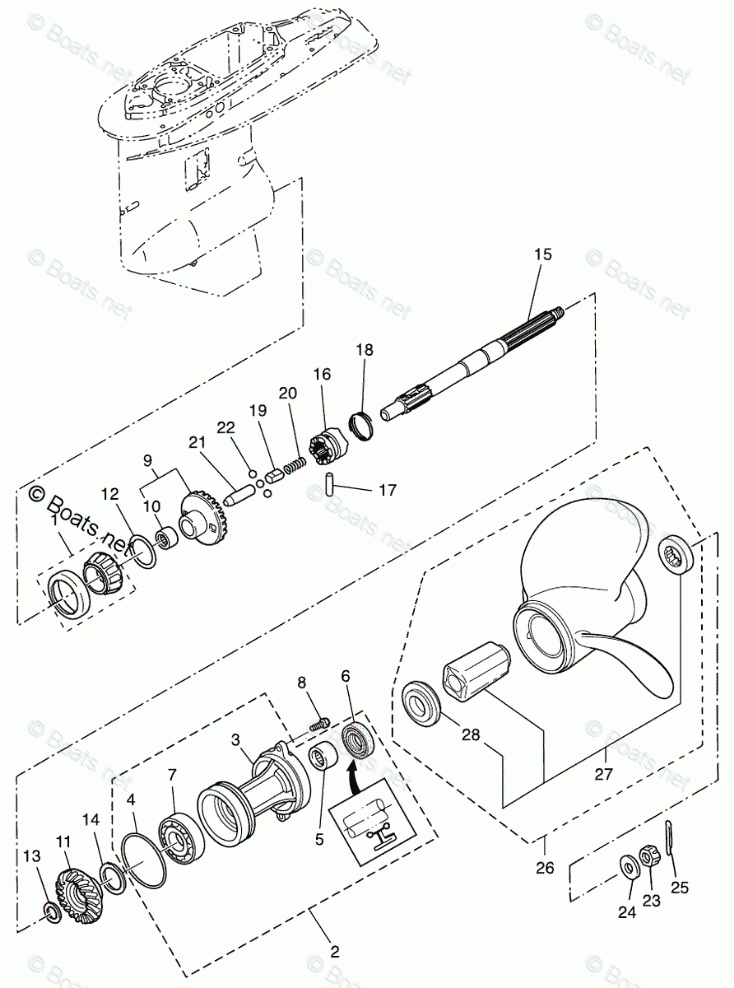

GEAR CASE (PROPELLER SHAFT)

#

oem код

название

цена

1

TAPER ROLLER BEARING 30209

TAPER ROLLER BEARING 30209

2

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

3

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

4

O-RING 3.1-94.4

O-RING 3.1-94.4

5

NEEDLE BEARING 30-40-30

NEEDLE BEARING 30-40-30

6

OIL SEAL 30-50-12

OIL SEAL 30-50-12

7

BEARING 6208

BEARING 6208

8

PRE-COATED BOLT 8-30

PRE-COATED BOLT 8-30

9

BEVEL GEAR A

BEVEL GEAR A

10

NEEDLE BEARING 25-32-26

NEEDLE BEARING 25-32-26

11

BEVEL GEAR C

BEVEL GEAR C

12

SHIM 47-57-0.15

SHIM 47-57-0.15

13

BEVEL GEAR C WASHER

BEVEL GEAR C WASHER

14

SHIM 42-50-0.15

SHIM 42-50-0.15

15

PROPELLER SHAFT

PROPELLER SHAFT

16

CLUTCH

CLUTCH

17

CLUTCH PIN

CLUTCH PIN

18

CLUTCH PIN SNAP

CLUTCH PIN SNAP

19

SPRING RETAINER L=30.5

SPRING RETAINER L=30.5

20

CLUTCH SPRING

CLUTCH SPRING

21

PUSH ROD

PUSH ROD

22

BALL

BALL

23

PROPELLER NUT

PROPELLER NUT

24

WASHER 17-32-3

WASHER 17-32-3

25

SPLIT PIN 3-25

SPLIT PIN 3-25

26

PROPELLER ASSY (9)

PROPELLER ASSY (9)

27

PROPELLER HUB KIT

PROPELLER HUB KIT

28

FORWARD THRUST WASHER

FORWARD THRUST WASHER
