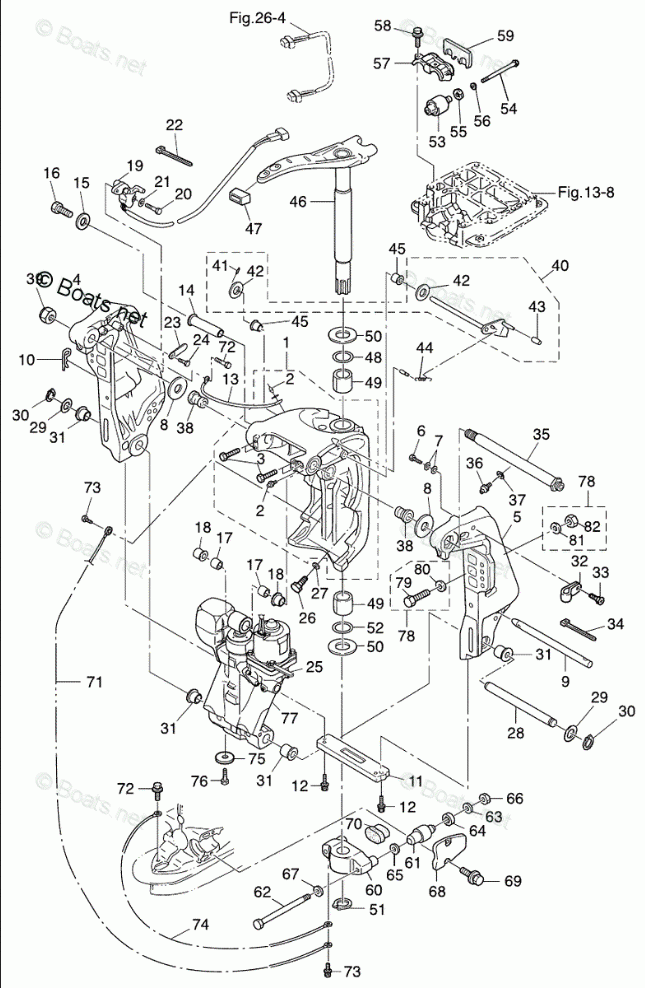

BRACKET

Tohatsu MD115A2

BRACKET

#

oem код

название

цена

1

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

2

GREASE FITTING

GREASE FITTING

3

BOLT

BOLT

4

CLAMP BRACKET (RIGHT)

CLAMP BRACKET (RIGHT)

5

CLAMP BRACKET (LEFT)

CLAMP BRACKET (LEFT)

6

BOLT

BOLT

7

WASHER

WASHER

8

WASHER 25.7-50-1

WASHER 25.7-50-1

9

THRUST ROD

THRUST ROD

10

R-PIN D=10

R-PIN D=10

11

ANODE

ANODE

12

BOLT

BOLT

13

GROUND CABLE

GROUND CABLE

14

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

15

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

16

BOLT

BOLT

17

BUSHING 18-24-19

BUSHING 18-24-19

18

BUSHING 18-20-20.5

BUSHING 18-20-20.5

19

TRIM SENSOR

TRIM SENSOR

20

BOLT

BOLT

21

WASHER 6-16-1.5

WASHER 6-16-1.5

22

LEAD WIRE BAND 100

LEAD WIRE BAND 100

23

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

24

BOLT

BOLT

25

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

26

BOLT 12-20 P-1.75

BOLT 12-20 P-1.75

27

WASHER

WASHER

28

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

29

WASHER 22.6-30-2

WASHER 22.6-30-2

30

C-RING D=22

C-RING D=22

31

BUSHING 22-25.4-23.5

BUSHING 22-25.4-23.5

32

CLAMP 6.5-14L

CLAMP 6.5-14L

33

SCREW

SCREW

34

LEAD WIRD BAND 104

LEAD WIRD BAND 104

35

SWIVEL BRACKET SHAFT

SWIVEL BRACKET SHAFT

36

GREASE FITTING

GREASE FITTING

37

WASHER

WASHER

38

BUSHING 25.6-28.6-40

BUSHING 25.6-28.6-40

39

NYLON NUT 7/8

NYLON NUT 7/8

40

TILT STOPPER ASSY

TILT STOPPER ASSY

41

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

42

WASHER 10.5-18-2

WASHER 10.5-18-2

43

TILT STOPPER GRIP

TILT STOPPER GRIP

44

SPRING TILT STOPPER

SPRING TILT STOPPER

45

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

46

STEERING SHAFT ASSY

STEERING SHAFT ASSY

47

STEERING ARM DAMPER B

STEERING ARM DAMPER B

48

STEERING SHAFT SEAL RING

STEERING SHAFT SEAL RING

49

BUSHING 32-40-45

BUSHING 32-40-45

50

THRUST PLATE

THRUST PLATE

51

C-RING D=32

C-RING D=32

52

O-RING 4.5-32

O-RING 4.5-32

53

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

54

BOLT

BOLT

55

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

56

WASHER 12.2-36-3

WASHER 12.2-36-3

57

MOUNT HOLDING PLATE (UPPER)

MOUNT HOLDING PLATE (UPPER)

58

BOLT

BOLT

59

DAMPER (UPPER)

DAMPER (UPPER)

60

MOUNT BRACKET

MOUNT BRACKET

61

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

62

RUBBER MOUNT BOLT (LOWER)

RUBBER MOUNT BOLT (LOWER)

63

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

64

DAMPER RUBBER 21- 36 - 5

DAMPER RUBBER 21- 36 - 5

65

WASHER 12.2-25-2

WASHER 12.2-25-2

66

NUT 12-P1.5

NUT 12-P1.5

67

WASHER

WASHER

68

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

69

BOLT 8-25

BOLT 8-25

70

RUBBER DAMPER (LOWER)

RUBBER DAMPER (LOWER)

71

GROUND CABLE

GROUND CABLE

72

BOLT

BOLT

73

BOLT

BOLT

74

GROUNG CABLE

GROUNG CABLE

75

ANODE

ANODE

76

BOLT

BOLT

77

POWER TRIM & TILT

POWER TRIM & TILT

78

RIGGING BOLT SET

RIGGING BOLT SET

79

BOLT 12P 1.25 - L105

BOLT 12P 1.25 - L105

80

WASHER 13 - 34 - 3

WASHER 13 - 34 - 3

81

WASHER

WASHER

82

NUT P1.25

NUT P1.25
