МАСЛЯНЫЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2013
MD115A2

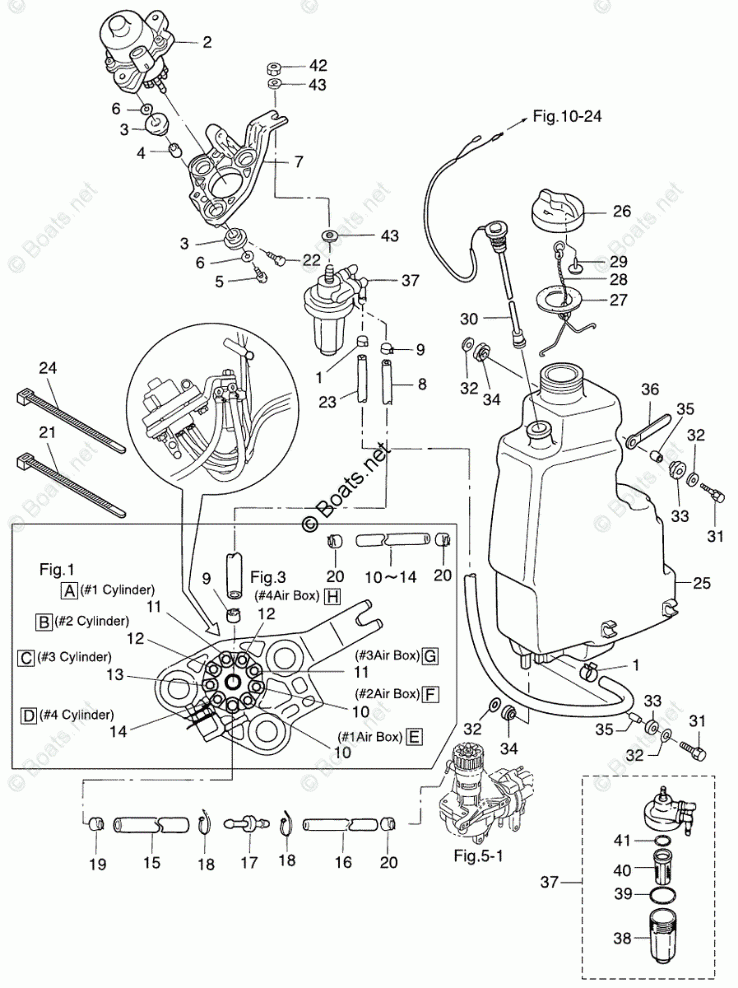

МАСЛЯНЫЙ НАСОС
МАСЛЯНЫЙ НАСОС

МАСЛЯНЫЙ НАСОС

Tohatsu MD115A2

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1

CLIP 9.5

CLIP 9.5

2

ELECTRIC OIL PUMP

ELECTRIC OIL PUMP

3

RUBBER MOUNT 12-18-2.5

RUBBER MOUNT 12-18-2.5

4

SPACER 8.4-12-17

SPACER 8.4-12-17

5

BOLT

BOLT

6

WASHER 8.5-24-1.5

WASHER 8.5-24-1.5

7

OIL PUMP BRACKET

OIL PUMP BRACKET

8

PIPE

PIPE

9

CLIP 9.5

CLIP 9.5

10

PIPE

PIPE

11

PIPE

PIPE

12

PIPE

PIPE

13

PIPE

PIPE

14

OIL PIPE

OIL PIPE

15

OIL PIPE

OIL PIPE

16

PIPE

PIPE

17

NIPPLE JOINT

NIPPLE JOINT

18

LEAD WIRD BAND 104

LEAD WIRD BAND 104

19

CLIP 7.8

CLIP 7.8

20

CLIP 6.9

CLIP 6.9

21

LEAD WIRD BAND 104

LEAD WIRD BAND 104

22

BOLT

BOLT

23

PIPE

PIPE

24

LEAD WIRE BAND 150

LEAD WIRE BAND 150

25

OIL TANK

OIL TANK

26

OIL TANK CAP

OIL TANK CAP

27

GASKET 36-52-2

GASKET 36-52-2

28

TANK CAP HOOK

TANK CAP HOOK

29

TANK CAP CHECK VALVE

TANK CAP CHECK VALVE

30

OIL LEVEL SENSOR

OIL LEVEL SENSOR

31

BOLT

BOLT

32

WASHER 6.5-21-1

WASHER 6.5-21-1

33

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

34

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

35

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

36

CLAMP 6.5-87P

CLAMP 6.5-87P

37

OIL FILTER

OIL FILTER

38

CUP

CUP

39

O-RING A

O-RING A

40

FILTER

FILTER

41

O-RING B

O-RING B

42

NUT

NUT

43

WASHER

WASHER
