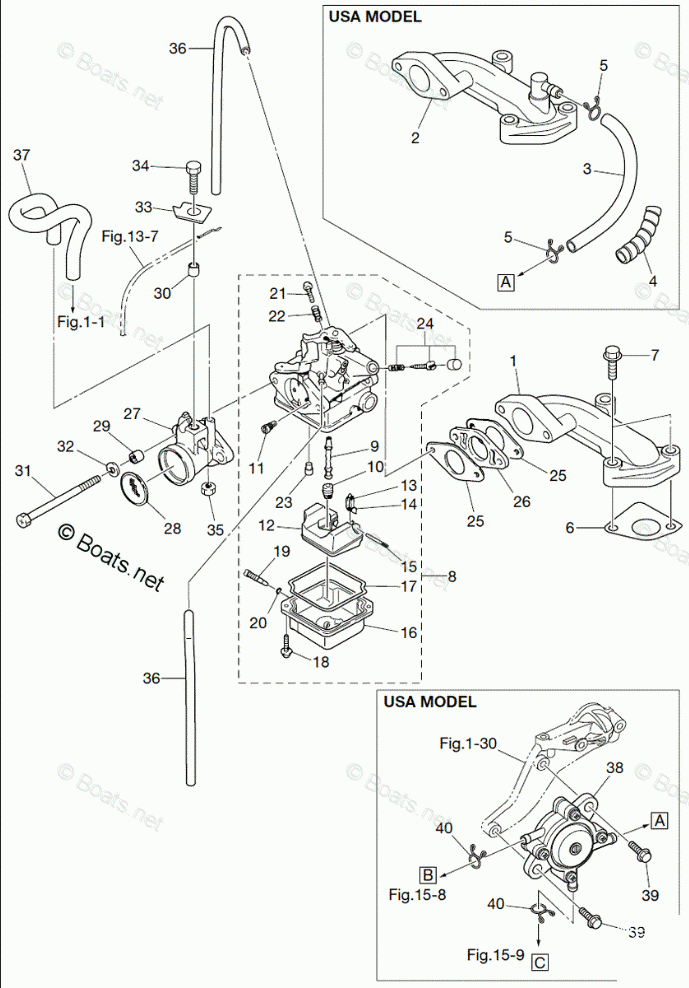

INTAKE MANIFOLD & CARBURETOR
INTAKE MANIFOLD & CARBURETOR

INTAKE MANIFOLD & CARBURETOR

Tohatsu MFS2.5B

INTAKE MANIFOLD & CARBURETOR

#

oem код

название

цена

1

INTAKE MANIFOLD

INTAKE MANIFOLD

2

INTAKE MANIFOLD ASSY

INTAKE MANIFOLD ASSY

3

HOSE

HOSE

4

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

5

CLIP 12

CLIP 12

6

INTAKE MANIFOLD GASKET

INTAKE MANIFOLD GASKET

7

BOLT

BOLT

8

CARBURETOR ASSY

CARBURETOR ASSY

9

MAIN NOZZLE

MAIN NOZZLE

10

MAIN JET #65

MAIN JET #65

11

SLOW AIR JET (#125)

SLOW AIR JET (#125)

12

FLOAT

FLOAT

13

FLOAT VALVE

FLOAT VALVE

14

CLIP

CLIP

15

FLOAT ARM PIN

FLOAT ARM PIN

16

FLOAT CHAMBER

FLOAT CHAMBER

17

FLOAT CHAMBER GASKET

FLOAT CHAMBER GASKET

18

SCREW

SCREW

19

DRAIN SCREW

DRAIN SCREW

20

DRAIN SCREW O-RING

DRAIN SCREW O-RING

21

STOP SCREW

STOP SCREW

22

STOP SCREW SPRING

STOP SCREW SPRING

23

RUBBER CAP

RUBBER CAP

24

PILOT SCREW SET

PILOT SCREW SET

25

CARBURETOR GASKET

CARBURETOR GASKET

26

INSULATOR

INSULATOR

27

INTAKE SILENCER

INTAKE SILENCER

28

FLAME ARRESTER

FLAME ARRESTER

29

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

30

COLLAR 6.2-9-7

COLLAR 6.2-9-7

31

BOLT

BOLT

32

WASHER

WASHER

33

CABLE HOLDER

CABLE HOLDER

34

BOLT

BOLT

35

NUT

NUT

36

RUBBER HOSE

RUBBER HOSE

37

BREATHER HOSE

BREATHER HOSE

38

FUEL PUMP ASSY

FUEL PUMP ASSY

39

BOLT

BOLT

40

CLIP 10

CLIP 10
