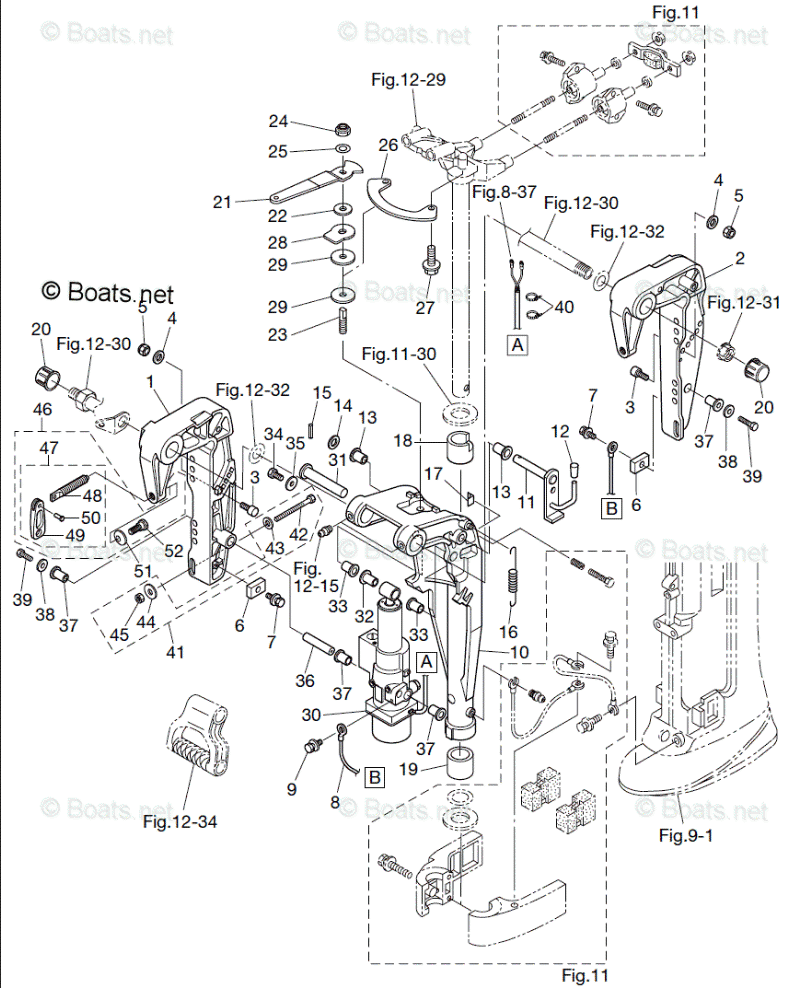

BRACKET (EFT & EPT MODEL)
BRACKET (EFT & EPT MODEL)

BRACKET (EFT & EPT MODEL)

Tohatsu MFS8A3

BRACKET (EFT & EPT MODEL)

#

oem код

название

цена

1

CLAMP BRACKET (PTT-RIGHT)

CLAMP BRACKET (PTT-RIGHT)

2

CLAMP BRACKET (PTT-LEFT)

CLAMP BRACKET (PTT-LEFT)

3

TRIM LOCK PIN

TRIM LOCK PIN

4

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5

5

NYLON NUT (2T) M8 P1.25

NYLON NUT (2T) M8 P1.25

6

ANODE

ANODE

7

BOLT

BOLT

8

GROUND CABLE

GROUND CABLE

9

BOLT

BOLT

10

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

11

TILT STOPPER

TILT STOPPER

12

TILT STOPPER GRIP

TILT STOPPER GRIP

13

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

14

WASHER

WASHER

15

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

16

SPRING TILT STOPPER

SPRING TILT STOPPER

17

FRICTION PIECE

FRICTION PIECE

18

BUSHING 24-30-30

BUSHING 24-30-30

19

BUSHING 24-30-30

BUSHING 24-30-30

20

CAP BRACKET BOLT

CAP BRACKET BOLT

21

CO- PILOT HANDLE

CO- PILOT HANDLE

22

WASHER 8.1-20-0.8

WASHER 8.1-20-0.8

23

CO-PILOT BOLT

CO-PILOT BOLT

24

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

25

WASHER

WASHER

26

CO-PILOT PLATE

CO-PILOT PLATE

27

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

28

WASHER CO-PILOT

WASHER CO-PILOT

29

CO-PILOT DISC

CO-PILOT DISC

30

PT ASSY

PT ASSY

31

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

32

BUSHING 13-16-31

BUSHING 13-16-31

33

BUSHING 13 -17 -19.5

BUSHING 13 -17 -19.5

34

BOLT

BOLT

35

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

36

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

37

BUSHING 13-16-31

BUSHING 13-16-31

38

WASHER 8.5-28-1

WASHER 8.5-28-1

39

BOLT

BOLT

40

LEAD WIRE BAND 203

LEAD WIRE BAND 203

41

RIGGING BOLT SET

RIGGING BOLT SET

42

BOLT

BOLT

43

WASHER

WASHER

44

WASHER 8.5-34-3

WASHER 8.5-34-3

45

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

46

CLAMP SCREW KIT

CLAMP SCREW KIT

47

CLAMP SCREW ASSY

CLAMP SCREW ASSY

48

CLAMP SCREW

CLAMP SCREW

49

CLAMP SCREW HANDLE

CLAMP SCREW HANDLE

50

RIVET 3-22

RIVET 3-22

51

CLAMP SCREW PAD

CLAMP SCREW PAD

52

SHOULDER BOLT

SHOULDER BOLT
