MAGNETO & ELECTRIC PARTS
MAGNETO & ELECTRIC PARTS

MAGNETO & ELECTRIC PARTS

Tohatsu MFS8A3

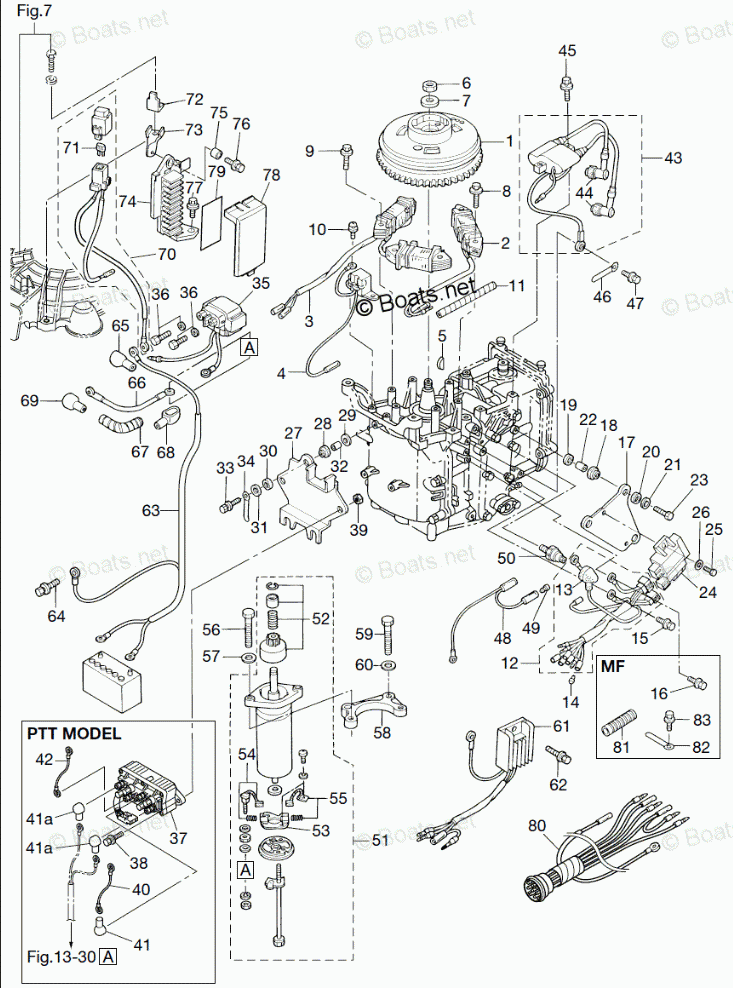

MAGNETO & ELECTRIC PARTS

#

oem код

название

цена

1

FLYWHEEL CUP

FLYWHEEL CUP

2

EXCITER COIL

EXCITER COIL

3

ALTERNATER

ALTERNATER

4

PULSER COIL

PULSER COIL

5

KEY

KEY

6

NUT 12-P1.25

NUT 12-P1.25

7

WASHER

WASHER

8

BOLT

BOLT

9

BOLT

BOLT

10

SCREW

SCREW

11

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

12

C.D. UNIT CORD ASSY

C.D. UNIT CORD ASSY

13

GROMMET OIL PRESSURE SWITCH

GROMMET OIL PRESSURE SWITCH

14

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

15

BOLT

BOLT

16

BOLT

BOLT

17

CD UNIT BRACKET

CD UNIT BRACKET

18

RUBBER MOUNT 8.5-18-7

RUBBER MOUNT 8.5-18-7

19

WASHER 6-16-1.5

WASHER 6-16-1.5

20

RUBBER MOUNT 9-16-4.3

RUBBER MOUNT 9-16-4.3

21

WASHER 6-16-1.5

WASHER 6-16-1.5

22

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

23

BOLT (OR 910113-0625)

BOLT (OR 910113-0625)

24

C.D. UNIT (CU7256)

C.D. UNIT (CU7256)

25

BOLT 6-16 PRECOATED

BOLT 6-16 PRECOATED

26

WASHER 6-16-1.5

WASHER 6-16-1.5

27

ELECTRIC BRACKET ASSY

ELECTRIC BRACKET ASSY

28

RUBBER MOUNT 8.5-18-7

RUBBER MOUNT 8.5-18-7

29

WASHER 6-16-1.5

WASHER 6-16-1.5

30

RUBBER MOUNT 9-16-4.3

RUBBER MOUNT 9-16-4.3

31

WASHER 6-16-1.5

WASHER 6-16-1.5

32

COLLAR 6.2-9-7.4

COLLAR 6.2-9-7.4

33

BOLT

BOLT

34

CLAMP 6.5-87P

CLAMP 6.5-87P

35

STARTER SOLENOID

STARTER SOLENOID

36

BOLT

BOLT

37

POWER TILT SOLENOID SWITCH A

POWER TILT SOLENOID SWITCH A

38

BOLT

BOLT

39

NUT

NUT

40

CORD A

CORD A

41A

TERMINAL CAP

TERMINAL CAP

41

TERMINAL CAP

TERMINAL CAP

42

CORD B SOLENOID SWITCH

CORD B SOLENOID SWITCH

43

IGNITION COIL

IGNITION COIL

44

PLUG CAP (WITH RESISTANCE)

PLUG CAP (WITH RESISTANCE)

45

BOLT

BOLT

46

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

47

BOLT

BOLT

48

SEPARATE CORD ( BLACK)

SEPARATE CORD ( BLACK)

49

CABLE TERMINAL PLUG

CABLE TERMINAL PLUG

50

OIL PRESSURE SWITCH

OIL PRESSURE SWITCH

51

STARTER MOTOR

STARTER MOTOR

52

PINION

PINION

53

BRUSH HOLDER

BRUSH HOLDER

54

POSITIVE BRUSH (WITH SPRING)

POSITIVE BRUSH (WITH SPRING)

55

NEGATIVE BRUSH (WITH SPRING)

NEGATIVE BRUSH (WITH SPRING)

56

BOLT

BOLT

57

WASHER

WASHER

58

STARTER MOTOR BRACKET

STARTER MOTOR BRACKET

59

BOLT

BOLT

60

WASHER

WASHER

61

RECTIFIER

RECTIFIER

62

BOLT

BOLT

63

BATTERY CABLE L=2500

BATTERY CABLE L=2500

64

BOLT

BOLT

65

TERMINAL CAP

TERMINAL CAP

66

STARTER CABLE L=200

STARTER CABLE L=200

67

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

68

TERMINAL CAP

TERMINAL CAP

69

TERMINAL CAP

TERMINAL CAP

70

FUSE CABLE

FUSE CABLE

71

FUSE (20A)

FUSE (20A)

72

FUSE HOLDER STAY

FUSE HOLDER STAY

73

CABLE TERMINAL HOLDER STAY

CABLE TERMINAL HOLDER STAY

74

CABLE TERMINAL HOLDER

CABLE TERMINAL HOLDER

75

COLLAR 6-8-6

COLLAR 6-8-6

76

BOLT

BOLT

77

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

78

TERMINAL HOLDER COVER

TERMINAL HOLDER COVER

79

WIRING DIAGRAM DECAL

WIRING DIAGRAM DECAL

80

CORD ASSY

CORD ASSY

81

PROTECTOR

PROTECTOR

82

CLAMP 6.5-87P

CLAMP 6.5-87P

83

BOLT

BOLT
