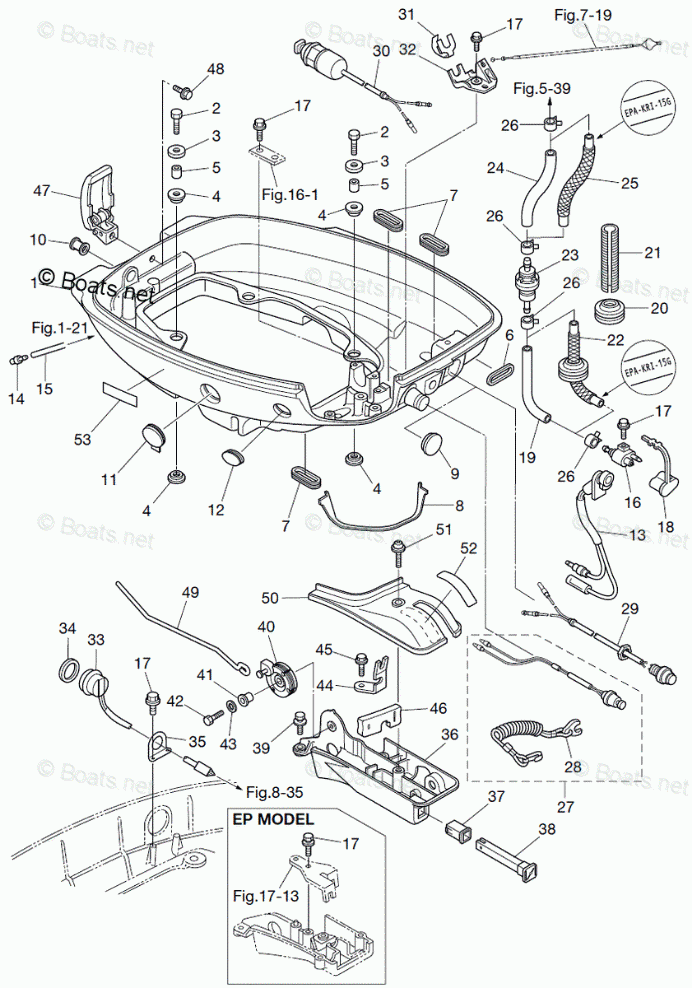

BOTTOM COWL

Tohatsu MFS15C

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

BOLT

BOLT

3

RUBBER MOUNT WASHER

RUBBER MOUNT WASHER

4

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

5

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

6

BATTERY CABLE GROMMET

BATTERY CABLE GROMMET

7

SHIFT ROD GROMMET

SHIFT ROD GROMMET

8

SHIFT LEVER BRACKET SEAL

SHIFT LEVER BRACKET SEAL

9

GROMMET 17-2.7

GROMMET 17-2.7

10

GROMMET

GROMMET

11

GROMMET

GROMMET

12

GROMMET

GROMMET

13

WARNING LAMP

WARNING LAMP

14

WATER NIPPLE

WATER NIPPLE

15

HOSE

HOSE

16

FUEL CONNECTOR ( ENGINE MALE)

FUEL CONNECTOR ( ENGINE MALE)

17

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

18

FUEL CONNECTOR PROTECTOR

FUEL CONNECTOR PROTECTOR

19

RUBBER HOSE

RUBBER HOSE

20

GROMMET 22-2.5

GROMMET 22-2.5

21

FUEL HOSE PROTECTOR

FUEL HOSE PROTECTOR

22

FUEL HOSE W/PROTECTOR L=400

FUEL HOSE W/PROTECTOR L=400

23

FUEL FILTER

FUEL FILTER

24

RUBBER HOSE

RUBBER HOSE

25

FUEL HOSE W/PROTECTOR L=120

FUEL HOSE W/PROTECTOR L=120

26

CLIP 9.5

CLIP 9.5

27

STOP SWITCH

STOP SWITCH

28

STOP SWITCH LANYARD

STOP SWITCH LANYARD

29

MAIN SWITCH

MAIN SWITCH

30

NEUTRAL SWITCH

NEUTRAL SWITCH

31

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

32

NEUTRAL SWITCH BRACKET

NEUTRAL SWITCH BRACKET

33

PTT SWITCH

PTT SWITCH

34

GASKET PTT SWITCH

GASKET PTT SWITCH

35

PTT SWITCH BRACKET

PTT SWITCH BRACKET

36

SHIFT LEVER BRACKET

SHIFT LEVER BRACKET

37

BUSHING

BUSHING

38

CHOKE ROD

CHOKE ROD

39

BOLT

BOLT

40

THROTTLE DRUM ASSY

THROTTLE DRUM ASSY

41

COLLAR 6.1-14-8.9

COLLAR 6.1-14-8.9

42

BOLT

BOLT

43

WASHER 6-16-1.5

WASHER 6-16-1.5

44

THROTTLE WIRE BRACKET

THROTTLE WIRE BRACKET

45

BOLT

BOLT

46

SHIFT LEVER ROD GROMMET

SHIFT LEVER ROD GROMMET

47

COWL LATCH ASSY

COWL LATCH ASSY

48

BOLT

BOLT

49

THROTTLE ROD

THROTTLE ROD

50

SHIFT LEVER BRACKET COVER

SHIFT LEVER BRACKET COVER

51

SCREW

SCREW

52

SHIFT DECAL (F N R)

SHIFT DECAL (F N R)

53

STORAGE DECAL

STORAGE DECAL
