BRACKET (PTT) Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS15C (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

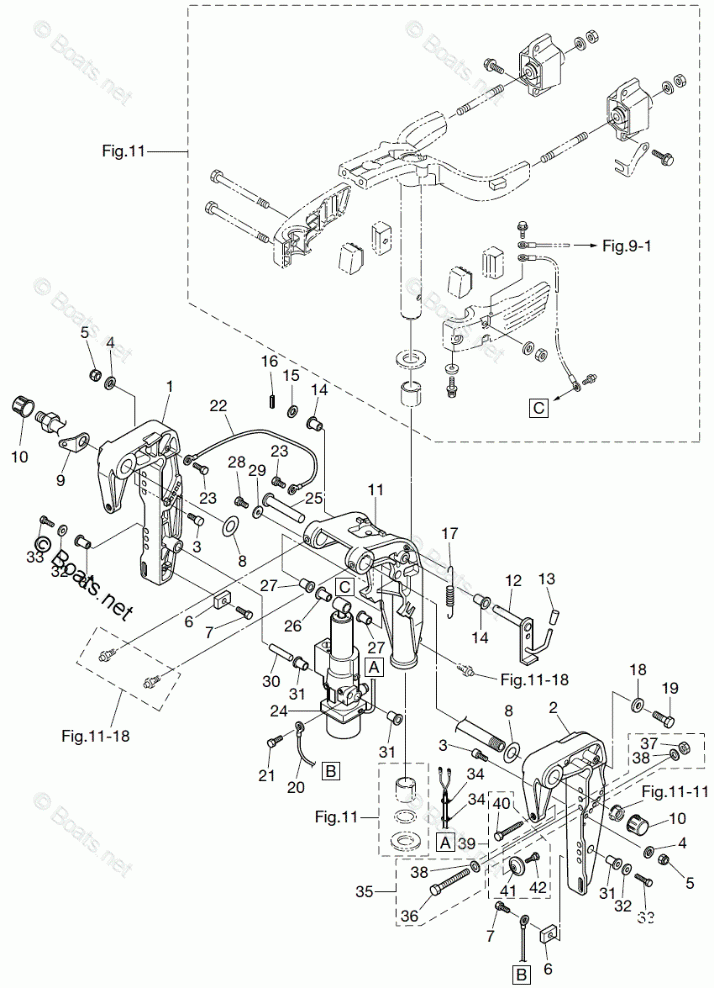

BRACKET (PTT)

Tohatsu MFS15C

BRACKET (PTT)

#

oem код

название

цена

1

CLAMP BRACKET (PTT-RIGHT)

CLAMP BRACKET (PTT-RIGHT)

2

CLAMP BRACKET (PTT-LEFT)

CLAMP BRACKET (PTT-LEFT)

3

TRIM LOCK PIN

TRIM LOCK PIN

4

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5

5

NYLON NUT (2T) M8 P1.25

NYLON NUT (2T) M8 P1.25

6

ANODE

ANODE

7

BOLT

BOLT

8

WASHER 22-36-1

WASHER 22-36-1

9

PLATE

PLATE

10

CAP BRACKET BOLT

CAP BRACKET BOLT

11

SWIVEL BRACKET (PTT)

SWIVEL BRACKET (PTT)

12

TILT STOPPER

TILT STOPPER

13

TILT STOPPER GRIP

TILT STOPPER GRIP

14

COLLAR 10.2 -12 -12

COLLAR 10.2 -12 -12

15

WASHER

WASHER

16

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

17

SPRING TILT STOPPER

SPRING TILT STOPPER

18

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

19

BOLT

BOLT

20

GROUND CABLE

GROUND CABLE

21

BOLT

BOLT

22

GROUND CABLE

GROUND CABLE

23

BOLT

BOLT

24

PT ASSY

PT ASSY

25

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

26

BUSHING 13-16-31

BUSHING 13-16-31

27

BUSHING 13 -17 -19.5

BUSHING 13 -17 -19.5

28

BOLT

BOLT

29

WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

30

CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

31

BUSHING 13-16-31

BUSHING 13-16-31

32

WASHER 8.5-28-1

WASHER 8.5-28-1

33

BOLT

BOLT

34

LEAD WIRE BAND 203

LEAD WIRE BAND 203

35

RIGGING BOLT SET

RIGGING BOLT SET

36

BOLT

BOLT

37

NUT

NUT

38

WASHER

WASHER

39

CLAMP SCREW KIT

CLAMP SCREW KIT

40

CLAMP SCREW (PTT)

CLAMP SCREW (PTT)

41

CLAMP SCREW PAD

CLAMP SCREW PAD

42

SHOULDER BOLT

SHOULDER BOLT
