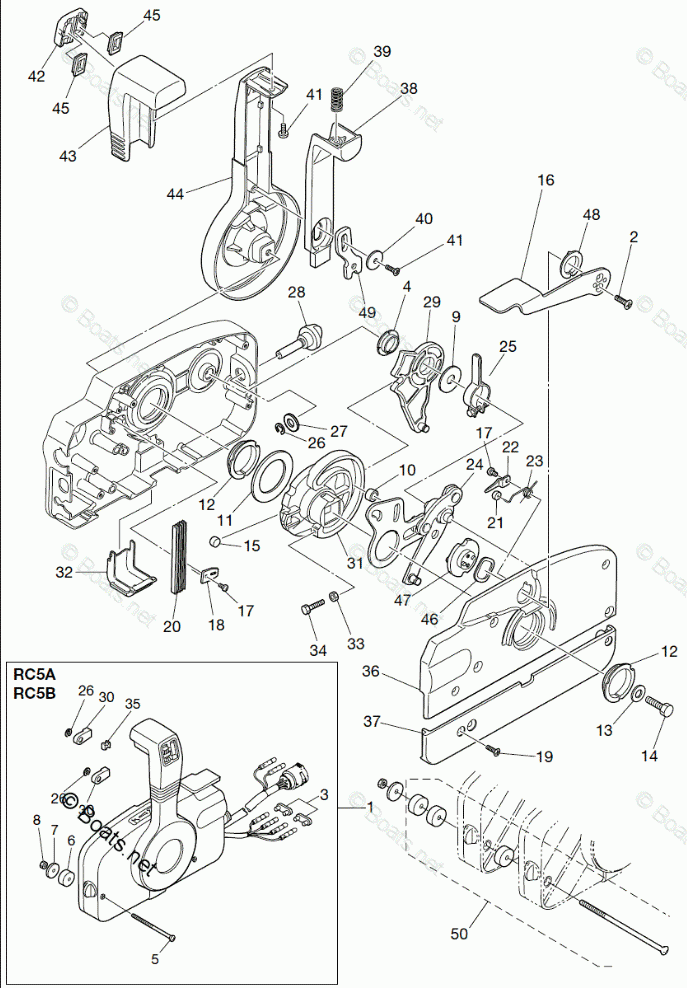

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS15C
Tohatsu
#oem кодцена
1
3ACQ843300
REMOTE CONTROL HEAD ASSY (RC5A)
2
9216030512
SCREW
3
353760370
CABLE TERMINAL PLUG
4
3A3844320
BUSHING
5
3A3843750
SCREW
6
3A3843740
SPACER
7
353843710
WASHER
8
9301030600
NUT
9
3A3843830
WASHER
10
3A3844210
ROLLER
11
3A3844220
THRUST PLATE
12
3A3844310
BUSHING
13
9401030800
WASHER
14
3A3844420
BOLT
15
353843880
DETENT ROLLER
16
3B7Q843120
FREE THROTTLE LEVER
17
9215030406
SCREW
18
3A3844230
DETENT RETAINER
19
9216030518
SCREW
20
3A3843070
DETENT SPRING
21
3A3844240
FREE THROTTLE ROLLER
22
3A3844260
ROLLER RETAINER
23
3A3844250
FREE THROTTLE SPRING
24
3A3843651
THROTTLE ARM
25
3A3844280
THROTTLE FRICTION ARM
26
9453030600
E-RING D=6
27
353843940
WASHER
28
3A3844270
ADJUST SCREW
29
3A3843810
SHIFT GEAR ASSY
30
3A3833142
CABLE TERMINAL
31
3A3843642
DRIVE GEAR
32
3A3844290
WIRE COVER
33
9301030500
NUT
34
9101030525
BOLT
35
3A3843760
GROMMET
36
3B7Q844410
REAR HOUSING
37
3B7Q843660
REAR PANEL
38
3A3844010
NEUTRAL LOCK ARM
39
3A3844030
NEUTRAL LOCK SPRING
40
3A3844070
WASHER
41
9215030510
SCREW
42
3A3844510
TILT SWITCH COVER
43
3A3844040
GRIP
44
3B7Q843430
CONTROL LEVER
45
3A3844520
TILT SWITCH PLUG
46
3A3843680
WAVE WASHER
47
3A3843910
FREE THROTTLE DRUM
48
3A3844350
BUSHING
49
3A3844060
PLATE
50
3A3813010
TWIN REMOTE CONTROL BOX KIT
