РУМПЕЛЬ Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS15C (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

РУМПЕЛЬ

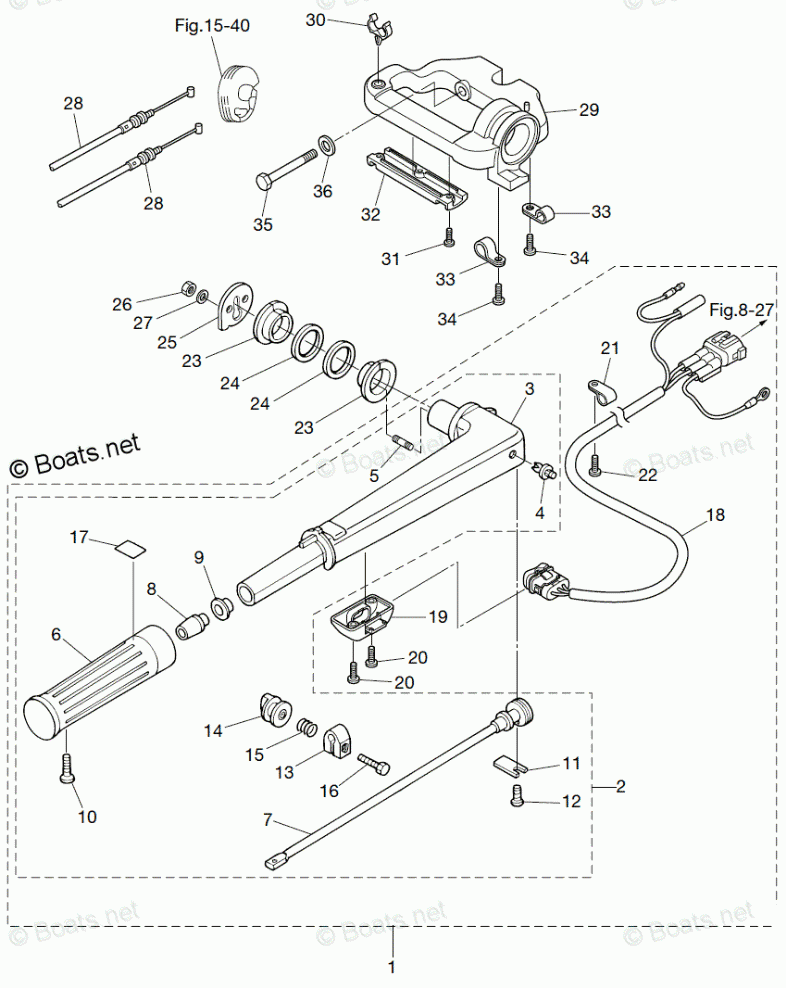

Tohatsu MFS15C

РУМПЕЛЬ

#

oem код

название

цена

1

TILLER HANDLE ASSY

TILLER HANDLE ASSY

2

TILLER HANDLE ASSY

TILLER HANDLE ASSY

3

TILLER HANDLE

TILLER HANDLE

4

PLASTIC RIVET 6.5

PLASTIC RIVET 6.5

5

STUD BOLT

STUD BOLT

6

GRIP

GRIP

7

THROTTLE SHAFT

THROTTLE SHAFT

8

THROTTLE SHAFT DAMPER

THROTTLE SHAFT DAMPER

9

BUSHING 14-15.8-7

BUSHING 14-15.8-7

10

SCREW

SCREW

11

THROTTLE SHAFT SUPPORT

THROTTLE SHAFT SUPPORT

12

SCREW

SCREW

13

FRICTION PIECE

FRICTION PIECE

14

ADJUSTING NUT

ADJUSTING NUT

15

SPRING

SPRING

16

BOLT (OR 910113-0625)

BOLT (OR 910113-0625)

17

THROTTLE DECAL

THROTTLE DECAL

18

PTT SWITCH ASSY

PTT SWITCH ASSY

19

SWITCH BOX

SWITCH BOX

20

SCREW

SCREW

21

CLAMP 6 - 9.5L

CLAMP 6 - 9.5L

22

SCREW

SCREW

23

HANDLE BUSHING

HANDLE BUSHING

24

WASHER 33.5-43-3

WASHER 33.5-43-3

25

COVER

COVER

26

NUT

NUT

27

WASHER

WASHER

28

THROTTLE CABLE

THROTTLE CABLE

29

STEERING BRACKET

STEERING BRACKET

30

CORD HOLDER

CORD HOLDER

31

SCREW

SCREW

32

CORD HOLDER

CORD HOLDER

33

CLAMP 6 - 9.5L

CLAMP 6 - 9.5L

34

SCREW

SCREW

35

BOLT 10-80

BOLT 10-80

36

WASHER

WASHER
