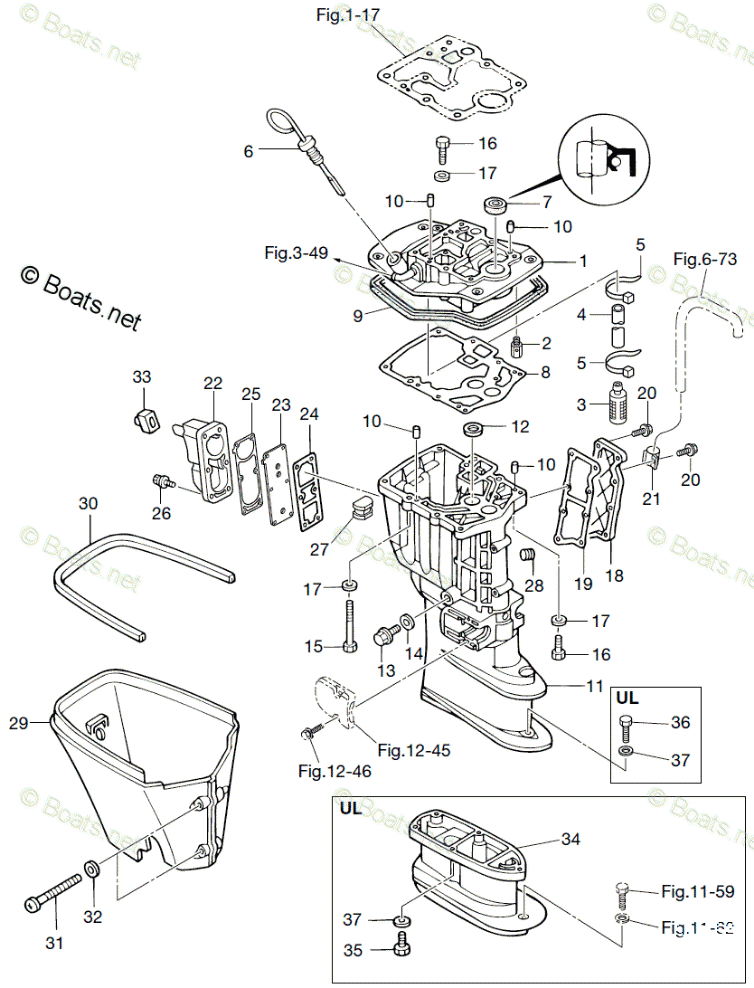

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Tohatsu MFS25B

КОРПУС ПРИВОДНОГО ВАЛА

#

oem код

название

цена

1

ENGINE BASEMENT ASSY

ENGINE BASEMENT ASSY

2

PLUNGER

PLUNGER

3

OIL STRAINER

OIL STRAINER

4

HOSE

HOSE

5

LEAD WIRE BAND 150

LEAD WIRE BAND 150

6

OIL LEVEL GAUGE

OIL LEVEL GAUGE

7

OIL SEAL 16 - 28 - 6

OIL SEAL 16 - 28 - 6

8

GASKET DRIVE SHAFT HOUSING

GASKET DRIVE SHAFT HOUSING

9

SEAL RUBBER ENGINE BASE

SEAL RUBBER ENGINE BASE

10

DOWEL PIN 6-12

DOWEL PIN 6-12

11

DRIVE SHAFT HOUSING (S)

DRIVE SHAFT HOUSING (S)

12

PLATE WATER PIPE

PLATE WATER PIPE

13

DRAIN BOLT

DRAIN BOLT

14

WASHER 14.5-24-1

WASHER 14.5-24-1

15

BOLT 8-105

BOLT 8-105

16

BOLT 8-40

BOLT 8-40

17

WASHER

WASHER

18

COVER

COVER

19

GASKET DRAIN COVER

GASKET DRAIN COVER

20

BOLT

BOLT

21

CLAMP 6.5-14L

CLAMP 6.5-14L

22

IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

23

PLATE

PLATE

24

GASKET IDLE PORT

GASKET IDLE PORT

25

IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

26

BOLT

BOLT

27

GROMMET

GROMMET

28

EXHAUST PLUG

EXHAUST PLUG

29

APRON

APRON

30

SEAL RUBBER APRON

SEAL RUBBER APRON

31

TAPPING SCREW

TAPPING SCREW

32

WASHER

WASHER

33

GROMMET APRON

GROMMET APRON

34

EXTENSION HOUSING

EXTENSION HOUSING

35

BOLT

BOLT

36

BOLT

BOLT

37

WASHER 8.1 -16 -1.5

WASHER 8.1 -16 -1.5
