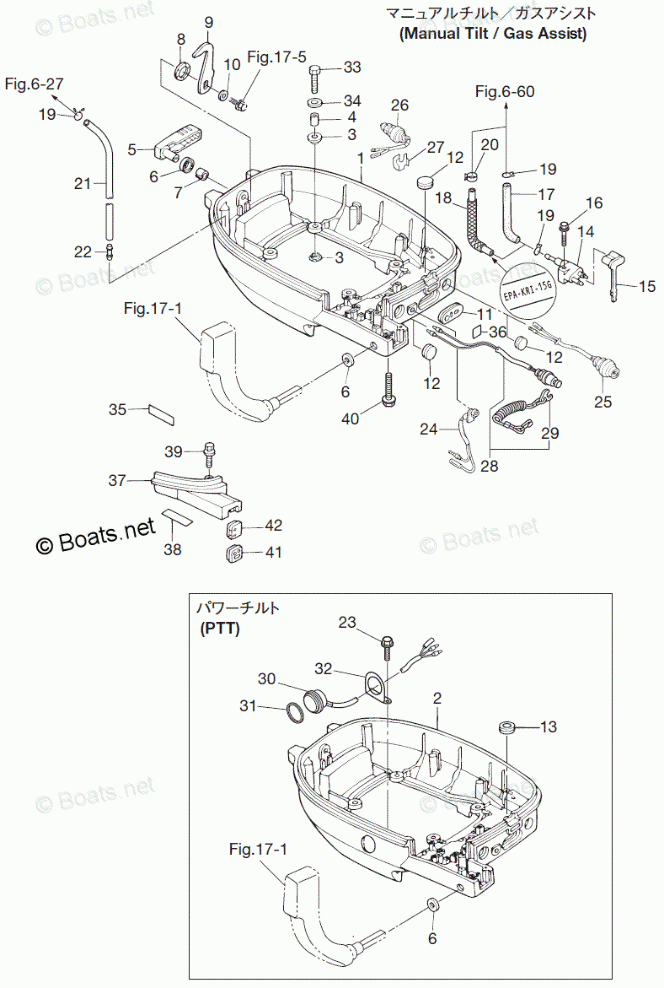

BOTTOM COWL

Tohatsu MFS25B

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

BOTTOM COWL

BOTTOM COWL

3

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

4

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

5

HOOK LEVER

HOOK LEVER

6

SEAL RING

SEAL RING

7

BUSHING 14 -16.5 -17.7

BUSHING 14 -16.5 -17.7

8

WAVE WASHER D=14

WAVE WASHER D=14

9

COVER HOOK

COVER HOOK

10

WASHER 6-16-1.5

WASHER 6-16-1.5

11

GROMMET BATTERY CORD

GROMMET BATTERY CORD

12

GROMMET 17-2.7

GROMMET 17-2.7

13

GROMMET 18-2.5

GROMMET 18-2.5

14

FUEL CONNECTOR ( ENGINE MALE)

FUEL CONNECTOR ( ENGINE MALE)

15

FUEL CONNECTOR PROTECTOR

FUEL CONNECTOR PROTECTOR

16

BOLT

BOLT

17

FUEL PIPE

FUEL PIPE

18

FUEL HOSE W/PROTECTOR L=300

FUEL HOSE W/PROTECTOR L=300

19

CLIP 10

CLIP 10

20

CLIP 9.5

CLIP 9.5

21

HOSE

HOSE

22

WATER NIPPLE

WATER NIPPLE

23

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

24

WARNING LAMP

WARNING LAMP

25

MAIN SWITCH

MAIN SWITCH

26

NEUTRAL SWITCH

NEUTRAL SWITCH

27

NEUTRAL SWITCH ACTUATOR

NEUTRAL SWITCH ACTUATOR

28

STOP SWITCH

STOP SWITCH

29

STOP SWITCH LANYARD

STOP SWITCH LANYARD

30

PTT SWITCH

PTT SWITCH

31

GASKET PTT SWITCH

GASKET PTT SWITCH

32

BRACKET PTT SWITCH

BRACKET PTT SWITCH

33

BOLT

BOLT

34

WASHER 6.5-21-1

WASHER 6.5-21-1

35

STORAGE DECAL

STORAGE DECAL

36

OIL PRESSURE DECAL

OIL PRESSURE DECAL

37

SHIFT LEVER BRACKET COVER

SHIFT LEVER BRACKET COVER

38

SHIFT DECAL (F N R)

SHIFT DECAL (F N R)

39

BOLT

BOLT

40

BOLT

BOLT

41

GROMMET CONTROL CABLE

GROMMET CONTROL CABLE

42

GROMMET THROTTLE CABLE

GROMMET THROTTLE CABLE
