КАРТЕР КОРОБКИ ПЕРЕДАЧ
КАРТЕР КОРОБКИ ПЕРЕДАЧ

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS30B

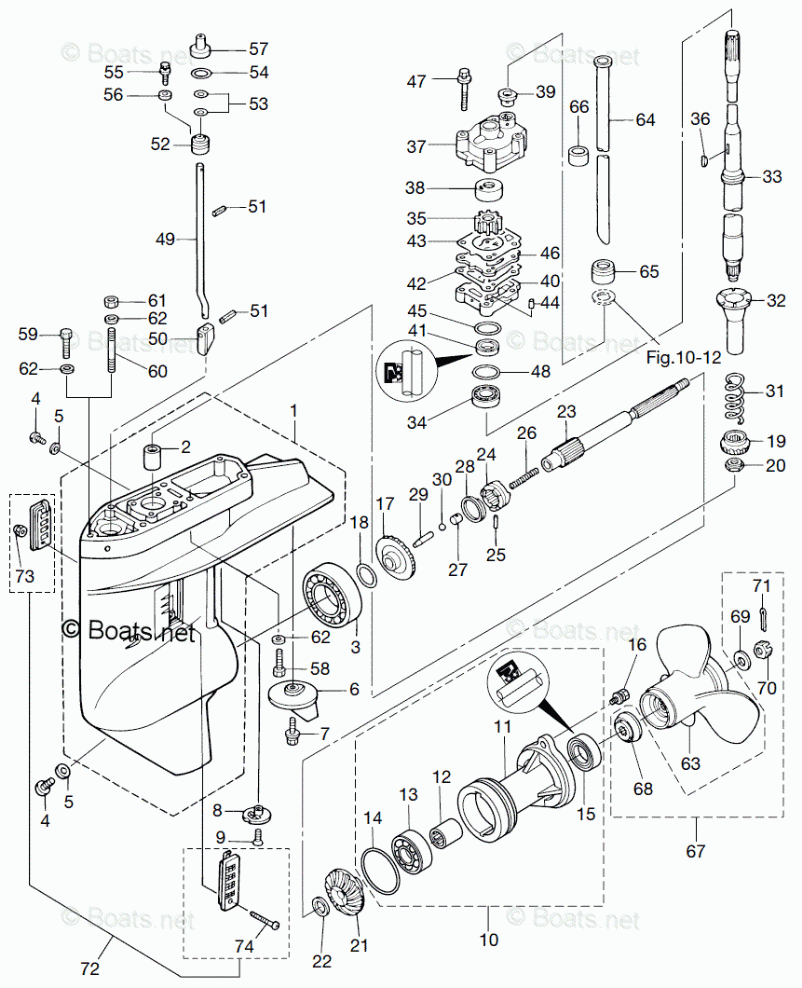

КАРТЕР КОРОБКИ ПЕРЕДАЧ

#

oem код

название

цена

1

GEAR CASE ASSY

GEAR CASE ASSY

2

ROLLER BEARING 20-27-30

ROLLER BEARING 20-27-30

3

BEARING 30205

BEARING 30205

4

WATER PLUG

WATER PLUG

5

GASKET 8.1-15-1

GASKET 8.1-15-1

6

TRIM TAB

TRIM TAB

7

BOLT

BOLT

8

WATER STRAINER

WATER STRAINER

9

SCREW

SCREW

10

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

11

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

12

NEEDLE BEARING 18 - 25 - 25

NEEDLE BEARING 18 - 25 - 25

13

BEARING 6205

BEARING 6205

14

O-RING 3 - 62.5

O-RING 3 - 62.5

15

OIL SEAL 18 - 28 - 8

OIL SEAL 18 - 28 - 8

16

BOLT

BOLT

17

BEVEL GEAR A

BEVEL GEAR A

18

SHIM 26.5 - 34.8 - 0.1

SHIM 26.5 - 34.8 - 0.1

19

BEVEL GEAR B

BEVEL GEAR B

20

NUT BEVEL GEAR B

NUT BEVEL GEAR B

21

BEVEL GEAR C

BEVEL GEAR C

22

WASHER BEVEL GEAR C

WASHER BEVEL GEAR C

23

PROPELLER

PROPELLER

24

CLUTCH

CLUTCH

25

CLUTCH PIN

CLUTCH PIN

26

SPRING CLUTCH

SPRING CLUTCH

27

CLUTCH SPRING RETAINER

CLUTCH SPRING RETAINER

28

SNAP CLUTCH PIN

SNAP CLUTCH PIN

29

PUSH ROD CLUTCH

PUSH ROD CLUTCH

30

STEEL BALL 318

STEEL BALL 318

31

SPRING DRIVE SHAFT

SPRING DRIVE SHAFT

32

PIPE DRIVE SHAFT

PIPE DRIVE SHAFT

33

DRIVE SHAFT S

DRIVE SHAFT S

34

BEARING 32004

BEARING 32004

35

IMPELLER WATER PUMP

IMPELLER WATER PUMP

36

KEY PUMP IMPELLER

KEY PUMP IMPELLER

37

PUMP CASE UPPER (WHITE)

PUMP CASE UPPER (WHITE)

38

LINER PUMP CASE

LINER PUMP CASE

39

SEAL RUBBER LOWER WATER PIPE

SEAL RUBBER LOWER WATER PIPE

40

PUMP CASE LOWER

PUMP CASE LOWER

41

OIL SEAL 17 - 30 - 9

OIL SEAL 17 - 30 - 9

42

GASKET GUIDE PLATE

GASKET GUIDE PLATE

43

GASKET PUMP CASE

GASKET PUMP CASE

44

KNOCK 4 -10

KNOCK 4 -10

45

O-RING 3.5 - 36

O-RING 3.5 - 36

46

GUIDE PLATE WATER PUMP

GUIDE PLATE WATER PUMP

47

BOLT

BOLT

48

SHIM 35 41.9 0.1

SHIM 35 41.9 0.1

49

CAM ROD S

CAM ROD S

50

CLUTCH CAM

CLUTCH CAM

51

SPRING PN 3-12

SPRING PN 3-12

52

BUSHING CAM ROD

BUSHING CAM ROD

53

O-RING 2.4 - 5.8

O-RING 2.4 - 5.8

54

O-RING 3.5 - 21.7

O-RING 3.5 - 21.7

55

BOLT

BOLT

56

WASHER 6-16-1.5

WASHER 6-16-1.5

57

HOLDER CAM ROD

HOLDER CAM ROD

58

BOLT

BOLT

59

BOLT

BOLT

60

STUD

STUD

61

NUT

NUT

62

WASHER

WASHER

63

PROPELLER ASSY (10)

PROPELLER ASSY (10)

64

WATER PIPE S

WATER PIPE S

65

SEAL RUBBER UPPER WATER PIPE

SEAL RUBBER UPPER WATER PIPE

66

RUBBER PIPE

RUBBER PIPE

67

PROPELLER HARDWARE KIT

PROPELLER HARDWARE KIT

68

THRUST HOLDER

THRUST HOLDER

69

WASHER 12.5-32-2.5

WASHER 12.5-32-2.5

70

NUT PROPELLER

NUT PROPELLER

71

SPLIT PIN 3 22

SPLIT PIN 3 22

72

WATER STRAINER SET

WATER STRAINER SET

73

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7

74

SCREW

SCREW
