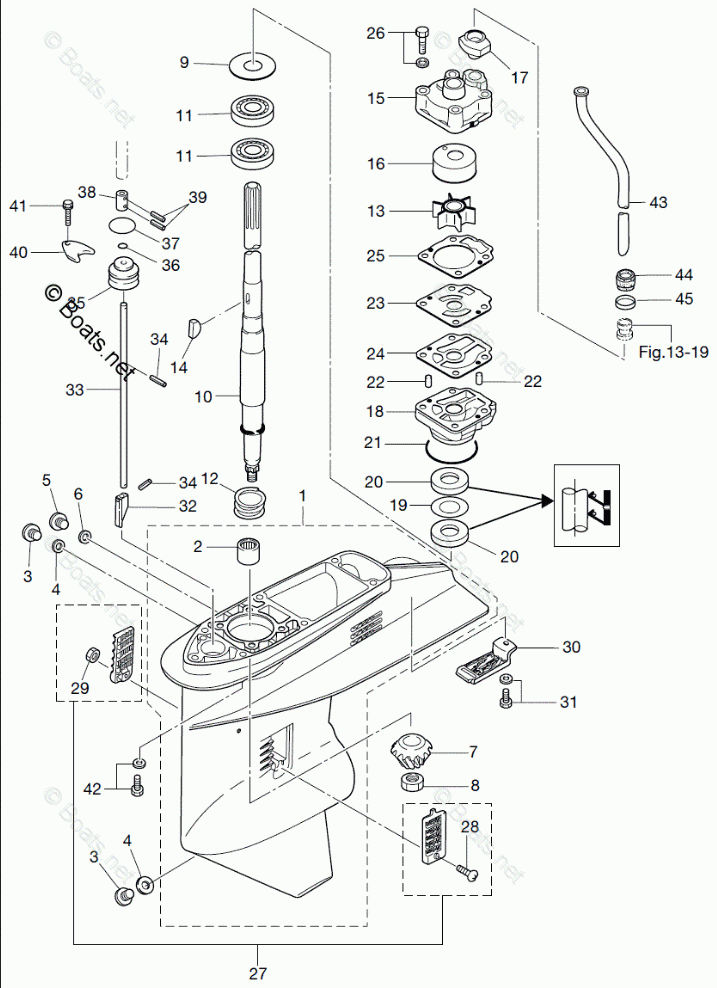

Gear Case (Drive Shaft) MD40/50B2
Gear Case (Drive Shaft) MD40/50B2

Gear Case (Drive Shaft) MD40/50B2

Tohatsu MD50B2

Gear Case (Drive Shaft) MD40/50B2

#

oem код

название

цена

1

GEAR CASE

GEAR CASE

2

NEEDLE BEARING 22-30-30

NEEDLE BEARING 22-30-30

3

WATER PLUG

WATER PLUG

4

GASKET 8.1-15-1

GASKET 8.1-15-1

5

WATER PLUG

WATER PLUG

6

GASKET 10.1-15-1

GASKET 10.1-15-1

7

BEVEL GEAR B

BEVEL GEAR B

8

BEVEL GEAR B NUT

BEVEL GEAR B NUT

9

SHIM 41-51.5-0.1

SHIM 41-51.5-0.1

10

DRIVE SHAFT S

DRIVE SHAFT S

11

BEARING 6304

BEARING 6304

12

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

13

WATER PUMP IMPELLER

WATER PUMP IMPELLER

14

KEY PUMP IMPELLER

KEY PUMP IMPELLER

15

PUMP CASE (UPPER)

PUMP CASE (UPPER)

16

PUMP CASE LINER

PUMP CASE LINER

17

WATER PIPE SEAL (LOWER)

WATER PIPE SEAL (LOWER)

18

PUMP CASE (LOWER)

PUMP CASE (LOWER)

19

SHIM 32.9-26-0.5

SHIM 32.9-26-0.5

20

OIL SEAL 17-33-6

OIL SEAL 17-33-6

21

O-RING 3.2-47

O-RING 3.2-47

22

KNOCK 4 -10

KNOCK 4 -10

23

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

24

GUIDE PLATE GASKET

GUIDE PLATE GASKET

25

PUMP CASE GASKET

PUMP CASE GASKET

26

BOLT

BOLT

27

WATER STRAINER SET

WATER STRAINER SET

28

SCREW

SCREW

29

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7

30

SUB WATER STRAINER

SUB WATER STRAINER

31

BOLT

BOLT

32

CLUTCH CAM

CLUTCH CAM

33

CAM ROD S

CAM ROD S

34

SPRING PN 3-12

SPRING PN 3-12

35

CAM ROD BUSHING

CAM ROD BUSHING

36

O-RING 2.4 - 5.8

O-RING 2.4 - 5.8

37

O-RING 3.5 - 21.7

O-RING 3.5 - 21.7

38

SHIFT ROD JOINT

SHIFT ROD JOINT

39

SPRING PIN 3-12

SPRING PIN 3-12

40

STOPPER

STOPPER

41

BOLT

BOLT

42

BOLT

BOLT

43

WATER PIPE S

WATER PIPE S

44

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

45

COLLAR 18-20-4.5

COLLAR 18-20-4.5
