SHIFT Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

SHIFT

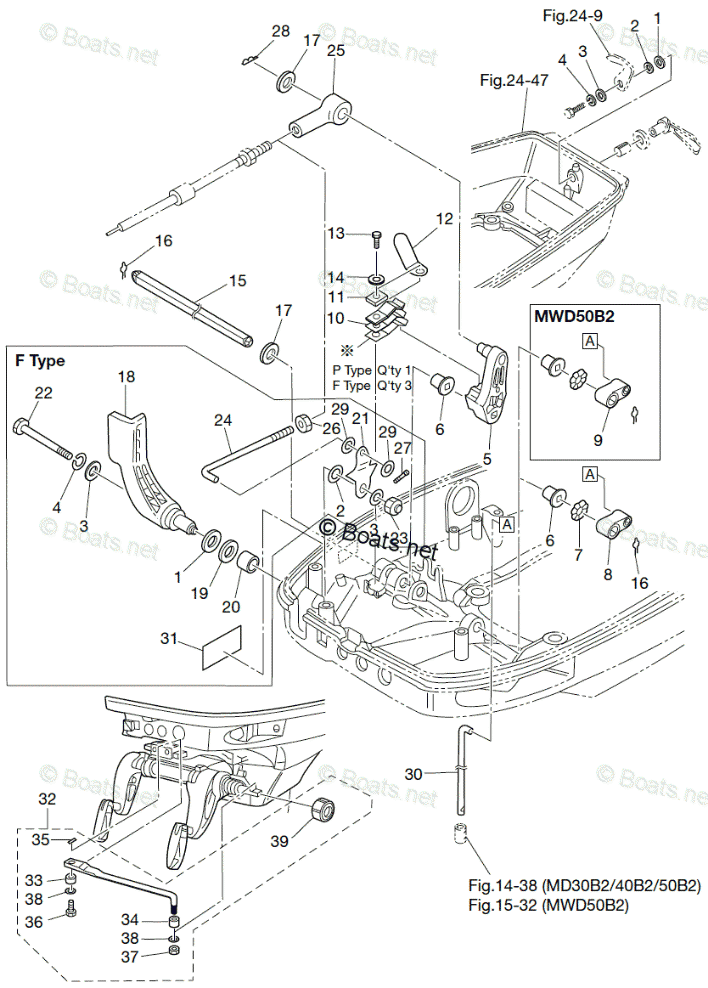

Tohatsu MD50B2

SHIFT

#

oem код

название

цена

1

WASHER 14-22-1

WASHER 14-22-1

2

WAVE WASHER D=14

WAVE WASHER D=14

3

WASHER 6 -16 -1.5

WASHER 6 -16 -1.5

4

SPRING WASHER

SPRING WASHER

5

SHIFT ARM

SHIFT ARM

6

SHIFT LEVER SHAFT BUSHING

SHIFT LEVER SHAFT BUSHING

7

WAVE WASHER D=12

WAVE WASHER D=12

8

SHIFT ROD LEVER

SHIFT ROD LEVER

9

SHIFT ROD LEVER

SHIFT ROD LEVER

10

STOPPER SHIFT LEVER

STOPPER SHIFT LEVER

11

SHIFT LEVER STOPPER

SHIFT LEVER STOPPER

12

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

13

BOLT

BOLT

14

WASHER

WASHER

15

SHIFT SHAFT

SHIFT SHAFT

16

SNAP RETAINER D=8

SNAP RETAINER D=8

17

WASHER 8.5-18-1.6

WASHER 8.5-18-1.6

18

SHIFT LEVER

SHIFT LEVER

19

SEAL RING 13.8-22-5

SEAL RING 13.8-22-5

20

BUSHING 14 -16.5 -17.7

BUSHING 14 -16.5 -17.7

21

SHIFT LEVER B

SHIFT LEVER B

22

BOLT

BOLT

23

NYLON NUT 6-P 1.0

NYLON NUT 6-P 1.0

24

SHIFT LEVER ROD

SHIFT LEVER ROD

25

CABLE JOINT

CABLE JOINT

26

NUT (NO. 10-32VNF)

NUT (NO. 10-32VNF)

27

SPLIT PIN 2-12

SPLIT PIN 2-12

28

SNAP PIN D=8

SNAP PIN D=8

29

WASHER

WASHER

30

SHIFT ROD

SHIFT ROD

31

SHIFT DECAL

SHIFT DECAL

32

DRAG LINK E

DRAG LINK E

33

COLLAR 9.6-13-6.5

COLLAR 9.6-13-6.5

34

COLLAR 9.6-19-6

COLLAR 9.6-19-6

35

SPLIT PIN 2-15

SPLIT PIN 2-15

36

BOLT 3/8-19

BOLT 3/8-19

37

NYLON NUT 3/8

NYLON NUT 3/8

38

WASHER 9.6-18-2

WASHER 9.6-18-2

39

DRAG LINK SEAL RING

DRAG LINK SEAL RING
