Gear Case (Propeller Shaft) MD40/50B2
Gear Case (Propeller Shaft) MD40/50B2

Gear Case (Propeller Shaft) MD40/50B2

Tohatsu MD50B2

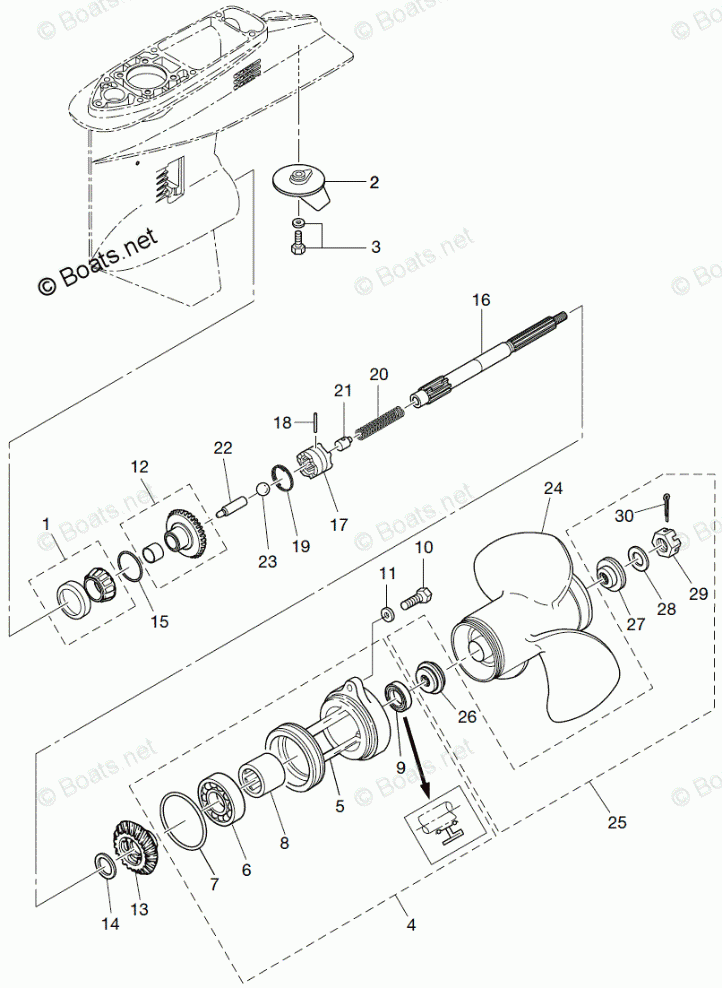

Gear Case (Propeller Shaft) MD40/50B2

#

oem код

название

цена

1

TAPER ROLLER BEARING 32007

TAPER ROLLER BEARING 32007

2

TRIM TAB

TRIM TAB

3

BOLT

BOLT

4

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

5

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

6

BEARING 6007

BEARING 6007

7

O-RING 3.53-69.44

O-RING 3.53-69.44

8

NEEDLE BEARING 22-30-30

NEEDLE BEARING 22-30-30

9

OIL SEAL 22-36-10

OIL SEAL 22-36-10

10

PRE-COATED BOLT 6-25

PRE-COATED BOLT 6-25

11

WASHER

WASHER

12

BEVEL GEAR A

BEVEL GEAR A

13

BEVEL GEAR C

BEVEL GEAR C

14

WASHER 22.1-28-3

WASHER 22.1-28-3

15

SHIM 36-44-0.3

SHIM 36-44-0.3

16

PROPELLER SHAFT

PROPELLER SHAFT

17

CLUTCH

CLUTCH

18

CLUTCH PIN

CLUTCH PIN

19

CLUTCH PIN SNAP

CLUTCH PIN SNAP

20

CLUTCH SPRING

CLUTCH SPRING

21

CLUTCH SPRING RETAINER

CLUTCH SPRING RETAINER

22

PUSH ROD CLUTCH

PUSH ROD CLUTCH

23

STEEL BALL 318

STEEL BALL 318

24

PROPELLER ASSY (13)

PROPELLER ASSY (13)

25

PROPELLER HARDWARE KIT

PROPELLER HARDWARE KIT

26

THRUST HOLDER

THRUST HOLDER

27

PROPELLER STOPPER

PROPELLER STOPPER

28

WASHER 17-32-3

WASHER 17-32-3

29

PROPELLER NUT

PROPELLER NUT

30

SPLIT PIN 3-25

SPLIT PIN 3-25
