CYLINDER & CRANK CASE Каталог оригинальных запчастей для лодочных моторов Tohatsu MD50B2 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2012
MD50B2
CYLINDER & CRANK CASE

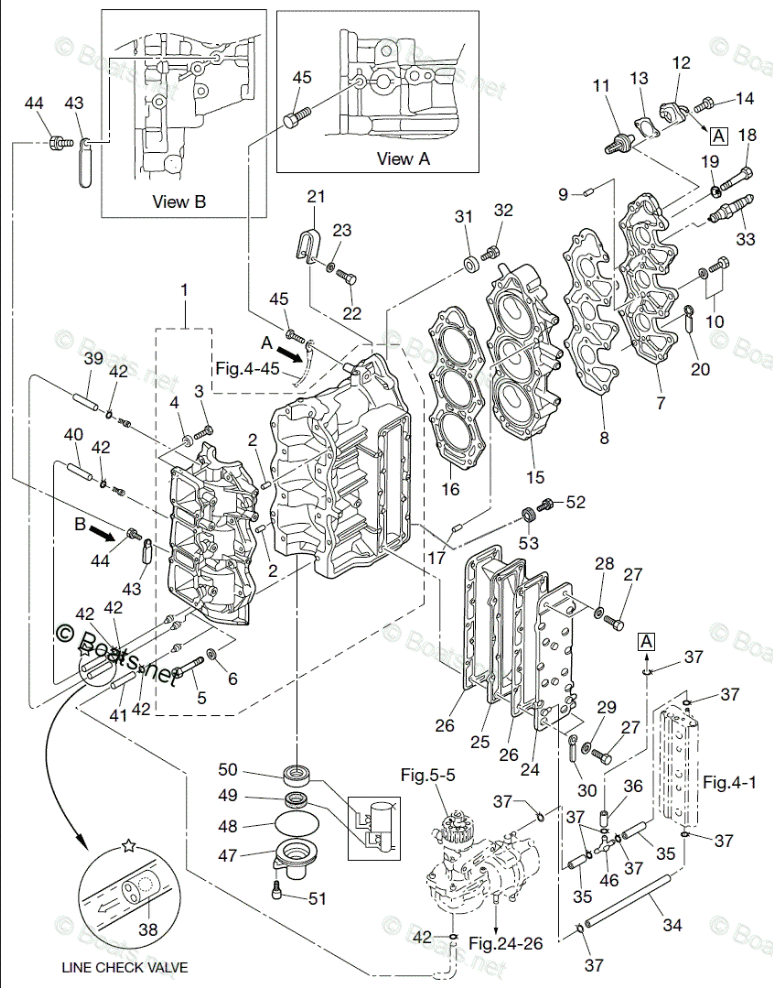

CYLINDER & CRANK CASE

CYLINDER & CRANK CASE

Tohatsu MD50B2

CYLINDER & CRANK CASE

#

oem код

название

цена

1

CYLINDER-CRANK CASE

CYLINDER-CRANK CASE

2

DOWEL PIN 6-12

DOWEL PIN 6-12

3

BOLT

BOLT

4

COLLAR 6.2 - 9 - 9.3

COLLAR 6.2 - 9 - 9.3

5

BOLT

BOLT

6

WASHER

WASHER

7

CYLINDER HEAD COVER

CYLINDER HEAD COVER

8

CYLINDER HEAD COVER GASKET

CYLINDER HEAD COVER GASKET

9

KNOCK 4 -10

KNOCK 4 -10

10

BOLT

BOLT

11

THERMOSTAT

THERMOSTAT

12

THERMOSTAT CAP

THERMOSTAT CAP

13

THERMOSTAT CAP GASKET

THERMOSTAT CAP GASKET

14

BOLT

BOLT

15

CYLINDER HEAD

CYLINDER HEAD

16

CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

17

DOWEL PIN 6-12

DOWEL PIN 6-12

18

BOLT

BOLT

19

WASHER 8.5-19.5-3.2

WASHER 8.5-19.5-3.2

20

CLAMP 8.5-85P

CLAMP 8.5-85P

21

HANGER

HANGER

22

BOLT

BOLT

23

WASHER

WASHER

24

EXHAUST COVER ASSY

EXHAUST COVER ASSY

25

EXHAUST COVER (INNER)

EXHAUST COVER (INNER)

26

EXHAUST COVER GASKET

EXHAUST COVER GASKET

27

BOLT

BOLT

28

WASHER

WASHER

29

WASHER

WASHER

30

CLAMP 6.5-87P

CLAMP 6.5-87P

31

ANODE

ANODE

32

BOLT

BOLT

33

SPARK PLUG (IZFR6Q)

SPARK PLUG (IZFR6Q)

34

RUBBER HOSE

RUBBER HOSE

35

HOSE

HOSE

36

HOSE

HOSE

37

CLIP 10

CLIP 10

38

LINE CHECK VALVE

LINE CHECK VALVE

39

HOSE

HOSE

40

HOSE

HOSE

41

HOSE

HOSE

42

CLIP 7

CLIP 7

43

CLAMP 6.5-47.5P

CLAMP 6.5-47.5P

44

BOLT

BOLT

45

BOLT

BOLT

46

T-NIPPLE (WITH VALVE)

T-NIPPLE (WITH VALVE)

47

CRANK CASE HEAD

CRANK CASE HEAD

48

O-RING 1.7-59

O-RING 1.7-59

49

OIL SEAL 25-40-8

OIL SEAL 25-40-8

50

OIL SEAL 16-28-7

OIL SEAL 16-28-7

51

BOLT

BOLT

52

WATER PLUG

WATER PLUG

53

GASKET 8.1-15-1

GASKET 8.1-15-1
