Tohatsu MD50B2

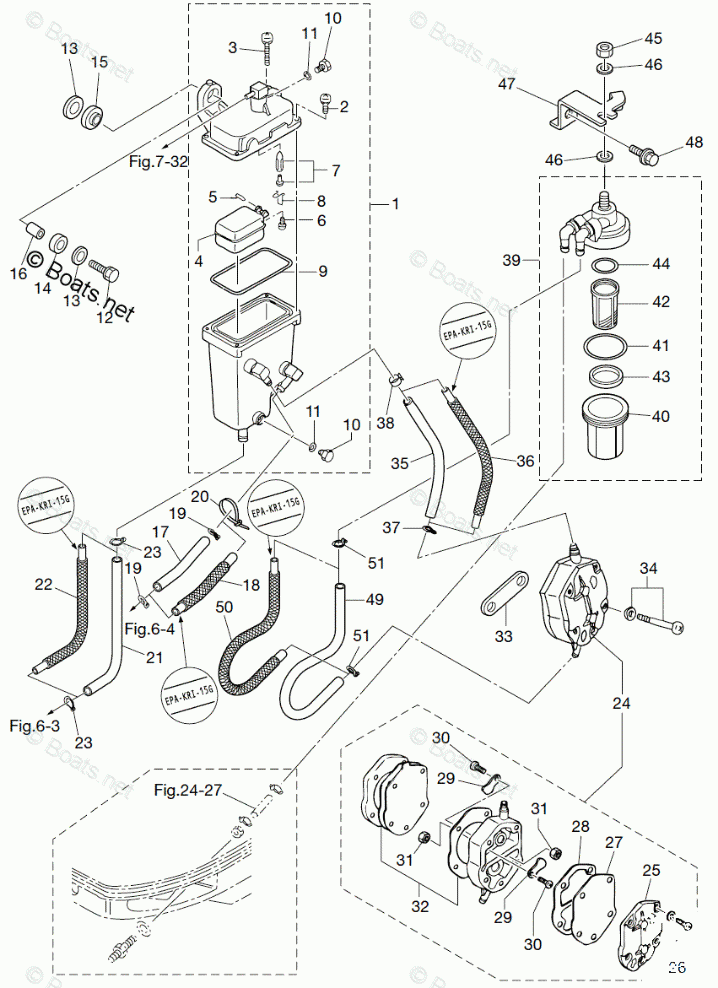

VAPOR SEPARATOR & FUEL LINE

#

oem код

название

цена

1

VAPOR SEPARATOR ASSY

VAPOR SEPARATOR ASSY

2

SCREW

SCREW

3

SCREW

SCREW

4

FLOAT

FLOAT

5

ARM PIN FLOAT

ARM PIN FLOAT

6

SCREW

SCREW

7

FLOAT VALVE

FLOAT VALVE

8

CLIP

CLIP

9

O-RING

O-RING

10

DRAIN SCREW

DRAIN SCREW

11

O-RING

O-RING

12

BOLT

BOLT

13

WASHER 6.5-21-1

WASHER 6.5-21-1

14

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

15

RUBBER MOUNT 8.5-14-2.5

RUBBER MOUNT 8.5-14-2.5

16

SPACER 6.2-9-15.7

SPACER 6.2-9-15.7

17

HOSE

HOSE

18

FUEL HOSE W/PROTECTOR L=75

FUEL HOSE W/PROTECTOR L=75

19

CLIP 10

CLIP 10

20

LEAD WIRD BAND 104

LEAD WIRD BAND 104

21

RUBBER HOSE

RUBBER HOSE

22

FUEL HOSE W/PROTECTOR L=180

FUEL HOSE W/PROTECTOR L=180

23

CLIP 12

CLIP 12

24

FUEL PUMP

FUEL PUMP

25

PUMP COVER

PUMP COVER

26

SCREW

SCREW

27

PUMP DIAPHRAGM

PUMP DIAPHRAGM

28

DIAPHRAGM GASKET B

DIAPHRAGM GASKET B

29

CHECK VALVE

CHECK VALVE

30

SCREW

SCREW

31

NUT

NUT

32

DIAPHRAGM GASKET SET

DIAPHRAGM GASKET SET

33

FUEL PUMP GASKET

FUEL PUMP GASKET

34

BOLT

BOLT

35

RUBBER HOSE

RUBBER HOSE

36

FUEL HOSE W/PROTECTOR L=190

FUEL HOSE W/PROTECTOR L=190

37

CLIP 10

CLIP 10

38

CLIP 9.5

CLIP 9.5

39

FUEL FILTER

FUEL FILTER

40

CUP

CUP

41

O-RING A

O-RING A

42

FILTER

FILTER

43

FLOAT

FLOAT

44

O-RING B

O-RING B

45

NUT

NUT

46

WASHER

WASHER

47

PLATE

PLATE

48

BOLT

BOLT

49

RUBBER HOSE

RUBBER HOSE

50

FUEL HOSE W/PROTECTOR L=260

FUEL HOSE W/PROTECTOR L=260

51

CLIP 10

CLIP 10
