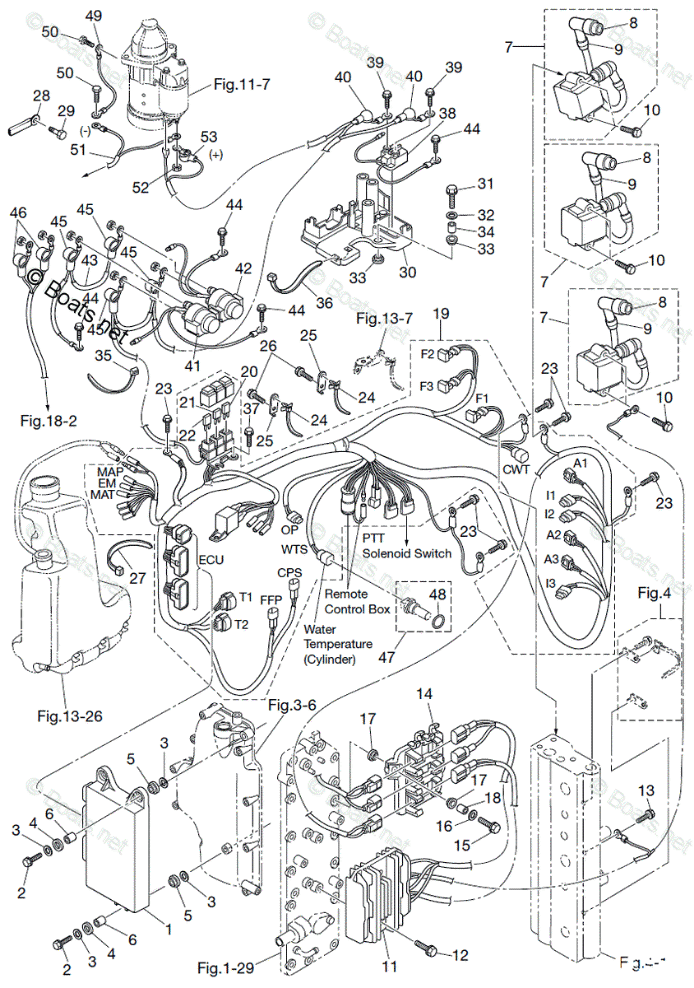

ELECTRIC PARTS (ECU & DIAGRAM)

Tohatsu MD75C2
Tohatsu
#oem кодцена
1
3FY064010
ECU ASSY
2
9101030630
BOLT
3
346671150
WASHER 6.5-21-1
4
346671130
RUBBER MOUNT 8.5-14-2.5
5
3B7069200
RUBBER MOUNT 8.5-14-2.5
6
3T5671140
SPACER 6.2-9-16.6
7
3Y9064691
IGNITION COIL W/R-CAP
8
3H6069990
PLUG CAP (WITH RESISTANCE)
9
369843980
LEAD WIRE BAND 150
10
9101035630
BOLT
11
3FW760600
RECTIFIER COMPLETE
12
9101035625
BOLT
13
9101035612
BOLT
14
3FW062810
CABLE TERMINAL HOLDER
15
9101030620
BOLT
16
3C8663080
WASHER 6 -16 -1.5
17
3F3069200
RUBBER MOUNT 8.5 -12 - 2
18
3T5760790
COLLAR 6.2-9-10.7
19
3FW761100
CORD ASSY
20
3T5762490
FUSE 30A
21
3Y9762480
FUSE 25A
22
3T5762460
FUSE 15A
23
9101035612
BOLT
24
3T1843980
LEAD WIRE BAND 170
25
3FW761740
STAY
26
9101035612
BOLT
27
369843980
LEAD WIRE BAND 150
28
309069720
CLAMP 6.5-47.5P
29
9101035612
BOLT
30
3FW069010
BRACKET
31
9101030625
BOLT
32
3C8663080
WASHER 6 -16 -1.5
33
3F3069200
RUBBER MOUNT 8.5 -12 - 2
34
3T5760790
COLLAR 6.2-9-10.7
35
3AC760910
LEAD WIRE BAND 200
36
3T5843980
LEAD WIRD BAND 104
37
3T5064370
TAPPING SCREW 6-16
38
3H8760400
STARTER SOLENOID
39
9101035608
BOLT
40
3Y1761450
TERMINAL CAP
41
3C8725800
SOLENOID SWITCH A PTT
42
3C8725810
SOLENOID SWITCH B PTT
43
3T5761421
GROUND CABLE L=140&285
44
9101035612
BOLT
45
3Y1761450
TERMINAL CAP
46
3A3761450
CAP CORD
47
3Y9725140
WATER TEMP SENSOR
48
3G9661360
O-RING 2-10
49
3R3761410
STARTER CORD (L=270)
50
9101035612
BOLT
51
3FW761200
BATTERY CABLE
52
9301030800
NUT
53
3FW761450
TERMINAL CAP 15.5-18.28
