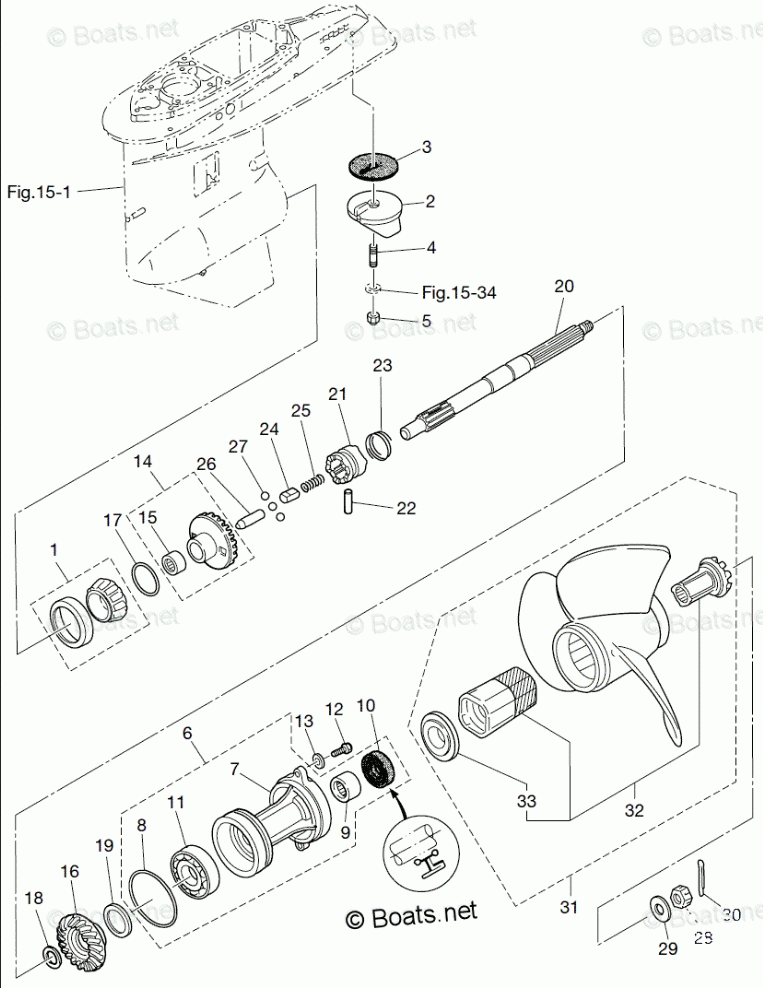

GEAR CASE (PROPELLER SHAFT)
GEAR CASE (PROPELLER SHAFT)

GEAR CASE (PROPELLER SHAFT)

Tohatsu MD75C2

GEAR CASE (PROPELLER SHAFT)

#

oem код

название

цена

1

TAPER ROLLER BEARING 30209

TAPER ROLLER BEARING 30209

2

TRIM TAB

TRIM TAB

3

TRIM TAB

TRIM TAB

4

STUD BOLT

STUD BOLT

5

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

6

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

7

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

8

O-RING 3.1-94.4

O-RING 3.1-94.4

9

NEEDLE BEARING 30-40-30

NEEDLE BEARING 30-40-30

10

OIL SEAL 30-50-12

OIL SEAL 30-50-12

11

BEARING 6208

BEARING 6208

12

PRE-COATED BOLT 8-30

PRE-COATED BOLT 8-30

13

WASHER

WASHER

14

BEVEL GEAR ASSY (A)

BEVEL GEAR ASSY (A)

15

NEEDLE BEARING 25-32-26

NEEDLE BEARING 25-32-26

16

BEVEL GEAR C

BEVEL GEAR C

17

SHIM 47-57-0.15

SHIM 47-57-0.15

18

BEVEL GEAR C WASHER

BEVEL GEAR C WASHER

19

SHIM 42-50-0.15

SHIM 42-50-0.15

20

PROPELLER SHAFT

PROPELLER SHAFT

21

CLUTCH

CLUTCH

22

CLUTCH PIN

CLUTCH PIN

23

CLUTCH PIN SNAP

CLUTCH PIN SNAP

24

SPRING RETAINER L=30.5

SPRING RETAINER L=30.5

25

CLUTCH SPRING

CLUTCH SPRING

26

PUSH ROD

PUSH ROD

27

BALL

BALL

28

PROPELLER NUT

PROPELLER NUT

29

WASHER 17-32-3

WASHER 17-32-3

30

SPLIT PIN 3-25

SPLIT PIN 3-25

31

PROPELLER ASSY (11)

PROPELLER ASSY (11)

32

PROPELLER HUB KIT

PROPELLER HUB KIT

33

FORWARD THRUST WASHER

FORWARD THRUST WASHER
