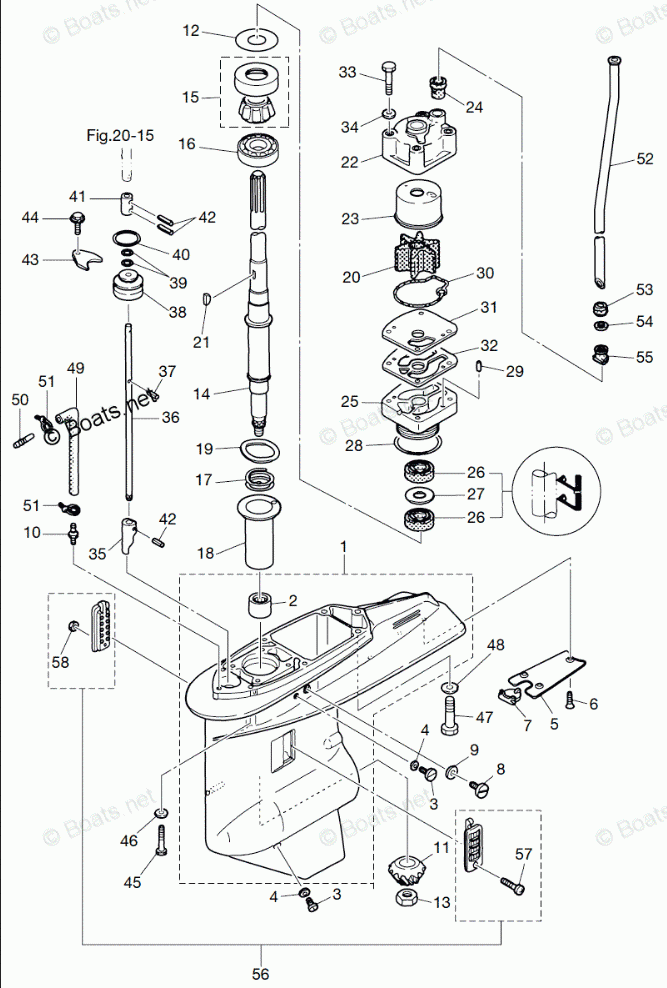

GEAR CASE, DRIVE SHAFT
GEAR CASE, DRIVE SHAFT

GEAR CASE, DRIVE SHAFT

Tohatsu MD75C2

GEAR CASE, DRIVE SHAFT

#

oem код

название

цена

1

GEAR CASE

GEAR CASE

2

NEEDLE BEARING 28.6-38.1-31.8

NEEDLE BEARING 28.6-38.1-31.8

3

WATER PLUG

WATER PLUG

4

GASKET 8.1-15-1

GASKET 8.1-15-1

5

GEAR CASE PLATE

GEAR CASE PLATE

6

SCREW

SCREW

7

GEAR CASE PLATE PLUG

GEAR CASE PLATE PLUG

8

WATER PLUG

WATER PLUG

9

GASKET 10.1-15-1

GASKET 10.1-15-1

10

NIPPLE 6-1/8

NIPPLE 6-1/8

11

BEVEL GEAR B

BEVEL GEAR B

12

SHIM 52-60.5-0.3

SHIM 52-60.5-0.3

13

BEVEL GEAR B NUT

BEVEL GEAR B NUT

14

DRIVE SHAFT (L)

DRIVE SHAFT (L)

15

BEARING 0506

BEARING 0506

16

BEARING 16007

BEARING 16007

17

DRIVE SHAFT SPRING

DRIVE SHAFT SPRING

18

DRIVE SHAFT SPRING GUIDE

DRIVE SHAFT SPRING GUIDE

19

WAVE WASHER D=47.2

WAVE WASHER D=47.2

20

WATER PUMP IMPELLER

WATER PUMP IMPELLER

21

WATER PUMP IMPELLER KEY

WATER PUMP IMPELLER KEY

22

PUMP CASE (UPPER)

PUMP CASE (UPPER)

23

PUMP CASE LINER

PUMP CASE LINER

24

WATER PIPE SEAL (LOWER)

WATER PIPE SEAL (LOWER)

25

PUMP CASE (LOWER)

PUMP CASE (LOWER)

26

OIL SEAL 22-42-7

OIL SEAL 22-42-7

27

SHIM 35 41.9 0.5

SHIM 35 41.9 0.5

28

O-RING 3.1-54.4

O-RING 3.1-54.4

29

KNOCK 4 -10

KNOCK 4 -10

30

PUMP CASE SEAL

PUMP CASE SEAL

31

WATER PUMP GUIDE PLATE

WATER PUMP GUIDE PLATE

32

GUIDE PLATE GASKET

GUIDE PLATE GASKET

33

BOLT

BOLT

34

WASHER

WASHER

35

CLUTCH CAM

CLUTCH CAM

36

CAM ROD L

CAM ROD L

37

SPRING PIN 3.5-10

SPRING PIN 3.5-10

38

CAM ROD BUSHING

CAM ROD BUSHING

39

O-RING 1.9-6.8

O-RING 1.9-6.8

40

O-RING 3.5-27.7

O-RING 3.5-27.7

41

SHIFT ROD JOINT

SHIFT ROD JOINT

42

SPRING PIN 3.5 -16

SPRING PIN 3.5 -16

43

STOPPER

STOPPER

44

BOLT

BOLT

45

BOLT 8-35

BOLT 8-35

46

WASHER

WASHER

47

BOLT 10-40

BOLT 10-40

48

WASHER

WASHER

49

SPEEDOMETER PIPE L

SPEEDOMETER PIPE L

50

NIPPLE 6-6

NIPPLE 6-6

51

LEAD WIRE BAND 100

LEAD WIRE BAND 100

52

WATER PIPE L

WATER PIPE L

53

WATER PIPE SEAL (UPPER)

WATER PIPE SEAL (UPPER)

54

COLLAR 18-20-4.5

COLLAR 18-20-4.5

55

WATER PIPE AUXILIARY MOUNT

WATER PIPE AUXILIARY MOUNT

56

WATER STRAINER SET

WATER STRAINER SET

57

SCREW

SCREW

58

NYLON NUT 4P-0.7

NYLON NUT 4P-0.7
