CYLINDER & CRANK CASE Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2012)

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2012
MD115A2
CYLINDER & CRANK CASE

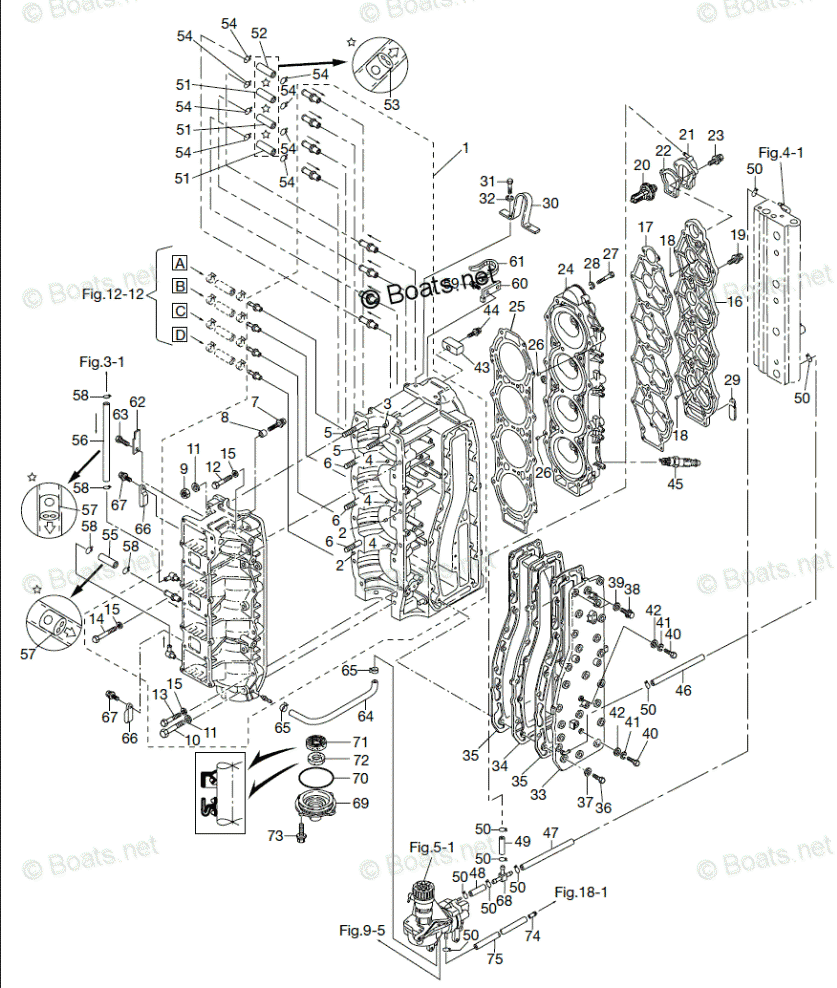

CYLINDER & CRANK CASE

CYLINDER & CRANK CASE

Tohatsu MD115A2

oem код

название

цена

3T1B011001

CYL BLOCK & CRANKCASE ASSY

345011110

DOWEL PIN 6-12

3T9001170

MAIN BEARING DOWEL PIN

345001170

MAIN BEARING DOWEL PIN

STUD BOLT

STUD BOLT

BOLT

COLLAR 6.2-9-3

NUT 10-P 1.25

BOLT

WASHER 10.5-20-3.2

BOLT

BOLT

BOLT

WASHER 8.5-19.5-3.2

CYLINDER HEAD COVER

CYLINDER HEAD COVER GASKET

KNOCK 4 -10

BOLT

THERMOSTAT

THERMOSTAT CAP

THERMOSTAT CAP GASKET

BOLT

CYLINDER HEAD

CYLINDER HEAD GASKET

KNOCK 4 -10

BOLT

WASHER 8.5-19.5-3.2

CLAMP 8.5-85P

HANGER

BOLT

SPRING WASHER

EXHAUST COVER ASSY

EXHAUST COVER (INNER)

EXHAUST COVER GASKET

BOLT

WASHER

BOLT

WASHER

BOLT

SPRING WASHER

WASHER

ANODE

BOLT

SPARK PLUG NGK : IZFR5J

HOSE

HOSE

HOSE

HOSE

CLIP 10

HOSE

HOSE

LINE CHECK VALVE

CLIP 7

HOSE

HOSE

LINE CHECK VALVE

CLIP 7

BOLT

LEAD WIRE BAND STAY

LEAD WIRE BAND 170

CLAMP

BOLT

PIPE

CLIP 6.9

CLAMP 6.5-14L

BOLT

T-NIPPLE (WITH VALVE)

CRANKCASE HEAD

O-RING 2-74.5

OIL SEAL 35-58-9

OIL SEAL 19.6-35-10

BOLT

WATER NIPPLE

HOSE
