AIR RAIL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

AIR RAIL

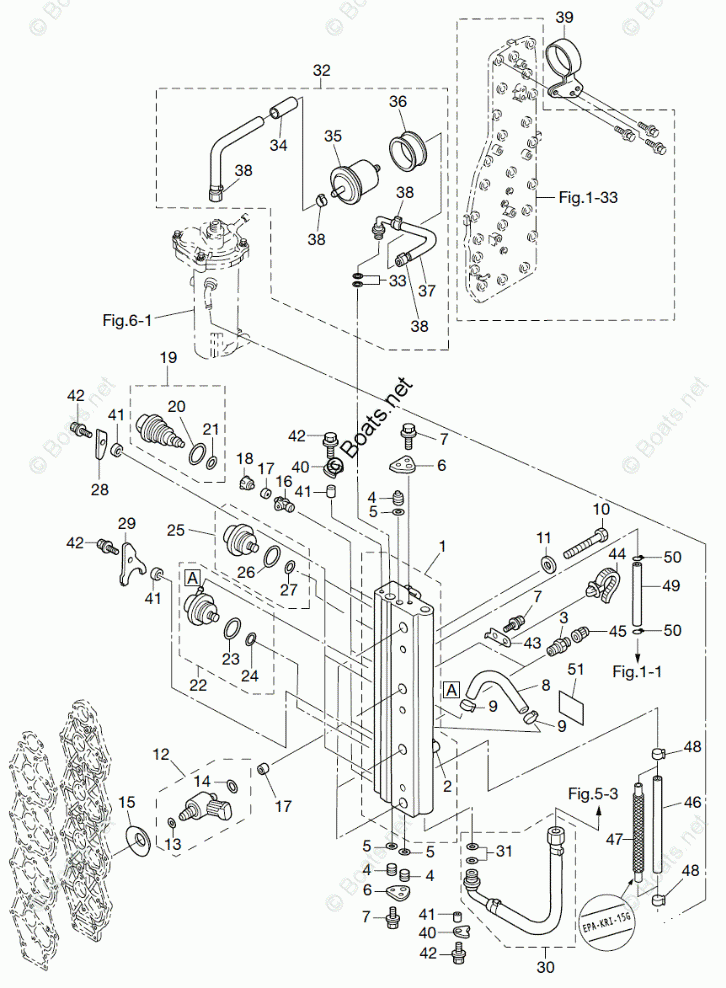

Tohatsu MD115A2

AIR RAIL

#

oem код

название

цена

1

AIR RAIL

AIR RAIL

2

L-NIPPLE

L-NIPPLE

3

VALVE

VALVE

4

PLUG 10.5

PLUG 10.5

5

O-RING 1.9-6.8

O-RING 1.9-6.8

6

PLUG STOPPER

PLUG STOPPER

7

BOLT

BOLT

8

HOSE

HOSE

9

CLAMP 29/64

CLAMP 29/64

10

BOLT

BOLT

11

WASHER

WASHER

12

AIR INJECTOR COMPLETE

AIR INJECTOR COMPLETE

13

O-RING 5-52 ( 1-10)

O-RING 5-52 ( 1-10)

14

O-RING 2.4-9.6

O-RING 2.4-9.6

15

AIR INJECTOR DISC SPRING

AIR INJECTOR DISC SPRING

16

FUEL INJECTOR INSERT

FUEL INJECTOR INSERT

17

COMPRESSION SEAL

COMPRESSION SEAL

18

FUEL INJECTOR ADAPTER

FUEL INJECTOR ADAPTER

19

FUEL INJECTOR

FUEL INJECTOR

20

O-RING 2.8-20.2

O-RING 2.8-20.2

21

O-RING 3.5-7.5

O-RING 3.5-7.5

22

FUEL REGULATOR

FUEL REGULATOR

23

O-RING 2.5-20

O-RING 2.5-20

24

O-RING 2.5-5

O-RING 2.5-5

25

AIR REGULATOR ASSY

AIR REGULATOR ASSY

26

O-RING 2.5-20

O-RING 2.5-20

27

O-RING 2.5-5

O-RING 2.5-5

28

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

29

FUEL INJECTOR HOLDING PLATE

FUEL INJECTOR HOLDING PLATE

30

AIR HOSE ASSY

AIR HOSE ASSY

31

O-RING 1.9-9.8

O-RING 1.9-9.8

32

FUEL HOSE ASSY

FUEL HOSE ASSY

33

O-RING 1.9-9.8

O-RING 1.9-9.8

34

PROTECT TUBE

PROTECT TUBE

35

FUEL FILTER

FUEL FILTER

36

FUEL FILTER RUBBER MOUNT

FUEL FILTER RUBBER MOUNT

37

PROTECTOR 18-170

PROTECTOR 18-170

38

CLAMP 21/32

CLAMP 21/32

39

FUEL FILTER BAND

FUEL FILTER BAND

40

NIPPLE HOLDING PLATE

NIPPLE HOLDING PLATE

41

COLLAR 6.7-12.7-3

COLLAR 6.7-12.7-3

42

BOLT

BOLT

43

LEAD WIRE BAND STAY

LEAD WIRE BAND STAY

44

LEAD WIRE BAND 170

LEAD WIRE BAND 170

45

VALVE CAP

VALVE CAP

46

HOSE

HOSE

47

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

48

CLIP 9.5

CLIP 9.5

49

HOSE

HOSE

50

CLIP 10

CLIP 10

51

AIR RAIL DECAL

AIR RAIL DECAL
