BOTTOM COWL Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

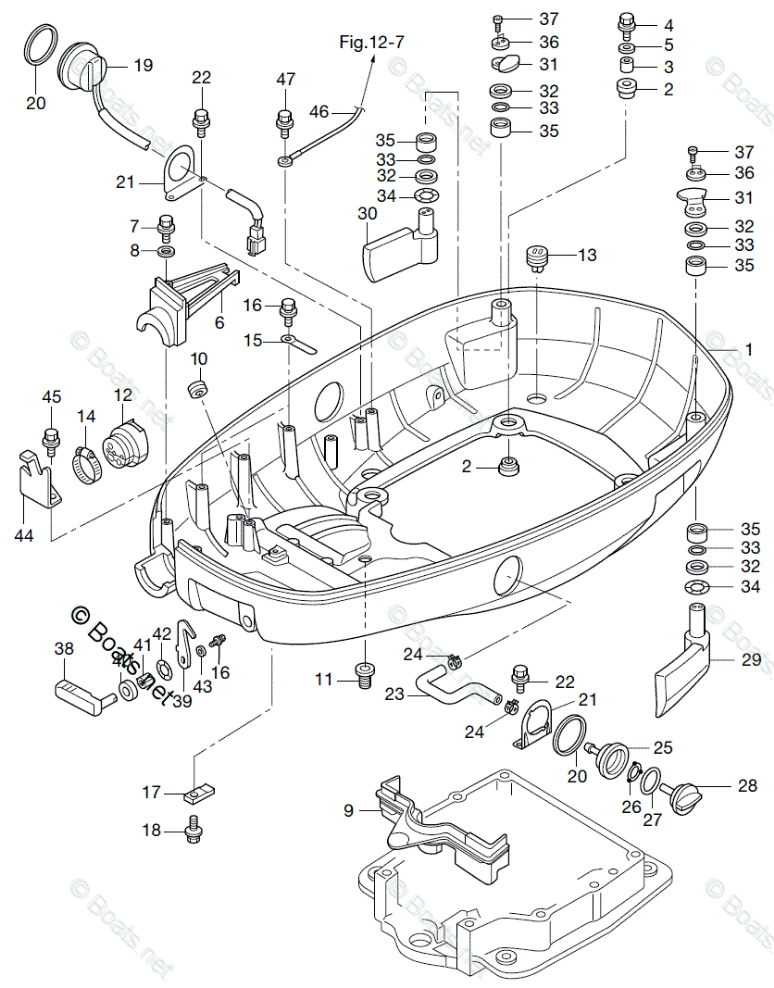

BOTTOM COWL

Tohatsu MD115A2

BOTTOM COWL

#

oem код

название

цена

1

BOTTOM COWL

BOTTOM COWL

2

RUBBER MOUNT 12-18-2.5

RUBBER MOUNT 12-18-2.5

3

SPACER 8.4-12-17

SPACER 8.4-12-17

4

BOLT

BOLT

5

WASHER 8.5-24-1.5

WASHER 8.5-24-1.5

6

CORD CLAMP

CORD CLAMP

7

BOLT

BOLT

8

WASHER

WASHER

9

BOTTOM COWL GROMMET A

BOTTOM COWL GROMMET A

10

POWER TRIM & TILT CORD GROMMET

POWER TRIM & TILT CORD GROMMET

11

GROMMET 17 - 3

GROMMET 17 - 3

12

GROMMET

GROMMET

13

GROMMET

GROMMET

14

CLAMP 60

CLAMP 60

15

CLAMP 6.5-67P

CLAMP 6.5-67P

16

BOLT

BOLT

17

POWER TRIM & TILT CORD CLAMP

POWER TRIM & TILT CORD CLAMP

18

BOLT

BOLT

19

PTT SWITCH

PTT SWITCH

20

GASKET PTT SWITCH

GASKET PTT SWITCH

21

PTT SWITCH BRACKET

PTT SWITCH BRACKET

22

BOLT (OR 910113-5616)

BOLT (OR 910113-5616)

23

FLUSHING HOSE

FLUSHING HOSE

24

CLIP 17.8

CLIP 17.8

25

FLUSHING CONNECTOR

FLUSHING CONNECTOR

26

SEAL RING

SEAL RING

27

O-RING 3.1-24.4

O-RING 3.1-24.4

28

FLUSHING CONNECTOR CAP

FLUSHING CONNECTOR CAP

29

HOOK LEVER (LEFT)

HOOK LEVER (LEFT)

30

HOOK LEVER (RIGHT)

HOOK LEVER (RIGHT)

31

COVER HOOK

COVER HOOK

32

WASHER

WASHER

33

O-RING 4 3.5-18

O-RING 4 3.5-18

34

WAVE WASHER

WAVE WASHER

35

BUSHING 18-24-19

BUSHING 18-24-19

36

WASHER

WASHER

37

BOLT

BOLT

38

HOOK LEVER

HOOK LEVER

39

COVER HOOK

COVER HOOK

40

SEAL RING

SEAL RING

41

HOOK LEVER BUSHING 14-16-1.8

HOOK LEVER BUSHING 14-16-1.8

42

WAVE WASHER D=14

WAVE WASHER D=14

43

WASHER 6-16-1.5

WASHER 6-16-1.5

44

CABLE CLIP

CABLE CLIP

45

BOLT

BOLT

46

GROUND CABLE

GROUND CABLE

47

BOLT

BOLT
