GEAR CASE (PROPELLER SHAFT) Каталог оригинальных запчастей для лодочных моторов Tohatsu MD115A2 (2012)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2012
MD115A2
GEAR CASE (PROPELLER SHAFT)
GEAR CASE (PROPELLER SHAFT)

GEAR CASE (PROPELLER SHAFT)

Tohatsu MD115A2

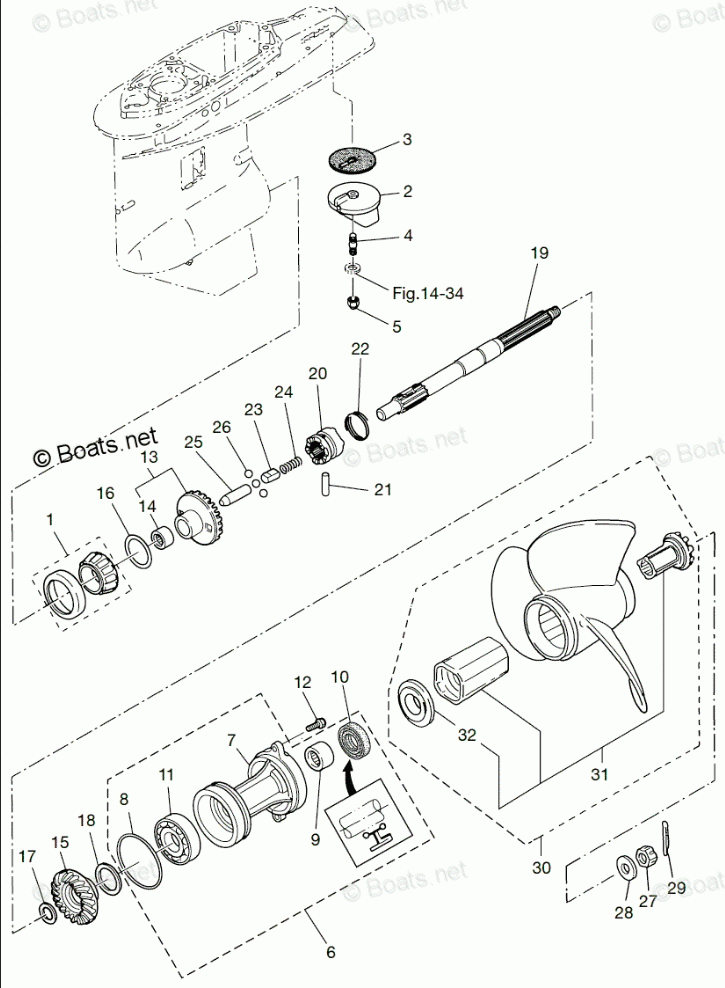

GEAR CASE (PROPELLER SHAFT)

#

oem код

название

цена

1

TAPER ROLLER BEARING 30209

TAPER ROLLER BEARING 30209

2

TRIM TAB

TRIM TAB

3

TRIM TAB

TRIM TAB

4

STUD BOLT

STUD BOLT

5

NYLON NUT 8P-1.25

NYLON NUT 8P-1.25

6

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

7

PROPELLER SHAFT HOUSING

PROPELLER SHAFT HOUSING

8

O-RING 3.1-94.4

O-RING 3.1-94.4

9

NEEDLE BEARING 30-40-30

NEEDLE BEARING 30-40-30

10

OIL SEAL 30-50-12

OIL SEAL 30-50-12

11

BEARING 6208

BEARING 6208

12

PRE-COATED BOLT 8-30

PRE-COATED BOLT 8-30

13

BEVEL GEAR A

BEVEL GEAR A

14

NEEDLE BEARING 25-32-26

NEEDLE BEARING 25-32-26

15

BEVEL GEAR C

BEVEL GEAR C

16

SHIM 47-57-0.15

SHIM 47-57-0.15

17

BEVEL GEAR C WASHER

BEVEL GEAR C WASHER

18

SHIM 42-50-0.15

SHIM 42-50-0.15

19

PROPELLER SHAFT

PROPELLER SHAFT

20

CLUTCH

CLUTCH

21

CLUTCH PIN

CLUTCH PIN

22

CLUTCH PIN SNAP

CLUTCH PIN SNAP

23

SPRING RETAINER L=30.5

SPRING RETAINER L=30.5

24

CLUTCH SPRING

CLUTCH SPRING

25

PUSH ROD

PUSH ROD

26

BALL

BALL

27

PROPELLER NUT

PROPELLER NUT

28

WASHER 17-32-3

WASHER 17-32-3

29

SPLIT PIN 3-25

SPLIT PIN 3-25

30

PROPELLER ASSY (11)

PROPELLER ASSY (11)

31

PROPELLER HUB KIT

PROPELLER HUB KIT

32

FORWARD THRUST WASHER

FORWARD THRUST WASHER
