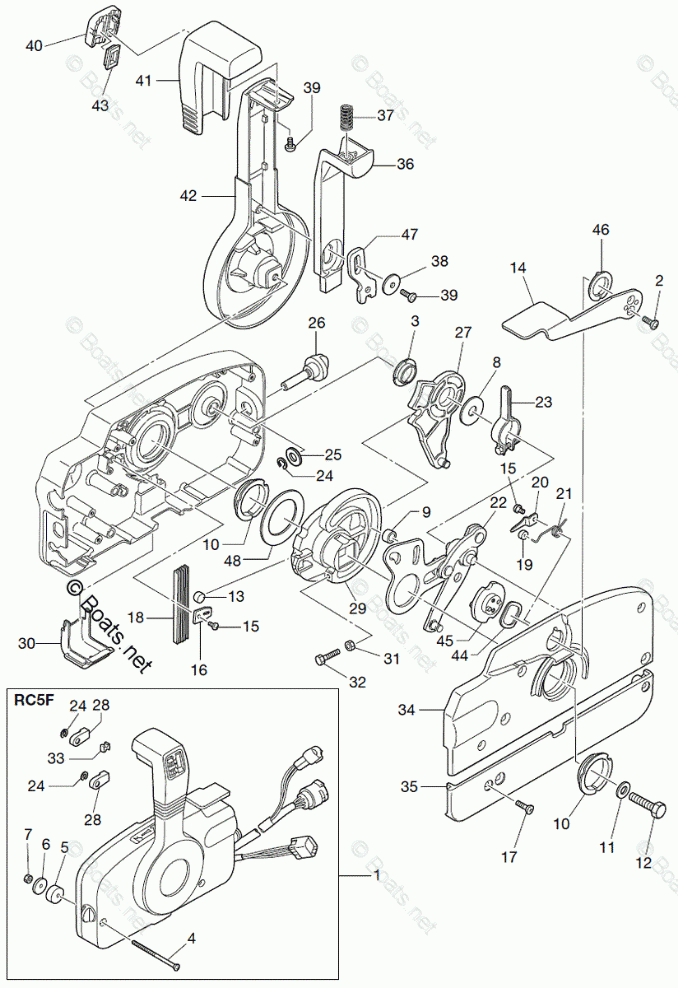

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MD115A2
Tohatsu
#oem кодцена
1
3GFQ845000
REMOTE CONTROL HEAD ASSY (RC5F)
2
9216030512
SCREW
3
3A3844320
BUSHING
4
3A3843750
SCREW
5
3A3843740
SPACER
6
353843710
WASHER
7
9301030600
NUT
8
3A3843830
WASHER
9
3A3844210
ROLLER
10
3A3844310
BUSHING
11
9401030800
WASHER
12
3A3844420
BOLT
13
353843880
DETENT ROLLER
14
3B7Q843120
FREE THROTTLE LEVER
15
9215030406
SCREW
16
3A3844230
DETENT RETAINER
17
9216030518
SCREW
18
3A3843070
DETENT SPRING
19
3A3844240
FREE THROTTLE ROLLER
20
3A3844260
ROLLER RETAINER
21
3A3844250
FREE THROTTLE SPRING
22
3A3843651
THROTTLE ARM
23
3A3844280
THROTTLE FRICTION ARM
24
9453030600
E-RING D=6
25
353843940
WASHER
26
3A3844270
ADJUST SCREW
27
3A3843810
SHIFT GEAR ASSY
28
3A3833142
CABLE TERMINAL
29
3A3843642
DRIVE GEAR
30
3A3844290
WIRE COVER
31
9301030500
NUT
32
9101030525
BOLT
33
3A3843760
GROMMET
34
3B7Q844410
REAR HOUSING
35
3B7Q843660
REAR PANEL
36
3A3844010
NEUTRAL LOCK ARM
37
3A3844010
NEUTRAL LOCK ARM
38
3A3844010
NEUTRAL LOCK ARM
39
9215030510
SCREW
40
3A3844510
TILT SWITCH COVER
41
3A3844040
GRIP
42
3B7Q843430
CONTROL LEVER
43
3A3844520
TILT SWITCH PLUG
44
3A3843680
WAVE WASHER
45
3A3843910
FREE THROTTLE DRUM
46
3A3844350
BUSHING
47
3A3844060
PLATE
48
3A3844220
THRUST PLATE
