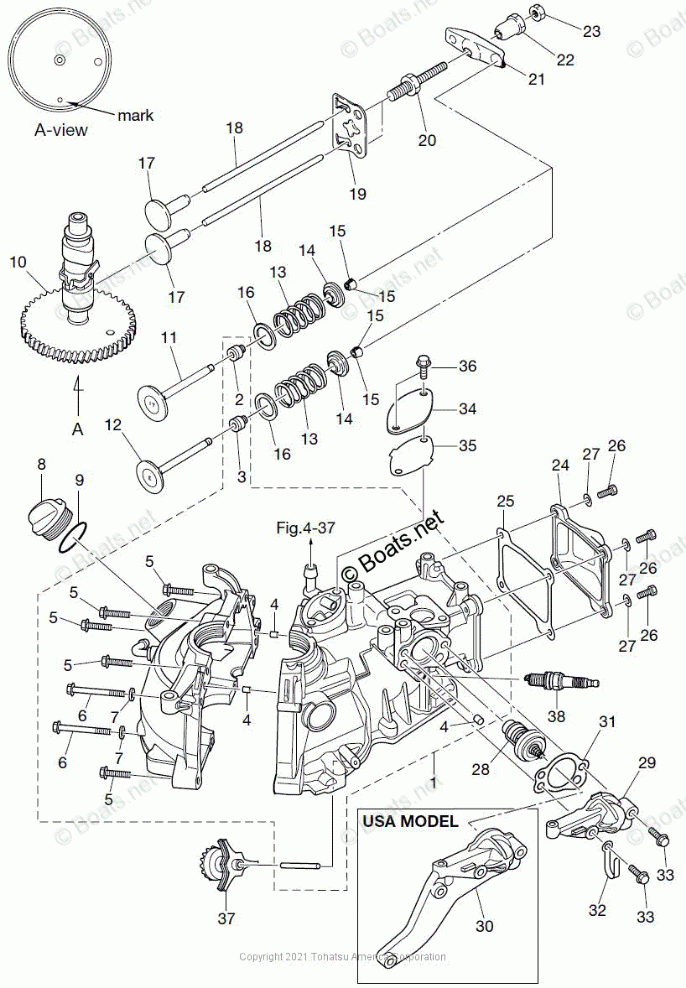

CYLINDER & CRANK CASE

Tohatsu MFS3.5C
Tohatsu
#oem кодцена
1-25
3AB010241M
CYLINDER HEAD COVER GASKET
1-23
3H6079370M
ADJUST NUT (4.0mm THICK)
1-37
3AB076400M
SLINGER
1-13
3AE072030M
VALVE SPRING
1-28
3H6010300M
THERMOSTAT
1-18
3H6072320M
PUSH ROD
1-20
3H6072340M
BOLT, PIVOT
1-22
3H6072360M
PIVOT, ROCKER ARM
1-15
3KY079230M
COTTER
1-34
3AB074310M
BREATHER CHAMBER COVER
1-9
3R0074220M
O-RING
1-2
3R3072040M
SEAL, INT VALVE STEM
1-3
3R3072060M
SEAL, EXH VALVE STEM
1-6
9161F90675M
BOLT
1-7
9401E30600M
WASHER (10 MULTIPLE)
1-14
3GT079210M
RETAINER *{/* WHEN REPLACING 3AE079210M USE USE 3GT079210M AND 3KY079230M*/}*
1-16
3GR079050M
SEAT, VALVE SPRING
1-35
3AB074320M
BREATHER CHAMBER COVER GASKET
1-21
3AB072350M
ROCKER ARM
1-24
3ABB010210
CYLINDER HEAD COVER
1-26
9101030616M
BOLT (10 MULTIPLE)
1-29
3ABB010310
THERMOSTAT CAP
1-27
3C8663080M
WASHER (10 MULTIPLE)
1-30
3GTB010310
THERMOSTAT CAP
1-1
3GTB011002
CYLINDER CRANKCASE-NO LONGER AVAILABLE *{/*PART IS NO LONGER AVAILABLE*/}*
1-8
3R0710151M
FILLER CAP, ENGINE OIL
1-12
3V1072020M
EXHAUST VALVE
1-33
9101035630M
BOLT (10 MULTIPLE)
1-19
3AB072330M
PUSH ROD PLATE
1-36
9101E35616M
BOLT & WASHER (10 MULTIPLE)
1-5
9101E35635M
BOLT & WASHER (10 MULTIPLE)
1-38
970101103M
SPARK PLUG, NGK DCPR6E, (10 MULTIPLE)
1-4
345011110M
DOWEL PIN 6-12
1-31
3AB010320M
THERMOSTAT CAP GASKET
1-11
3AB072010M
INTAKE VALVE
1-17
3AB072310M
LIFTER
1-32
398069721M
CLAMP
