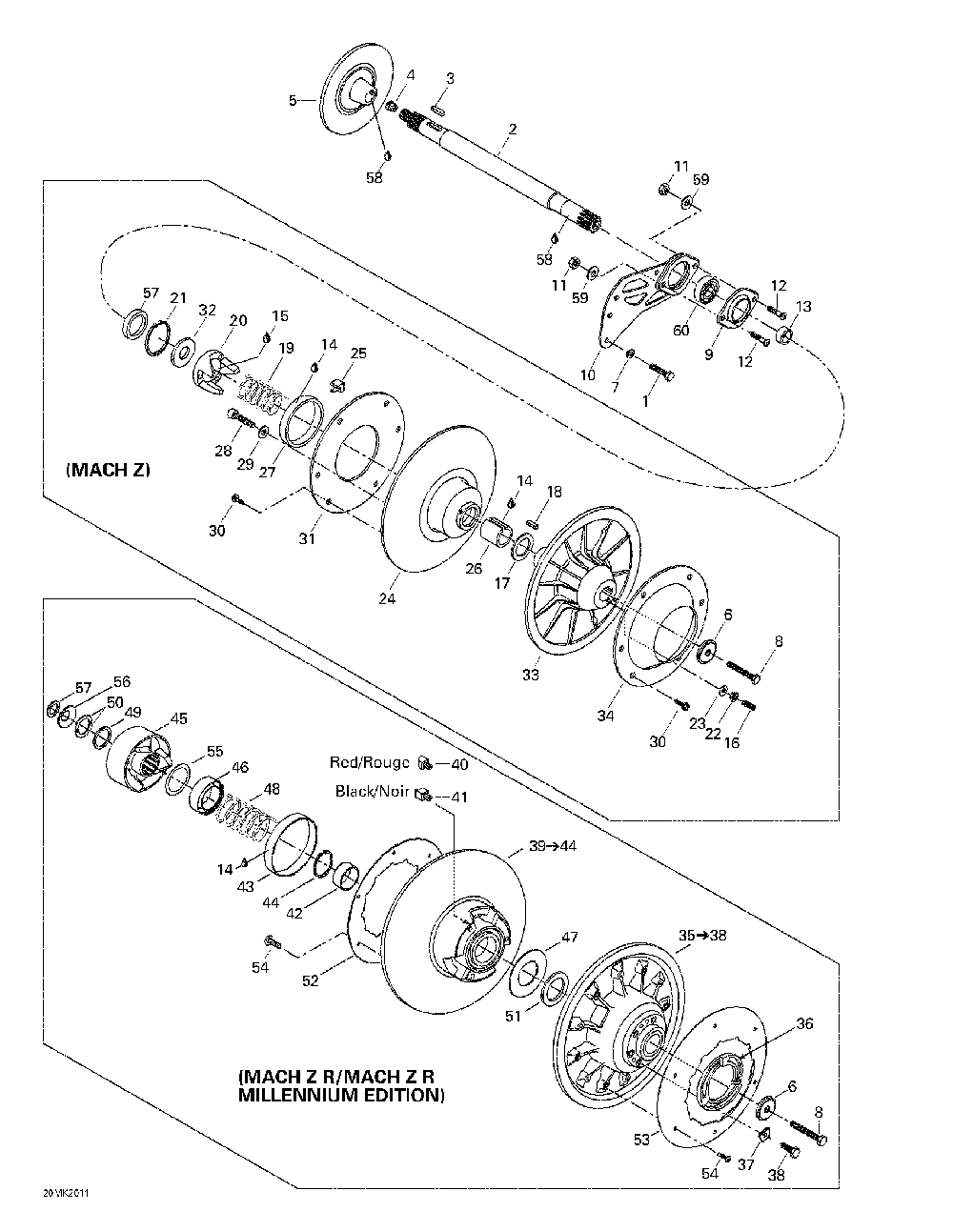

Ведомый шкив

Ski-Doo (Bombardier) Mach Z
Ski-Doo (Bombardier)
#oem кодцена
1
207161844
Винт
2
501026300
Вал
3
507021300
Шпонка
4
414784800
Bouchon Liege *cork
5
507032456
Диск торм
6
517302322
Шайба
7
234161471
Шайба
8
207087544
Винт
9
501026900
Фланец
10
080039300
Втулка
11
232581414
Гайка с тефлоном
12
205483046
Screw-socket Bn.hd.iso.7380
13
504149100
Втулка
14
413703100
Смазка Loctite 609
16
206263044
Screw-set Socket Din.913 Mach Z.
17
504141900
Rondelle Appuie*washer-thrust Mach Z.
18
414820800
Clavette *key Mach Z.
19
414558900
Ressort Rappel *spring-release Mach Z.
20
417126387
Came Usine *cam-mach. Mach Z.
21
371903100
Circlip *circlip Mach Z.
22
232061414
Nut-hexagonal Din.934 Mach Z.
23
420245370
Rondelle *washer Mach Z.
24
417126486
Flasque Coul.as*flange-slid.as Mach Z.
25
414918000
Glissiere Came *shoe-cam Slid. Mach Z.
26
415011200
Douille *bushing Mach Z.
27
860423000
Ens.cousi.garl.*kit-bus.garlock Includes 27 - 28. Mach Z.
28
205451286
Screw-socket Bn.hd.gm6174 Mach Z.
29
399910000
Washer-flat Mach Z.
30
210251180
Screw-forming Hex.hd.fl.gm6174m Mach Z.
31
504142100
Cerceau *ring Mach Z.
32
504141800
Rondelle *washer Mach Z.
33
417126477
Flasque Fixe Us*flange-fix.mach Mach Z.
34
504142000
Coupole *cup Mach Z.
35
417126414
Flasque Fixe As*flange-fix.ass. Includes 35 - 38. Mach Z R. Mach Z R Millennium Edition.
36
415005800
Bague Ajustem. *ring-adjust. Mach Z R. Mach Z R Millennium Edition.
37
415005900
Cale De Reglage*shim-adjust. Mach Z R. Mach Z R Millennium Edition.
38
207162544
Screw-hex.cap Din.933 Mach Z R. Mach Z R Millennium Edition.
207162244
Screw-hex.cap Din.933 Mach Z R. Mach Z R Millennium Edition.
39
417126318
Flasque Coul.as*flange-slid.as Includes 39 - 44. Mach Z R. Mach Z R Millennium Edition.
40
417126373
Gliss.came Arr.*shoe-cam Slide Rear Mach Z R. Mach Z R Millennium Edition.
41
417126374
Gliss. Came Av.*shoe-cam Slide Front Mach Z R. Mach Z R Millennium Edition.
43
417126902
Coussinet *coussinet Mach Z R. Mach Z R Millennium Edition.
44
371911200
Anneau Retenue *circlip Mach Z R. Mach Z R Millennium Edition.
45
417126385
Came Ass. *cam-ass. Mach Z R. Mach Z R Millennium Edition.
46
417126381
Protecteur *guard Mach Z R. Mach Z R Millennium Edition.
47
504099600
Rondelle Butee *washer-stopper Mach Z R. Mach Z R Millennium Edition.
48
414978300
Ressort Rappel *spring-release Mach Z R. Mach Z R Millennium Edition.
49
417126375
Entretoise *spacer Mach Z R. Mach Z R Millennium Edition.
50
371911000
Demi-cle *key-half Mach Z R. Mach Z R Millennium Edition.
51
504112300
Cale Epaisseur *shim Mach Z R. Mach Z R Millennium Edition.
52
417126698
Couvercle *cover Mach Z R. Mach Z R Millennium Edition.
53
504151831
Couv.aerodynam.*cover-aerodyn. Mach Z R. Mach Z R Millennium Edition.
54
732600032
Screw-forming Torx Plus Gm6174m Mach Z R. Mach Z R Millennium Edition.
55
417126322
Butee Pivotante*swivel-abutment Mach Z R. Mach Z R Millennium Edition.
56
417300055
Protecteur *protector Mach Z R. Mach Z R Millennium Edition.
57
417300054
Entretoise *spacer Mach Z R. Mach Z R Millennium Edition.
417126302
Spacer Mach Z.
59
234081410
Шайба
60
405408200
Подшипник
57
417300265
Entretoise *spacer Mach Z R. Mach Z R Millennium Edition.
