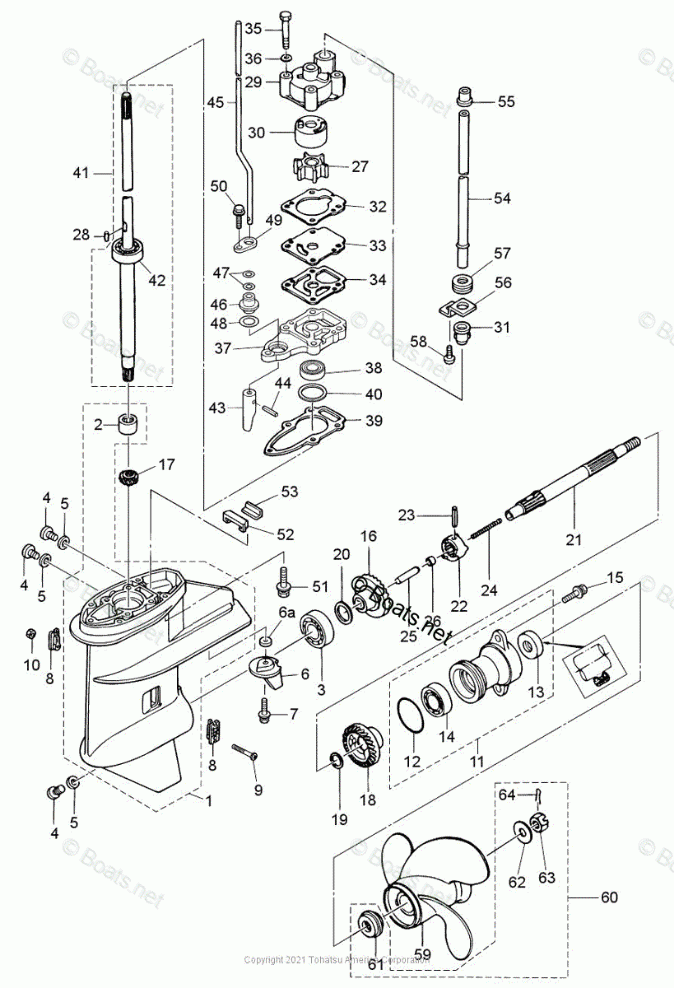

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Tohatsu MFS9.8B
Tohatsu
#oem кодцена
10-4
332600052M
OIL PLUG (8 X 1.25)
10-53
3V1600420M
WATER SEAL PLATE
10-57
3V1652040M
RUBBER MOUNT
10-56
3V1652030M
LOCK PLATE
10-54
3V1651100M
WATER PIPE "L"
10-54
3V1651000M
WATER PIPE "S"
10-24
3V1642210M
SPRING, CLUTCH
10-6
3V1602170M
TRIM TAB
10-52
3V1600410M
WATER SEAL RUBBER
10-45
3V1660120M
CAM ROD S
10-26
3B2642220M
SPRING HOLDER
10-22
3B2642150M
CLUTCH
10-40
3B2640230M
GAP LINER KIT *{/*USE 1- 3B2640810M AND 3-3B2640820M TO MAKE KIT*/}*
10-8
3AA602060M
WATER STRAINER
10-49
369660330M
STOPPER
10-43
369660110M
CLUTCH CAM
10-55
3V1652060M
SEAL UPPER, WATER PIPE
10-45
3V1660130M
CAM ROD L
10-62
369641240M
WASHER, PROP NUT
10-16
3B2640101M
BEVEL GEAR A (FORWARD)
10-40
3B2640820M
SHIM *{/*USE 3B2640810M AND 3B2640820M TO MAKE 3B2640230M KIT*/}*
10-2
3WB602110M
NEEDLE BEARING
10-41
3V1643062M
DRIVE SHAFT "S"
10-61
3UB642310M
THRUST HOLDER (F8-9.8B)
10-18
3B2640301M
BEVEL GEAR C (REVERSE)
10-17
3B2640201M
BEVEL GEAR B (PINION)
10-46
3UA660310M
CAM ROD BUSHING
10-58
9215030510M
SCREW (10 MULTIPLE)
10-5
332600061M
GASKET (10 MULTIPLE)
10-1
3AAQ600001
GEAR CASE ASSY (AMB)
10-45
3V1660140M
CAM ROD UL
10-54
3V1651200M
WATER PIPE "UL"
10-42
960106301M
BEARING
10-3
960106204M
BEARING
10-64
9515030318M
SPLIT PIN (10 MULTIPLE)
10-25
369642230M
PUSH ROD
10-63
369641210M
PROP NUT
10-48
332660320M
O-RING
10-32
3B2650182M
GASKET
10-59
3B2B645131
PROP 8 & 9.8 HP (8.5 DIA X 6.5 PITCH)-NLA *{/*NO LONGER AVAILABLE-USE 3B2B645140*/}*
10-34
3B2650292M
GASKET
10-33
3B2650250M
GUIDE PLATE
10-28
3B2650220M
KEY
10-27
3B2650211M
IMPELLER (8/9.8)
10-39
3B2650201M
GASKET, WATER PUMP CASE LOWER
10-29
3B2650160M
PUMP CASE UPPER
10-59
3B2B645151
PROP 8 & 9.8 HP (8.5 DIA. X 8.0 PITCH)
10-30
3B2650110M
LINER PUMP CASE
10-47
369660211M
O-RING A
10-20
369640120M
SHIM KIT
10-13
369601110M
OIL SEAL, PROPELLER SHAFT
10-12
345650150M
O-RING
10-6A
338602182M
ANODE
10-59
3B2B645140
PROP 8 & 9.8 HP (8.5 DIA X 7 PITCH), BLACK
10-59
3B2B645170
PROP 8 & 9.8 HP (8.5 DIA X 9.0 PITCH), BLACK
10-19
369640320M
WASHER,BEVEL GEAR C
10-44
9514070310M
SPRING PIN (10 MULTIPLE)
10-31
331650140M
GROMMET, WATER PIPE 8/9.8
10-23
301642170M
PIN CLUTCH
10-14
960106004M
BEARING
10-36
9401E30600M
WASHER (10 MULTIPLE)
10-35
9161E30650M
BOLT
10-38
309601110M
OIL SEAL
10-10
9304030400M
NYLON NUT (10 MULTIPLE)
10-59
3B2B645191
PROP 8 & 9.8 HP (8.5 DIA X 9.5 PITCH)-NO LONGER AVAILABLE *{/*NO LONGER AVAILABLE*/}*
10-9
9215030430M
SCREW (10 MULTIPLE)
10-50
9101E35625M
BOLT & WASHER (10 MULTIPLE)
10-7
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-15
9101E35620M
BOLT & WASHER (10 MULTIPLE)
10-51
3V2600010M
BOLT, 6-35 PRECOATED
10-21
3V1642111M
PROPELLER SHAFT (12 SPLINE)
10-11
3B2Q601001
PROP SHAFT HOUSING ASSY.
10-60
3UB873260M
PROP HDWR KIT , F8B2/9.8B
