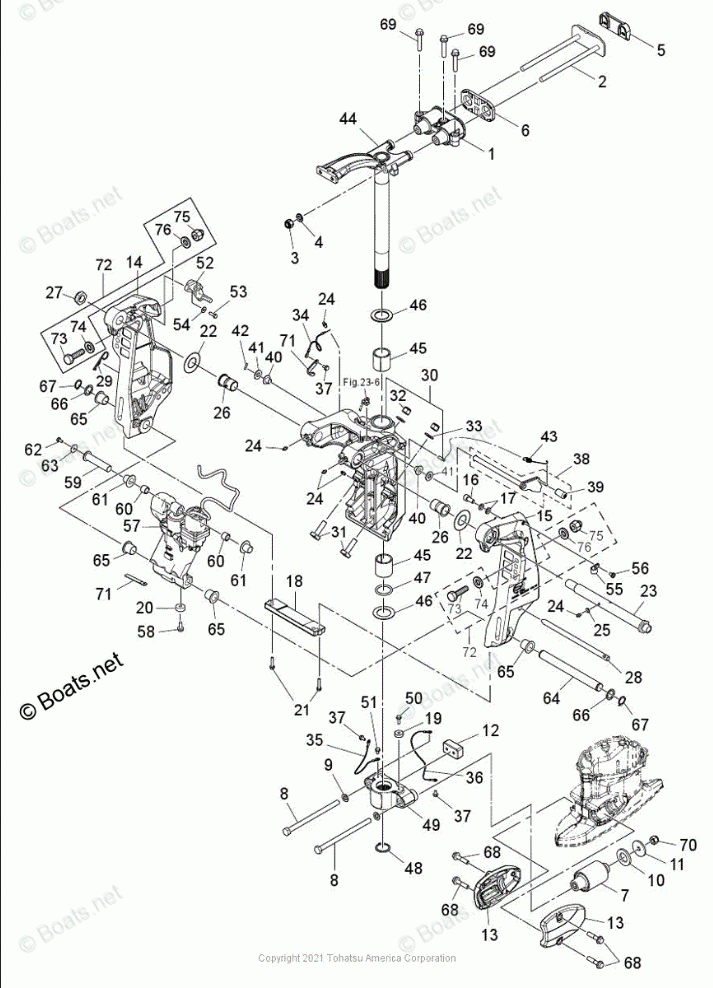

BRACKET Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS115A (2021)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

BRACKET

Tohatsu MFS115A

BRACKET

#

oem код

название

цена

12-19

ANODE

ANODE

12-11

WASHER 12.5-46-4

WASHER 12.5-46-4

12-34

GROUND

GROUND

12-35

GROUND

GROUND

12-23

SWIVEL BRACKET SHAFT ASSY

SWIVEL BRACKET SHAFT ASSY

12-69

BOLT M10-55-P1.25

BOLT M10-55-P1.25

12-6

DAMPER (UPPER)

DAMPER (UPPER)

12-10

DAMPER

DAMPER

12-12

DAMPER (LOWER)

DAMPER (LOWER)

12-5

DAMPER (UPPER)

DAMPER (UPPER)

12-45

BUSHING

BUSHING

12-2

LOCK PLATE W/ BOLT

LOCK PLATE W/ BOLT

12-8

BOLT M12-195 P1.25

BOLT M12-195 P1.25

12-7

RUBBER MOUNT (LOWER)

RUBBER MOUNT (LOWER)

12-1

RUBBER MOUNT (UPPER)

RUBBER MOUNT (UPPER)

12-68

BOLT M10-45-P1.25

BOLT M10-45-P1.25

12-76

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-22

WASHER

WASHER

12-47

O-RING

O-RING

12-46

THRUST PLATE (UPPER)

THRUST PLATE (UPPER)

12-16

BOLT

BOLT

12-15

CLAMP BRACKET (PTT-L)

CLAMP BRACKET (PTT-L)

12-48

C-RING

C-RING

12-15

CLAMP BRACKET (PTT-L)

CLAMP BRACKET (PTT-L)

12-14

CLAMP BRACKET (PTT-R)

CLAMP BRACKET (PTT-R)

12-30

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

12-44

STEERING SHAFT ASSY

STEERING SHAFT ASSY

12-49

MOUNT BRACKET

MOUNT BRACKET

12-13

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

12-14

CLAMP BRACKET (PTT-R)

CLAMP BRACKET (PTT-R)

12-38

TILT STOPPER ASSY

TILT STOPPER ASSY

12-30

SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

12-44

STEERING SHAFT ASSY

STEERING SHAFT ASSY

12-49

MOUNT BRACKET

MOUNT BRACKET

12-13

MOUNT HOLDING PLATE (LOWER)

MOUNT HOLDING PLATE (LOWER)

12-57

PTT ASSY

PTT ASSY

12-31

BOLT

BOLT

12-59

CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

12-40

COLLAR 12.2-26-15.5

COLLAR 12.2-26-15.5

12-67

C-RING

C-RING

12-39

TILT STOPPER GRIP

TILT STOPPER GRIP

12-63

WASHER, RACHET

WASHER, RACHET

12-17

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-36

GROUND WIRE

GROUND WIRE

12-42

SPRING PIN (10 MULTIPLE)

SPRING PIN (10 MULTIPLE)

12-71

CLAMP

CLAMP

12-55

CORD CLAMP A

CORD CLAMP A

12-24

GREASE NIPPLE

GREASE NIPPLE

12-51

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-37

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-25

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-74

WASHER, 13-34-3

WASHER, 13-34-3

12-50

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-58

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

12-21

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-53

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-62

BOLT (10 MULTIPLE)

BOLT (10 MULTIPLE)

12-18

ANODE

ANODE

12-20

ANODE, ZINC (ROUND)

ANODE, ZINC (ROUND)

12-27

BRACKET NUT

BRACKET NUT

12-54

WASHER, 6-16-1.5

WASHER, 6-16-1.5

12-73

BOLT, STERN BRACKET

BOLT, STERN BRACKET

12-52

TRIM SENDER (2-WIRE) *{/*D70-115 w/2-wire meter*/}*

TRIM SENDER (2-WIRE) *{/*D70-115 w/2-wire meter*/}*

12-29

RETAINER

RETAINER

12-65

BUSHING 22-25.4-23.5

BUSHING 22-25.4-23.5

12-64

CYLINDER PIN LOWER

CYLINDER PIN LOWER

12-61

BUSHING 18-20-20.5

BUSHING 18-20-20.5

12-43

SPRING, TILT STOPPER

SPRING, TILT STOPPER

12-26

BUSHING, 25.6-28.6-40

BUSHING, 25.6-28.6-40

12-28

THRUST ROD NLA *{/*PART IS NO LONGER AVAILABLE*/}*

THRUST ROD NLA *{/*PART IS NO LONGER AVAILABLE*/}*

12-60

BUSHING 18-24-19

BUSHING 18-24-19

12-66

WASHER

WASHER

12-75

NYLON NUT

NYLON NUT

12-41

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-33

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-9

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-4

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

12-56

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

12-32

NYLON NUT

NYLON NUT

12-3

NYLON NUT

NYLON NUT

12-70

NYLON NUT

NYLON NUT

12-72

RIGGING BOLT SET

RIGGING BOLT SET
