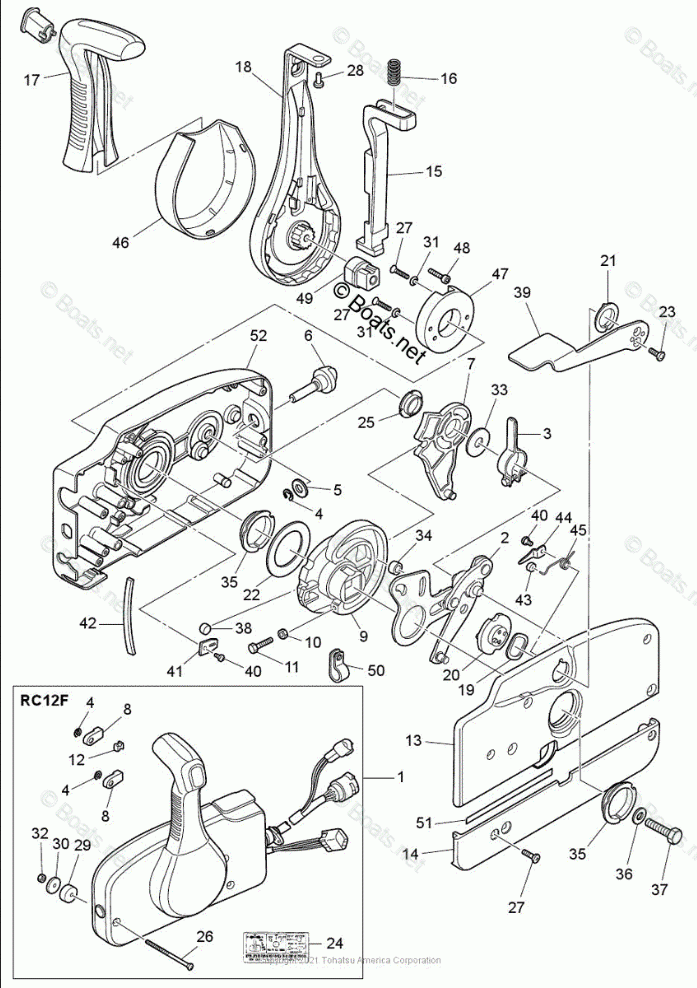

COMPONENT PARTS OF REMOTE CONTROL

Tohatsu MFS115A
Tohatsu
#oem кодцена
18-10
9301030500M
NUT (10 MULTIPLE)
18-28
3VL843750M
SCREW
18-4
9453030600M
E-RING (10 MULTIPLE)
18-1
3U2B845000
RC BOX, RC12F, ALL TLDI/MFS40/50A 2018
18-50
3U2069730M
CLAMP
18-46
3U2631070M
COVER
18-47
3U2635060M
HOLDER
18-15
3U2844010M
NEUTRAL LOCK ARM
18-37
3U2844420M
BOLT
18-39
3U2B843120
FREE THROTTLE LEVER
18-52
3U2B844400
FRONT HOUSING
18-27
3VK843750M
SCREW (10 MULTIPLE )
18-51
3U2721870M
CAUTION DECAL
18-40
9215030406M
SCREW (10 MULTIPLE)
18-49
3U2773670M
JOINT
18-18
3U2843430M
CONTROL LEVER
18-31
3U2843710M
WASHER (10 MULTIPLE)
18-26
3U2843750M
SCREW
18-17
3U2844040M
GRIP
18-6
3U2844270M
ADJUSTING SCREW
18-35
3U2844310M
BUSHING
18-48
3U2849170M
BOLT
18-14
3U2B843660
REAR PANEL
18-13
3U2B844410
REAR HOUSING
18-23
9216030512M
SCREW (10 MULTIPLE)
18-11
9101030525M
BOLT (10 MULTIPLE)
18-32
9301030600M
NUT (10 MULTIPLE)
18-12
3A3843760M
GROMMET
18-36
9401030800M
WASHER (10 MULTIPLE)
18-30
353843710M
WASHER
18-38
353843880M
ROLLER, THROTTLE DRUM
18-5
353843940M
WASHER
18-8
3A3833142M
TERMINAL EYE
18-42
3A3843070M
SPRING
18-9
3A3843642M
DRIVE GEAR
18-2
3A3843651M
THROTTLE ARM
18-19
3A3843680M
WAVE WASHER
18-29
3A3843740M
SPACER
18-7
3A3843810M
SHIFT GEAR ASSY
18-21
3A3844350M
BUSHING
18-33
3A3843830M
WASHER (10 MULTIPLE)
18-20
3A3843910M
DRUM, FREE ACCELERATOR
18-16
3A3844030M
SPRING
18-34
3A3844210M
ROLLER
18-22
3A3844220M
THRUST PLATE
18-41
3A3844230M
RETAINER
18-43
3A3844240M
ROLLER, FREE ACCELERATOR
18-45
3A3844250M
SPRING, FREE ACCELERATOR
18-44
3A3844260M
RETAINER
18-3
3A3844280M
ARM
18-25
3A3844320M
BUSHING B
18-24
3VK843390M
INSTRUCTION DECAL
