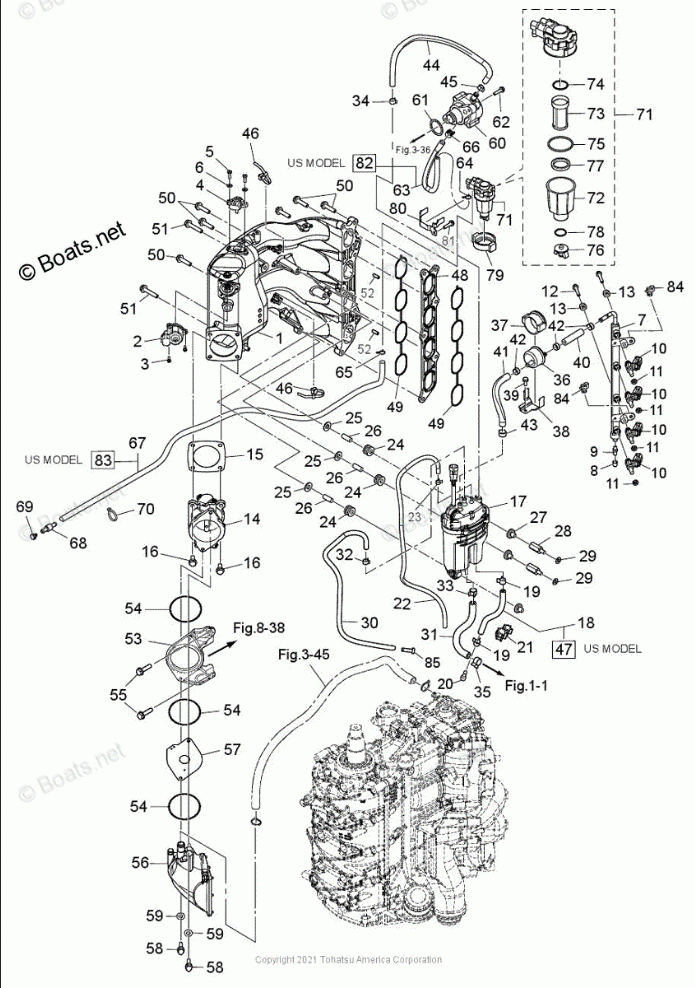

INTAKE MANIFOLD & FUEL SYSTEM Каталог оригинальных запчастей для лодочных моторов Tohatsu MFS115A (2021)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Tohatsu
2021
MFS115A
INTAKE MANIFOLD & FUEL SYSTEM
INTAKE MANIFOLD & FUEL SYSTEM

INTAKE MANIFOLD & FUEL SYSTEM

Tohatsu MFS115A

INTAKE MANIFOLD & FUEL SYSTEM

#

oem код

название

цена

5-36

FUEL FILTER, HIGH PRESSURE

FUEL FILTER, HIGH PRESSURE

5-49

O-RING

O-RING

5-38

PLATE

PLATE

5-67

FUEL HOSE

FUEL HOSE

5-63

FUEL HOSE

FUEL HOSE

5-40

LOW PERMEATION HOSE

LOW PERMEATION HOSE

5-44

FUEL HOSE W/PROTECTOR

FUEL HOSE W/PROTECTOR

5-47

LOW PERMEATION HOSE

LOW PERMEATION HOSE

5-1

INTAKE MANIFOLD

INTAKE MANIFOLD

5-58

BOLT 35MM

BOLT 35MM

5-53

HOLDER

HOLDER

5-26

PIN 8-22

PIN 8-22

5-23

CLIP 7.8

CLIP 7.8

5-13

COLLAR

COLLAR

5-33

CLIP 12.5

CLIP 12.5

5-34

CLIP 12.5

CLIP 12.5

5-32

CLIP 12.5

CLIP 12.5

5-78

SEAL

SEAL

5-76

DRAIN VALVE

DRAIN VALVE

5-56

INTAKE SILENCER ASSY

INTAKE SILENCER ASSY

5-57

RESTRICTOR (MFS115A)

RESTRICTOR (MFS115A)

5-75

O-RING

O-RING

5-15

GASKET

GASKET

5-30

WATER HOSE L=650 5-7

WATER HOSE L=650 5-7

5-7

FUEL RAIL

FUEL RAIL

5-46

BAND

BAND

5-31

WATER HOSE

WATER HOSE

5-10

FUEL INJECTOR ASSY

FUEL INJECTOR ASSY

5-2

ISC VALVE

ISC VALVE

5-17

VAPORATOR SEPERATOR ASSY

VAPORATOR SEPERATOR ASSY

5-14

THROTTLE BODY ASSY

THROTTLE BODY ASSY

5-20

PLUG

PLUG

5-54

O-RING

O-RING

5-28

SPACER

SPACER

5-44

FUEL HOSE W/ PROTECTOR

FUEL HOSE W/ PROTECTOR

5-82

LOW PERMEATION HOSE

LOW PERMEATION HOSE

5-83

LOW PERMEATION HOSE

LOW PERMEATION HOSE

5-60

FUEL PUMP ASSY

FUEL PUMP ASSY

5-48

INSULATOR

INSULATOR

5-61

O-RING

O-RING

5-72

CUP, MFS9.9,15,20E

CUP, MFS9.9,15,20E

5-77

FLOAT

FLOAT

5-73

FILTER

FILTER

5-25

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-84

BAND

BAND

5-35

CLIP

CLIP

5-50

BOLT & WASHER

BOLT & WASHER

5-81

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-19

CLIP, @ 9.4

CLIP, @ 9.4

5-64

CLIP, FUEL PIPE

CLIP, FUEL PIPE

5-65

CLIP, FUEL PIPE

CLIP, FUEL PIPE

5-29

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-3

SCREW (10 MULTIPLE)

SCREW (10 MULTIPLE)

5-59

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-6

WASHER (10 MULTIPLE)

WASHER (10 MULTIPLE)

5-12

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-62

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-55

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-39

BOLT & WASHER (10 MULTIPLE)

BOLT & WASHER (10 MULTIPLE)

5-16

BOLT

BOLT

5-74

O-RING B

O-RING B

5-70

LEAD WIRE BAND, 104

LEAD WIRE BAND, 104

5-5

SCREW ( 10 MULTIPLE)

SCREW ( 10 MULTIPLE)

5-68

FUEL HOSE NIPPLE

FUEL HOSE NIPPLE

5-66

CLIP

CLIP

5-21

CLAMP (NOT AVAILABLE)

CLAMP (NOT AVAILABLE)

5-69

CAP, FUEL HOSE NIPPLE

CAP, FUEL HOSE NIPPLE

5-27

BUSHING

BUSHING

5-52

KNOCK

KNOCK

5-43

CLAMP, 21/32" (17.5mm)

CLAMP, 21/32" (17.5mm)

5-85

WATER NIPPLE

WATER NIPPLE

5-37

RUBBER MOUNT, FUEL FILTER

RUBBER MOUNT, FUEL FILTER

5-45

CLIP

CLIP

5-41

LOW PERMEATION HOSE

LOW PERMEATION HOSE

5-42

CLAMP

CLAMP

5-8

CAP, VALVE

CAP, VALVE

5-9

VALVE ASSY

VALVE ASSY

5-11

SEAL RING

SEAL RING

5-4

MAP SENSOR

MAP SENSOR

5-80

PLATE

PLATE

5-79

FUEL FILTER HOLDER

FUEL FILTER HOLDER

5-71

FUEL FILTER ASSY

FUEL FILTER ASSY

5-24

RUBBER MOUNT

RUBBER MOUNT

5-51

BOLT

BOLT
