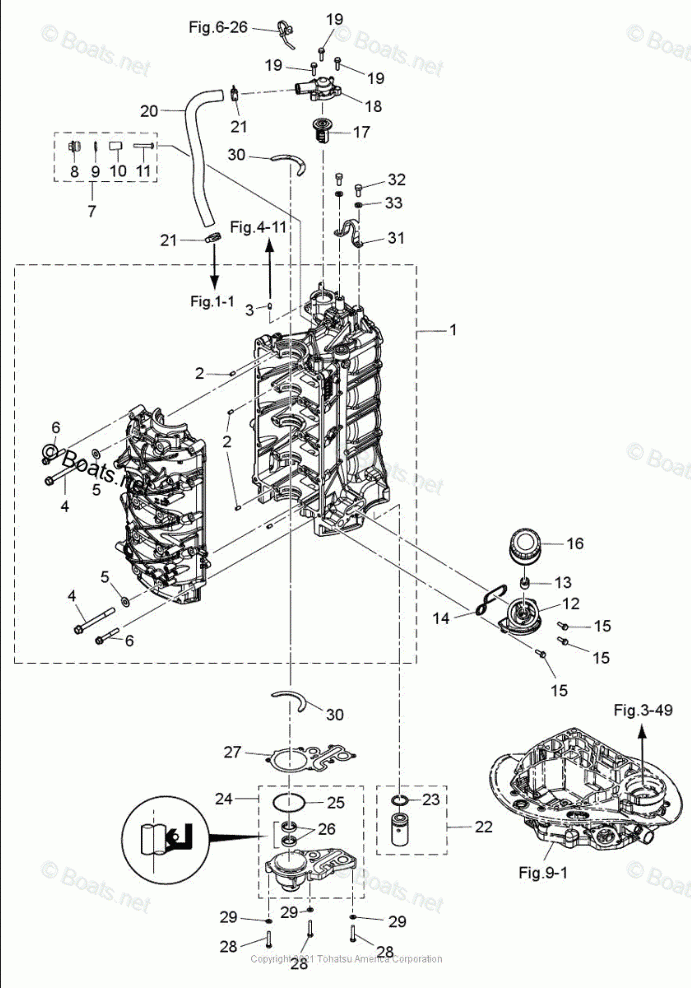

CYLINDER & CRANK CASE

Tohatsu MFS115A
Tohatsu
#oem кодцена
1-31
3C7B015132
HANGER NLA *{/* PART IS NO LONGER AVAILABLE*/}*
1-30
3SS001150M
THRUST PLATE
1-24
3SSB012900
CRANKCASE HEAD ASSY
1-1
3SSB011000
CYL BLOCK & CRANKCASE ASSY
1-20
3SS652100M
COOLING HOSE
1-21
3SS351430M
CLIP
1-12
3SS076370M
OIL FILTER BRACKET
1-14
3SS076320M
O-RING
1-23
3SS076310M
O-RING
1-22
3SS076200M
PLUNGER ASSY
1-26
3SS012150M
OIL SEAL
1-27
3SS012140M
CRANKCASE HEAD GASKET
1-6
3SS011140M
BOLT M8-55-P1.25
1-4
3SS011130M
BOLT M10-105-P1.25
1-18
3SS010310M
THERMOSTAT CAP
1-17
3SS010300M
THERMOSTAT
1-28
3B2610180M
BOLT 35MM
1-16
3R0076150M
OIL FILTER, MFS9.9-115 HP 4-STROKE (12 PER CASE)
1-25
151000530M
O-RING
1-33
9413220800M
SPRING WASHER
1-32
9101140820M
BOLT
1-13
3H8076360M
BOLT-OIL FILTER MOUNT
1-11
9215030530M
SCREW (10 MULTIPLE)
1-9
3T5100460M
O-RING
1-10
3P0602180M
ANODE
1-8
3P0011430M
ANODE PLUG
1-29
9401E30600M
WASHER (10 MULTIPLE)
1-3
3AB011110M
DOWEL PIN, 6-12
1-2
345011110M
DOWEL PIN 6-12
1-5
9401E31000M
WASHER (10 MULTIPLE)
1-19
9101E35625M
BOLT & WASHER (10 MULTIPLE)
1-15
9101E35620M
BOLT & WASHER (10 MULTIPLE)
1-7
3KM011420M
ANODE PLUG ASSY
