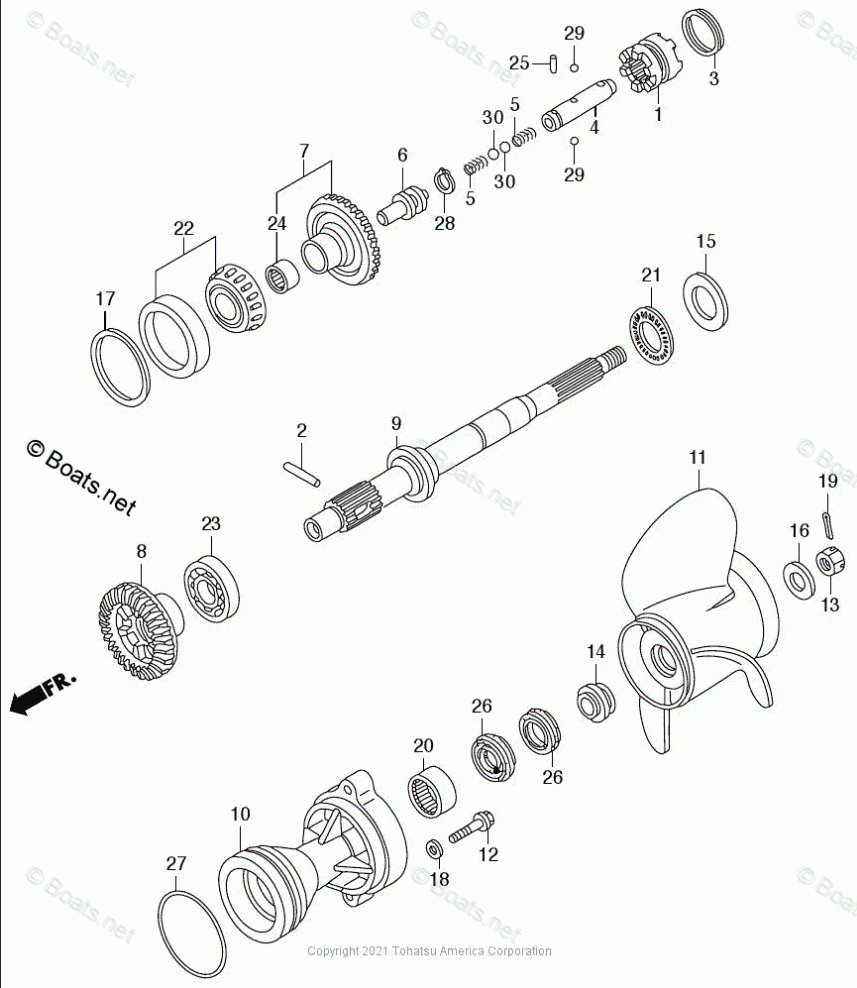

CIRCLIP, EX 14

SEAL, PROPELLER SHAFT

GEAR, BEVEL (FORWARD 30T)

GEAR, BEVEL REVERSE (30T)

SHAFT, PROPELLER, BFT115/150A

HOUSING, PROP SHAFT (BFT115/150)

BOLT, FLANGE 10 X 40

BEARING, TAPER (50X90X28)

BEARING, RADIAL BALL, 50X90X20

SS PROP, 15.25" D X 15" P, BFT115-250 *{/*15.25 DIAMETER, AVAILABLE IN 14-28 IN. PITCH, 3 BLADES, RIGHT- AND LEFT-HAND ROTATION, MODERATELY HIGH RAKE AND FULL TIP CUP FOR EXCELLENT LIFT AND GRIP MOST

SPRING, SHIFT

SS PROP, 15.25" D X 17" P, BFT115-250 *{/*15.25 DIAMETER, AVAILABLE IN 14-28 IN. PITCH, 3 BLADES, RIGHT- AND LEFT-HAND ROTATION, MODERATELY HIGH RAKE AND FULL TIP CUP FOR EXCELLENT LIFT AND GRIP MOST

SS PROP, 15.25" D X 19" P, BFT115-250 *{/*15.25 DIAMETER, AVAILABLE IN 14-28 IN. PITCH, 3 BLADES, RIGHT- AND LEFT-HAND ROTATION, MODERATELY HIGH RAKE AND FULL TIP CUP FOR EXCELLENT LIFT AND GRIP MOST

SS PROP, 15.25" D X 21" P, BFT115-250 *{/*15.25 DIAMETER, AVAILABLE IN 14-28 IN. PITCH, 3 BLADES, RIGHT- AND LEFT-HAND ROTATION, MODERATELY HIGH RAKE AND FULL TIP CUP FOR EXCELLENT LIFT AND GRIP MOST

PROP, (NOT AVAILABLE)

PROP, RUBEX ALUM E3, 15.0 DIA. X 15 PITCH, 3-BLADE (SEE NOTE) *{/*FITS BFT115-250 MODELS-NEED (1) 9999RUBH107M HUB KIT*/}*

PROP, RUBEX ALUM E3, 14.8 DIA. X 17 PITCH, 3-BLADE (SEE NOTE) *{/*FITS BFT115-250 MODELS-NEED (1) 9999RUBH107M HUB KIT*/}*

PROP, RUBEX ALUM E3, 14.5 DIA. X 19 PITCH, 3-BLADE (SEE NOTE) *{/*FITS BFT115-250 MODELS-NEED (1) 9999RUBH107M HUB KIT*/}*

PROP, RUBEX ALUM E3, 14.3 DIA. X 21 PITCH, 3-BLADE (SEE NOTE) *{/*FITS BFT115-250 MODELS-NEED (1) 9999RUBH107M HUB KIT*/}*

PLATE, SHIFT

SLIDER, SHIFT

BALL, STEEL 7

PIN, SPLIT 4.0

BALL, STEEL 9

BEARING, NEEDLE 30X37X26

THRUST BEARING

WASHER, PLAIN, 10MM

PIN, SHIFTER, 8X47

RING, CROSS PIN

NUT, CASTLE 18MM

ROLLER, 3X12.8

SHIFTER, CLUTCH

WASHER, THRUST BEARING

BEARING, NEEDLE (25X32X26)

WASHER, PROP THRUST

SHIM A, BEVEL (0.10)

SHIM B, BEVEL (0.15)

SHIM C, BEVEL (0.30)

SHIM D, BEVEL (0.50)

O-RING, 105 X 3.1

WASHER, PROP THRUST
